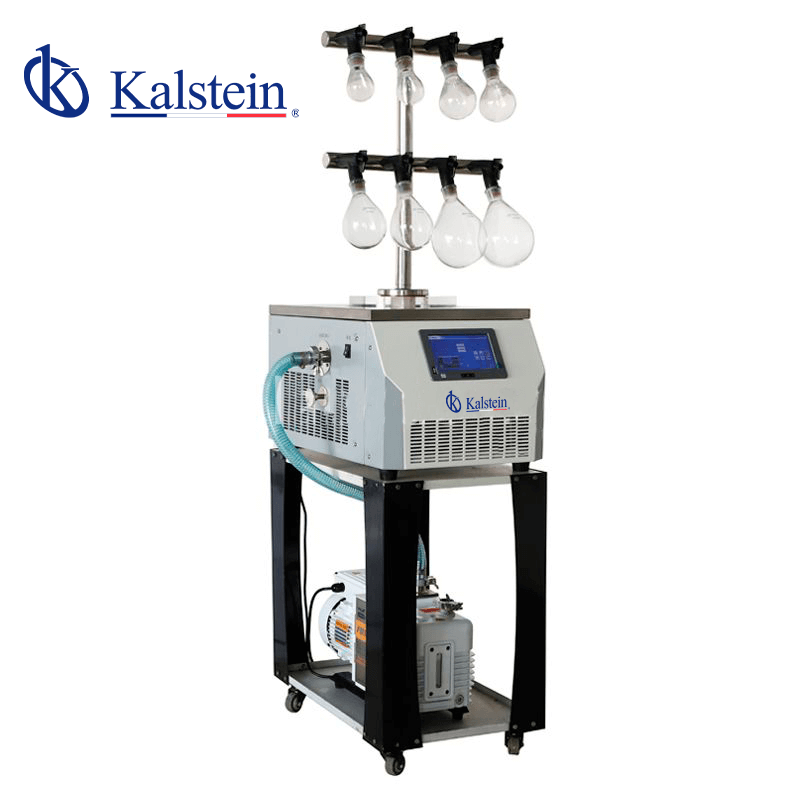

Common Errors and Troubleshooting by Symptoms for the YR05189-1 Freeze Dryer
The YR05189-1 freeze dryer is a pivotal piece of equipment in various laboratory settings, facilitating the preservation of biological samples, pharmaceuticals, and food products through advanced lyophilization techniques. However, operators may sometimes encounter errors or operational issues. This article focuses on identifying common symptoms, probable causes, and practical solutions for troubleshooting the YR05189-1.
Understanding the YR05189-1 Freeze Dryer
Before delving into troubleshooting, it is essential to understand the operational mechanism of the YR05189-1 freeze dryer. Utilizing vacuum freeze-drying, the device preserves samples by freezing them and subsequently removing moisture through sublimation, ensuring that the physical and chemical properties of the samples remain intact. The innovative design includes features such as a CFC-free cooling system, an LCD drying curve display, and an efficient low-noise compressor, making it suitable for a range of applications.
Technical Specifications of YR05189-1
| Specification | Details |
|---|---|
| Model | YR05189-1 |
| Condenser Capacity | 3-4kg/24h |
| Condenser Temperature | -55 ℃ (optional -80 ℃) |
| Vacuum Level | < 10 Pa |
| Sealed Rubber Valve | 24 pieces for 24 vials, customizable |
| Cooling | Air, with ambient temperature ≤25 ℃ |
| Voltage | 220 V, 50 Hz; 110 V, 50/60 Hz |
| Host Dimensions | 460*625*(370+440) mm |
| Host Weight | 41 kg |
| Power | 700W |
Troubleshooting Symptoms for the YR05189-1
Equipment Does Not Power On
If the YR05189-1 does not power on, the following could be the causes:
- Power Supply Issue: Ensure the power cord is securely connected and the outlet is functioning.
- Fuse Failure: Check for any blown fuses within the device.
- Internal Component Failure: Inspect for any visible damage or failure of internal components.
Solution: Begin by checking the power supply and connections. If the issue persists, consulting the user manual for fuse replacement instructions may be necessary, or contacting technical support for further diagnostics.
Error Code E-03
Error code E-03 typically indicates a malfunction related to the temperature sensor. Probable causes include:
- Sensor Disconnection: The temperature sensor may be loose or disconnected.
- Faulty Temperature Sensor: The sensor itself might be defective.
Solution: Check the wiring for the temperature sensor to ensure it is properly connected. If the sensor appears to be damaged, it may need to be replaced.
Inconsistent Drying Results
Inconsistent drying can lead to unacceptable sample quality. Possible reasons include:
- Improper Loading: Overloading or improper arrangement of samples can affect airflow.
- Vacuum Issues: Insufficient vacuum levels may prevent effective drying.
Solution: Ensure samples are loaded according to manufacturer guidelines, allowing for adequate airflow. Verify the vacuum level and rectify any leaks in the system.
Symptom-Cause-Solution Matrix
| Symptom | Probable Cause | Solution |
|---|---|---|
| Equipment Does Not Power On | Power Supply Issue, Fuse Failure, Internal Component Failure | Check connections, replace fuse, inspect components |
| Error Code E-03 | Sensor Disconnection, Faulty Sensor | Reconnect sensor, replace if damaged |
| Inconsistent Drying Results | Improper Loading, Vacuum Issues | Correct sample loading, verify vacuum levels |
Frequently Asked Questions
What are the common symptoms of malfunction in the YR05189-1 freeze dryer?
Common symptoms include failure to power on, error codes, and inconsistent drying results. Each symptom can be traced back to specific causes, which can be systematically diagnosed.
How do I resolve the error code E-03 on the YR05189-1?
Error code E-03 typically indicates a temperature sensor issue. To resolve this, ensure the sensor is securely connected and replace it if damaged.
What could cause inconsistent drying in the YR05189-1 freeze dryer?
Inconsistent drying may result from improper loading of samples or insufficient vacuum levels. Adjusting the sample arrangement and verifying vacuum integrity can help resolve this issue.
How often should the maintenance be performed on the YR05189-1 freeze dryer?
Routine maintenance should be performed regularly, including cleaning, checking electrical connections, and inspecting seals and valves to ensure optimal performance.
Can I use the YR05189-1 for food preservation?
Yes, the YR05189-1 is suitable for food preservation as it effectively removes moisture while maintaining the integrity of the food's chemical and biological properties.
What is the recommended sample loading procedure for the YR05189-1?
Samples should be loaded in a manner that allows for adequate airflow between vials, adhering to the manufacturer's guidelines to ensure effective drying.
Where can I find replacement parts for the YR05189-1 freeze dryer?
Replacement parts can typically be sourced from authorized distributors or directly from the manufacturer. It is recommended to consult the user manual for detailed part specifications.
