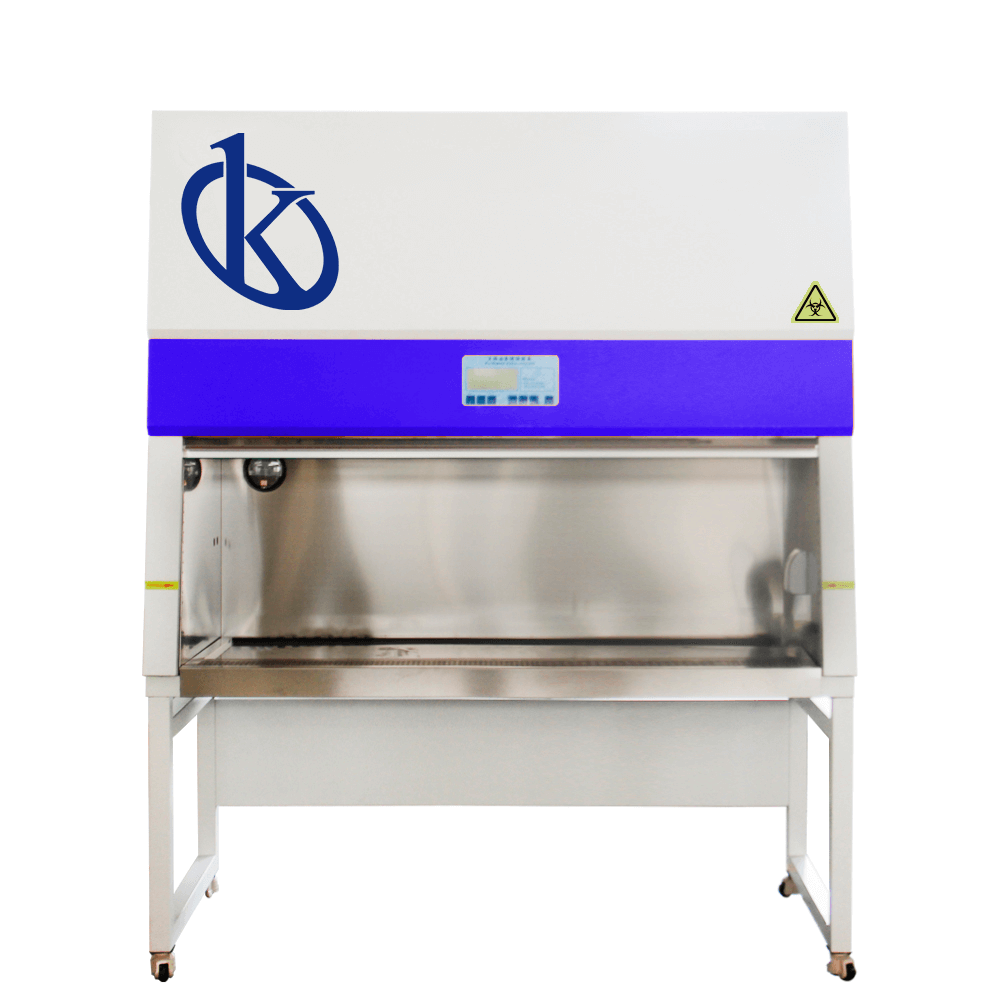

Enhancing Operational Efficiency with the YR05704 Class II A2 Biosafety Cabinet
The YR05704 Class II A2 Biosafety Cabinet is designed to provide a safe and efficient working environment for laboratory personnel. This state-of-the-art equipment ensures optimal protection against biological hazards while maintaining operational efficiency. With its advanced features, the YR05704 not only meets stringent safety standards but also enhances productivity in laboratory settings.
Product Description
The YR05704 features a unique air curtain isolation design that effectively prevents both internal and external cross-contamination. It discharges 30% of airflow to the outside while maintaining 70% internal circulation, creating a vertical laminar flow under negative pressure, eliminating the need for additional duct installations. This innovative airflow management is crucial for laboratories handling sensitive biological materials.
The cabinet includes a movable glass door that can be adjusted freely for easy access. This door can be fully closed for sterilization, with height position limit alarms to ensure safe operation. Further enhancing usability, the work area comes equipped with a waterproof power outlet and a drainage interface to provide convenience for the operator.
To control emissions contamination, a special filter is installed in the exhaust air system. The working environment is crafted from high-quality 304 stainless steel, providing a smooth, seamless surface that is easy to disinfect. This material is resistant to corrosion from various cleaning agents and disinfectants, ensuring longevity and safety.
The YR05704 is equipped with an LCD LED panel for control and features a built-in UV lamp protection device that can only be activated when the safety door is closed. Additionally, it includes a DOP detection port and an integrated differential manometer, which aids in monitoring the overall performance of the cabinet.
Designed with a 10° tilt angle, it aligns with ergonomic principles, ensuring that laboratory personnel can work comfortably without straining their bodies during prolonged use.
Technical Comparison
| Specification | YR05704 | YR05705 | YR05706 | YR05707 |
|---|---|---|---|---|
| Model | YR05704 | YR05705 | YR05706 | YR05707 |
| Cleaning Class | Class 100@≥0.5μm | Class 100@≥0.5μm | Class 100@≥0.5μm | Class 100@≥0.5μm |
| Colony Count | ≤0.5 pcs/plate·hour | ≤0.5 pcs/plate·hour | ≤0.5 pcs/plate·hour | ≤0.5 pcs/plate·hour |
| Average Wind Speed (Inside Door) | 0.38±0.025 m/s | 0.38±0.025 m/s | 0.38±0.025 m/s | 0.38±0.025 m/s |
| Noise Level | ≤65dB(A) | ≤65dB(A) | ≤65dB(A) | ≤65dB(A) |
| Power Supply | 220V/50Hz | 220V/50Hz | 220V/50Hz | 220V/50Hz |
| Maximum Power Consumption | 400W | 500W | 600W | 700W |
| Weight | 170KG | 210KG | 250KG | 270KG |
Market Price
The YR05704 Class II A2 Biosafety Cabinet is competitively priced at approximately $1600. This price point allows laboratories to invest in high-quality safety equipment without compromising on budget. The investment in a biosafety cabinet like the YR05704 is crucial for ensuring personnel safety and maintaining the integrity of sensitive experiments. The durability and efficiency of this model provide excellent value over time, making it a smart choice for laboratories of all sizes.
Frequently Asked Questions
What is a Class II A2 Biosafety Cabinet?
A Class II A2 Biosafety Cabinet is designed to provide a sterile working environment for laboratory personnel while protecting both the operator and the environment from hazardous biological materials. It uses HEPA filtration and maintains a vertical laminar airflow for optimal protection.
How does the airflow system work in the YR05704?
The YR05704 utilizes a unique air curtain design that maintains 70% of the airflow within the cabinet while discharging 30% to the outside. This configuration creates a negative pressure laminar flow, effectively preventing cross-contamination.
Is the YR05704 easy to clean and maintain?
Yes, the YR05704 is made from high-quality 304 stainless steel, which provides a seamless surface that is easy to disinfect and resistant to corrosion. Regular cleaning ensures optimal performance and safety.
What safety features are included in the YR05704?
The YR05704 includes a movable glass door, UV lamp safety protection, and a DOP detection port. These features enhance user safety and ensure compliance with biosafety standards.
Can I use the YR05704 for all types of biological materials?
The YR05704 is suitable for various biological materials, including those classified as Risk Group 1 and 2. For more hazardous materials, specially designed cabinets may be required.
What are the dimensions of the YR05704?
The YR05704 has a working area of 840×650×620 mm and a total dimension of 1000×800×2100 mm, making it compact yet efficient for laboratory use.
How do I request a quote for the YR05704?
You can easily request a quote for the YR05704 by contacting our sales team or through our online request form. We are here to assist you with your laboratory needs.
Pros and Cons
Like any laboratory equipment, the YR05704 Class II A2 Biosafety Cabinet has its advantages and disadvantages. Understanding these can help laboratories make informed decisions.
Pros
- Effective protection against biological hazards
- Innovative airflow design minimizes cross-contamination
- High-quality materials ensure durability and easy maintenance
- Convenient features like a waterproof power outlet enhance usability
- Meets rigorous safety standards for laboratory environments
Cons
- Initial investment may be high for smaller labs
- Regular maintenance is required to ensure optimal performance
- May require specialized training for effective use
Field Usage
The YR05704 Class II A2 Biosafety Cabinet is widely used in various laboratory settings, including research facilities, clinical laboratories, and pharmaceutical companies. Its robust design and reliable performance make it suitable for handling cell cultures, microbiological studies, and other sensitive applications. The cabinet's effective containment systems ensure that contaminants do not compromise experimental integrity or personnel safety.
Recommendations
For laboratories seeking a reliable and efficient biosafety cabinet, the YR05704 Class II A2 is an outstanding choice. Its combination of innovative features, ergonomic design, and high-quality construction makes it ideal for various applications. It is recommended to invest in regular training for personnel to ensure proper use and maintenance of the cabinet, maximizing its lifespan and effectiveness.
