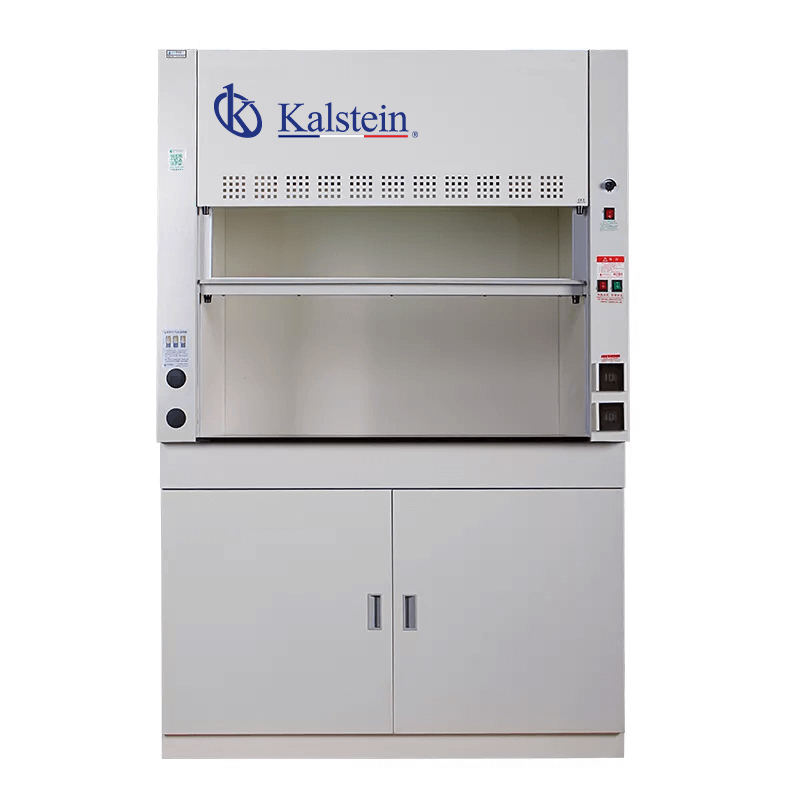

Epoxy Coated Steel Basic Chemical Laboratory Extractor Hood YR05813: A Comprehensive Guide
The Epoxy Coated Steel Basic Chemical Laboratory Extractor Hood YR05813 is a cutting-edge piece of laboratory equipment designed to enhance the safety and efficiency of chemical handling. This extractor hood features a robust construction, advanced ventilation systems, and user-friendly operations, making it an ideal choice for various laboratory applications.
Product Description
The YR05813 model is crafted from high-quality materials, ensuring durability and resistance to harsh chemicals. Key features include:
- Front panel
- Liner and guide deflectors made of 5 mm thick melamine board
- Window made of 5 mm thick tempered glass
- PP cup specially designed for laboratory use
- Built-in drain tube
- Lower side panel
- Lower back panel
- Integrated axial fan, air collector, and corrosion-resistant hose
- Wind regulator
- Upper side panel (1.2 mm thick galvanized steel plate, exterior coated with epoxy)
- Built-in LED tube
- Fan and lamp switch
- Multi-functional splash-proof socket
- Solid corrosion-proof core measuring 12.7 mm, physical and chemical board, table
- Door frames and door panels
Technical Specifications
| Model | YR05813 | YR05814 | YR05815 | YR05816 |
|---|---|---|---|---|
| External Size (W x D x H) (mm) | 800 x 650 x 1900 | 1000 x 650 x 1900 | 1200 x 650 x 1900 | 1500 x 650 x 1900 |
| Internal Size (W x D x H) (mm) | 600 x 600 x 750 | 800 x 600 x 750 | 1000 x 600 x 750 | 1300 x 600 x 750 |
| Working Surface Height | 800 mm | |||
| Maximum Window Opening | 750 mm | |||
| Air Speed/Air Exhaust Volume | 0.4-0.6 m/s, 800-1000 m³/h | |||
| Noise Level | ≤60dB | |||
| LED Lamp | 10W x 1 | |||
| Blower | Integrated axial flow blower; speed adjustable. | |||
| Front Window | Manual, 5 mm thick tempered glass, height adjustable. | |||
| Power Supply | AC220V±10%, 50/60Hz; | |||
| Power Consumption | 100W | |||
| Material | Main body made from 1.2 mm cold-rolled steel with powder epoxy coating. | |||
| Internal Side | 5 mm thick compact, resistant to strong acids and alkalis. | |||
| Work Surface | Chemical-resistant phenolic resin, 12.7 mm thick. | |||
| Standard Accessories | LED lamp, integrated adjustable speed axial blower, waterproof sockets x 2, 3-meter PP duct, diameter: 250 mm. | |||
| Optional Accessories | Epoxy resin board or ceramic board, water faucet, gas faucet, water sink, external centrifugal blower (300 W), resistant to strong acids and alkalis. | |||
| Gross Weight | 110 | 110 | 115 | 120 |
Market Price
The price of the YR05813 laboratory extractor hood is approximately $610.00. This price reflects the quality and performance expected from such a high-standard laboratory equipment piece. Investing in this extractor hood not only ensures compliance with safety regulations but also provides a reliable solution for laboratory environments.
Frequently Asked Questions
What is the purpose of a laboratory extractor hood?
A laboratory extractor hood is designed to ventilate and remove hazardous air contaminants, fumes, and vapors from the laboratory environment, ensuring the safety of personnel and maintaining air quality.
How does the YR05813 differ from other models?
The YR05813 model features a unique epoxy coated steel construction, integrated axial flow blower, and customizable height for the window opening, which sets it apart from other similar equipment.
What materials are used in the YR05813 laboratory hood?
This laboratory hood is constructed from cold-rolled steel with a powder epoxy finish, ensuring durability and resistance to chemical corrosion. The internal surfaces are designed to withstand strong acids and alkalis.
What safety features does the extractor hood have?
The YR05813 is equipped with a multi-functional splash-proof socket, a robust glass front window, and an adjustable wind regulator to enhance user safety during laboratory procedures.
Can the YR05813 be customized for specific laboratory needs?
Yes, optional accessories such as different work surfaces and additional fittings can be added to tailor the YR05813 to specific laboratory requirements.
How is the maintenance of the laboratory extractor hood performed?
Regular maintenance involves checking the blower functionality, cleaning the glass surface, and inspecting for any wear on accessories to ensure efficient operation and longevity.
Where can I request a quote for the YR05813 extractor hood?
Interested buyers can request a quote on Kalstein Plus, where you can find additional information and support for your laboratory equipment needs.
Pros and Cons
Pros
- Durable construction with epoxy coating for chemical resistance.
- Integrated blower enhances air circulation and efficiency.
- Adjustable window opening for user convenience.
- Multi-functional sockets for additional equipment.
- Designed with user safety in mind.
Cons
- Initial investment may be higher compared to basic hoods.
- Requires regular maintenance to ensure optimum performance.
- Size may be a constraint for smaller laboratories.
Field Usage
The YR05813 laboratory extractor hood is ideal for a variety of laboratory environments including chemical, biological, and pharmaceutical laboratories. Its design is tailored to provide a safe working space for sensitive experiments involving volatile substances and hazardous materials. Common applications include:
- Chemical reactions requiring fume extraction.
- Biological sampling that needs contamination prevention.
- General laboratory use where chemical handling is involved.
Recommendations
For laboratories seeking to enhance their safety standards and operational efficiency, the YR05813 epoxy coated steel laboratory extractor hood is highly recommended. Its advanced features make it suitable for various applications, while its robust construction ensures long-term reliability. Consider pairing it with optional accessories for specific laboratory requirements. Always consult with laboratory safety protocols and standards when integrating new equipment into your facility.
