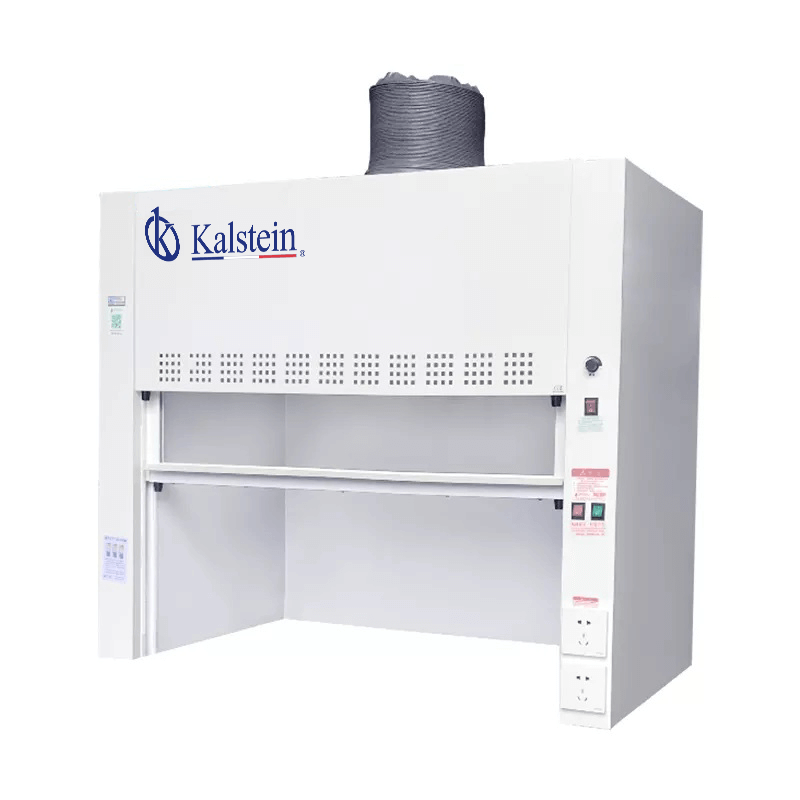

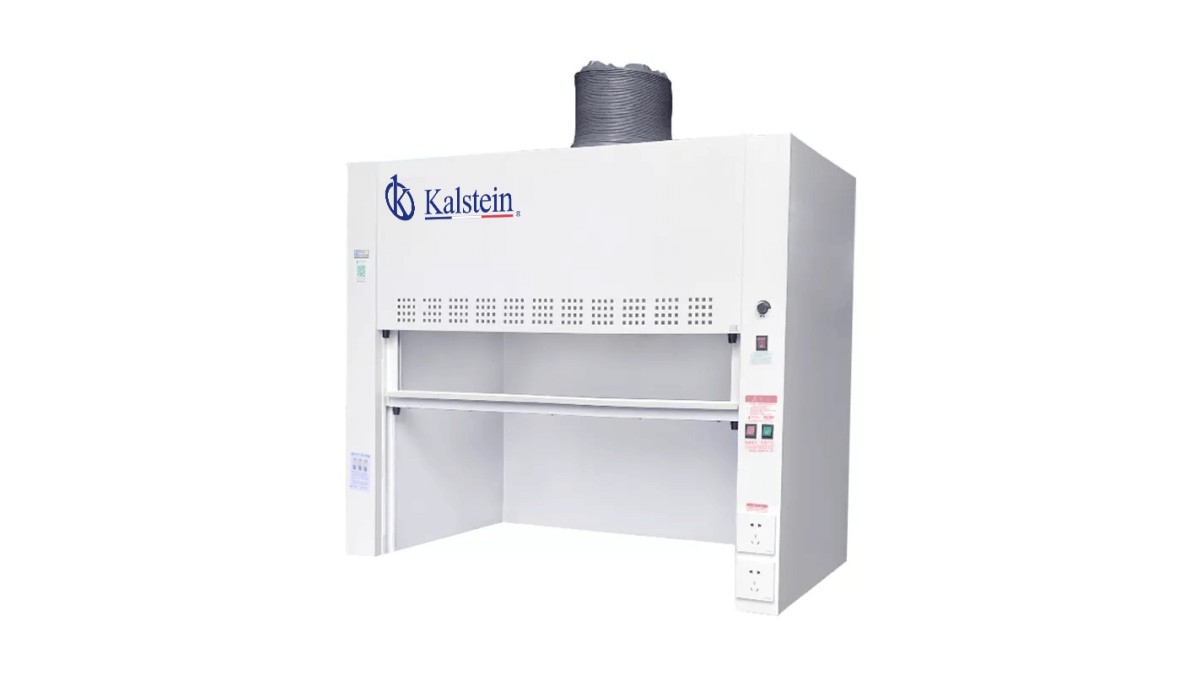

Epoxy-Coated Steel Basic Chemical Laboratory Fume Extraction Hood YR05810
In the realm of laboratory safety and efficiency, the YR05810 epoxy-coated steel basic chemical laboratory fume extraction hood stands out as an essential tool for professionals. This specialized equipment is designed to protect users from harmful chemical vapors, ensuring a safe working environment. With a robust construction and user-friendly features, the YR05810 meets the demanding needs of modern laboratories.
Product Description
The YR05810 fume extraction hood is engineered from high-quality epoxy-coated steel, which enhances its durability and resistance to corrosive substances. Its design includes a front panel with a 5mm thick tempered glass window, providing clear visibility while maintaining safety. The hood features:
- 5mm thick anti-melamin liner and guide deflectors
- Exclusive PP laboratory vessel
- Built-in drainage pipe
- Integrated axial fan and air collector with anti-corrosion hose
- Wind regulator for enhanced airflow control
- 1.2mm thick galvanized steel upper side panel
- Built-in LED tube light
- Fan and lamp switch for easy operation
- Multifunctional splash-proof socket
- Solid corrosion-resistant core with physical and chemical board
- Door frames and panels for added security
The technical specifications further underscore its capabilities:
| Model | External Size (W x D x H) (mm) | Internal Size (W x D x H) (mm) | Working Surface Height (mm) | Maximum Window Opening (mm) | Air Velocity/Airflow Volume | Noise Level (dB) | LED Lamp | Blower | Window Type | Power Supply | Power Consumption (W) | Material | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| YR05810 | 1000 x 650 x 1000 | 800 x 600 x 750 | 800 | 750 | 0.4-0.6 m/s, 800-1000 m³/h | ≤60 | 10W x 1 | Integrated axial flow blower; adjustable speed | Manual; tempered glass, height adjustable | AC220V±10%, 50/60Hz | 100 | 1.2mm thick cold-rolled steel with epoxy resin coating; 5mm thick compact acid and alkali resistant | 115 |
Market Price
The YR05810 fume extraction hood is competitively priced at approximately $470.00. This price point makes it an accessible option for laboratories looking to enhance their safety protocols without compromising on quality. The investment in such essential equipment can lead to improved safety, efficiency, and compliance with laboratory standards.
Frequently Asked Questions
What materials are used in the construction of the YR05810?
The YR05810 is constructed from epoxy-coated steel, ensuring durability and resistance to various chemicals. It also features a tempered glass window and a corrosion-resistant interior.
How does the airflow system work in the YR05810?
The fume hood includes an integrated axial fan and air collector, providing adjustable airflow to ensure effective fume extraction. The airflow speed ranges from 0.4 to 0.6 m/s.
What is the maximum window opening for the YR05810?
The maximum window opening for the YR05810 is 750 mm, allowing for easy access while maintaining a secure environment.
Is the YR05810 suitable for all types of chemicals?
Yes, the YR05810 is designed to safely handle a wide range of chemicals, thanks to its corrosion-resistant materials and thoughtful engineering.
What safety features are included in the YR05810?
This fume extraction hood includes a splash-proof socket, a tempered glass window, and a sturdy construction for enhanced safety during laboratory operations.
Can the LED lighting be replaced?
Yes, the built-in LED tube light can be replaced if necessary, ensuring that the workspace remains well-lit for safety and efficiency.
How do I request a quote for the YR05810?
You can request a quote on Kalstein Plus by visiting our website and navigating to the fume extraction hood section.
Pros and Cons
Pros
- Durable epoxy-coated steel construction
- Tempered glass window for safety and visibility
- Integrated axial flow blower with adjustable speed
- High resistance to chemicals and corrosion
- Affordable price point for laboratory budgets
Cons
- Requires regular maintenance to ensure optimal performance
- Installation may require professional assistance
- Limited options for customization
Field Usage
The YR05810 epoxy-coated steel fume extraction hood is ideally suited for various laboratory settings, including:
- Chemistry laboratories for chemical reactions
- Biological research facilities for safe handling of biological agents
- Educational institutions for teaching laboratory practices
- Pharmaceutical development for drug formulation and testing
- Industrial research settings for material analysis and testing
In each of these environments, the YR05810 ensures that users are protected from harmful fumes and vapors, promoting a safe working atmosphere.
Recommendations
To maximize the benefits of the YR05810 fume extraction hood, consider the following recommendations:
- Regularly inspect and maintain the airflow system to ensure efficiency.
- Train staff on the proper use and safety features of the fume hood.
- Utilize appropriate PPE (personal protective equipment) while working within the hood.
- Ensure proper ventilation in the laboratory to complement fume hood operations.
- Keep the workspace organized to avoid unnecessary hazards.
