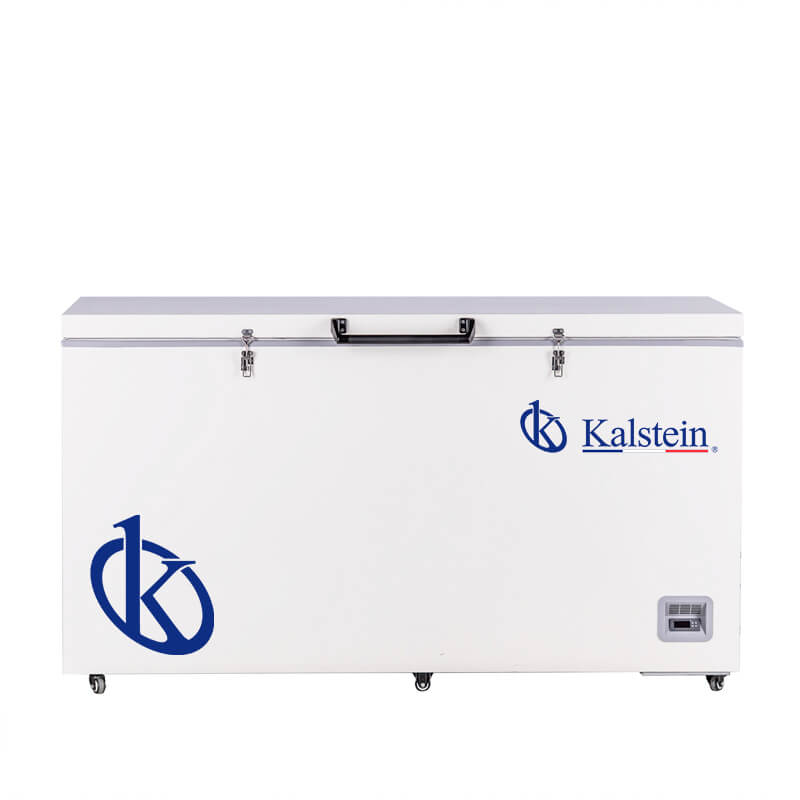

Installation and Commissioning Guide for the YR05104 Horizontal Freezer
The YR05104 Horizontal Freezer is a versatile and reliable appliance designed for storing samples at ultra-low temperatures. This guide provides detailed steps for the installation and commissioning of the freezer, ensuring optimal performance from the first use.
Unboxing and Initial Setup
Before diving into installation, it is crucial to perform a thorough unboxing of the YR05104. Here are the steps involved:
- Carefully remove the YR05104 from its packaging, checking for visible damage.
- Ensure all components are included: power cord, user manual, and any specific accessories.
- Document the serial number and model for warranty purposes.
Site Requirements
Proper site preparation is essential for the effective operation of the YR05104. Below are the critical environmental conditions to consider:
- Temperature range: The unit operates best within an ambient temperature of 10°C to 32°C.
- Humidity: Maintain low humidity levels to prevent condensation.
- Power Supply: Ensure a voltage range between 187V and 242V for optimal performance.
Leveling and Placement
Correct placement of the YR05104 will enhance its cooling capabilities. Follow these steps to ensure proper leveling:
- Position the freezer on a flat, stable surface away from heat sources.
- Use a spirit level to check that the appliance is even on all sides.
- Adjust the feet of the freezer if necessary to achieve balance.
Power-Up Sequence
Once the YR05104 is properly placed and leveled, follow this power-up sequence:
- Connect the power cord to a grounded outlet.
- Turn on the unit using the main power switch located at the rear.
- Observe the LED display for startup indications.
Temperature Calibration and First Run
After powering up, calibrating the temperature range is crucial:
- Set the desired temperature using the microprocessor control.
- Allow the unit to stabilize for at least 24 hours before placing samples inside.
- Check the display for consistent readings and make adjustments if necessary.
Common Setup Mistakes to Avoid
To ensure a smooth installation process, here are common mistakes to avoid:
- Failing to level the freezer, which can lead to operational issues.
- Connecting to an unstable power supply, risking damage to the unit.
- Ignoring ventilation requirements, which can affect cooling efficiency.
Technical Specifications of the YR05104
| Specification | Details |
|---|---|
| Model | YR05104 |
| Cooling Method | Direct Cooling |
| Refrigerant | R290 |
| Energy Consumption (kWh/23h) | 3.45 |
| Temperature Range | -20°C to -40°C |
| Noise Level (dB) | 55 |
| Net Weight | 108 Kg |
| Dimensions (WxDxH) | 1670 x 810 x 930 mm |
| Alarm Types | High/Low Temperature, Power Failure, Sensor Error |
Frequently Asked Questions
What is the cooling capacity of the YR05104?
The YR05104 can maintain temperatures between -20°C and -40°C, making it suitable for various laboratory applications requiring ultra-low storage.
How do I calibrate the temperature settings on the YR05104?
Temperature settings can be adjusted using the microprocessor control interface. It’s recommended to allow the unit to stabilize for a full 24 hours after calibration before placing samples inside.
What are the alarm functions available on the YR05104?
The YR05104 includes multiple alarm functions, including high and low temperature alerts, power failure notifications, and sensor errors, to ensure safe operation.
Can I use the YR05104 for long-term storage of biological samples?
Yes, the YR05104 is designed for long-term storage of biological samples at ultra-low temperatures, making it ideal for laboratories and research institutes.
Is there an optional accessory for remote alarms with the YR05104?
Yes, the YR05104 supports a remote alarm port for enhanced monitoring of the system's status.
What should I do if the YR05104 displays an error code?
Refer to the user manual for error code descriptions and troubleshooting steps. Common issues include sensor failures or temperature fluctuations requiring immediate attention.
How can I request a quote for the YR05104?
You can request a quote by contacting our sales team through our online platform or customer service channels.
