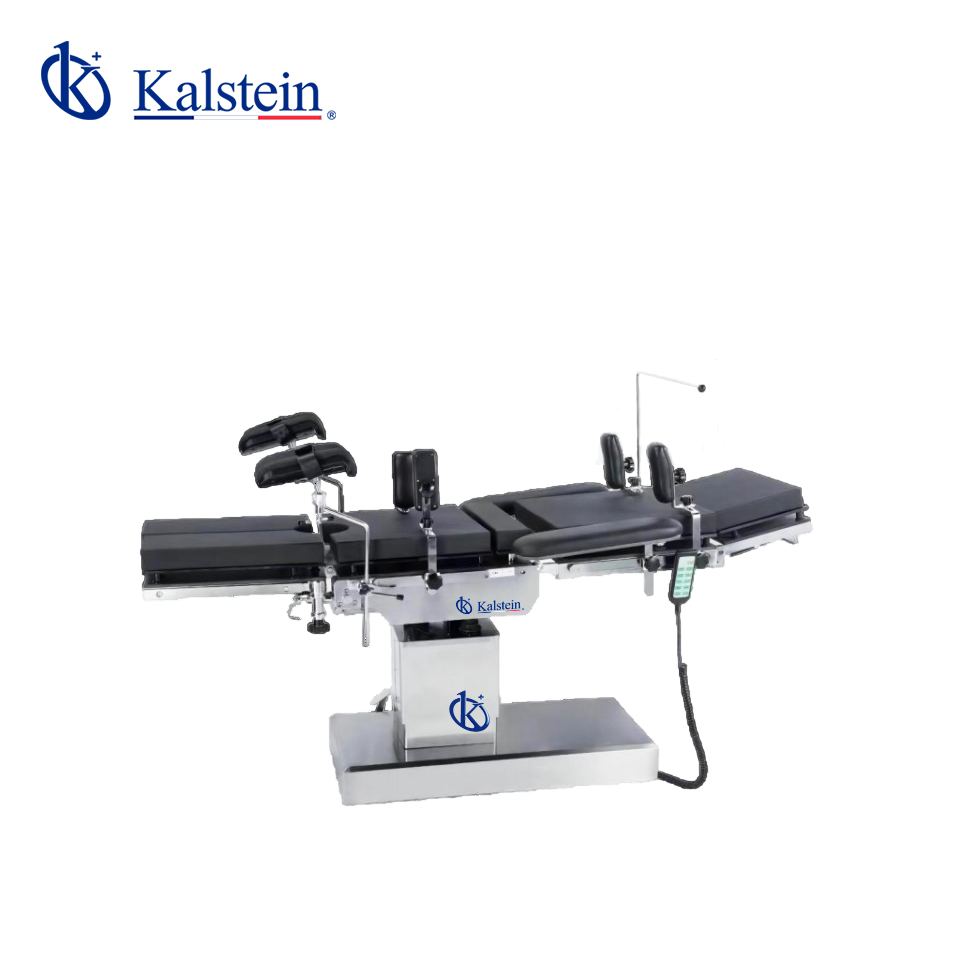

Installation and Commissioning Guide for the YR06232 Electrohydraulic Operating Table
Setting up the YR06232 Electrohydraulic Operating Table requires careful attention to detail to ensure optimal functionality and safety. This guide will walk you through the installation process, covering everything from unboxing to initial calibration.
Unboxing and Initial Setup
When you first receive the YR06232, it is essential to check for any visible damages during shipping. Here’s a checklist to follow:
- Inspect the packaging for damages.
- Check that all components listed in the manual are included.
- Ensure the operating table is intact without any dents or scratches.
Once unboxed, locate a suitable location for installation, ensuring that there is ample space for operation and maintenance.
Site Requirements and Environmental Conditions
Before installing the YR06232, you need to ensure that your site meets the following requirements:
- Temperature Range: 10°C to 35°C
- Humidity: 30% to 75% relative humidity
- Voltage and Frequency: 220V ± 10%, 50Hz or 60Hz
- Ventilation: Sufficient airflow to prevent overheating
- Space Requirements: Minimum clearance of 1 meter around the table
A checklist for site preparation can be useful:
| Requirement | Status |
|---|---|
| Temperature | ✔️ |
| Humidity | ✔️ |
| Voltage Supply | ✔️ |
| Ventilation | ✔️ |
| Space Clearance | ✔️ |
Anchoring and Leveling the YR06232
Once you have determined the installation location, the next step is to anchor and level the table:
- Use the provided mounting brackets to secure the table to the ground.
- Ensure the table is leveled using a spirit level; adjust the feet if necessary.
- Verify stability by applying slight pressure to various parts of the table.
Power-Up Sequence and Initial Calibration
After installation, follow these steps for powering up and calibrating the YR06232:
- Connect the power supply securely, ensuring no loose connections.
- Turn on the main power switch.
- Press the power button on the control panel to initialize the system.
- Perform initial calibration by following on-screen instructions or the user manual.
Common Setup Mistakes to Avoid
To ensure a successful installation, be aware of common pitfalls:
- Failing to read the user manual thoroughly.
- Neglecting to check environmental conditions.
- Improper leveling which can lead to operational issues.
Technical Specifications of the YR06232
| Specification | Details |
|---|---|
| Model | YR06232 |
| Length/Width | 2100/550 mm |
| Height Adjustment (electric) | 700-1000 mm |
| Trendelenburg (electric) | ±30° |
| Lateral Tilt (electric) | ±20° |
| Back Section (electric) | 75°/-35° |
| Head Board (manual) | 60°/-90° |
| Leg Board (manual) | 15°/-90° |
| Built-in Kidney Elevator (manual) | 0-120 mm |
Frequently Asked Questions
What are the key features of the YR06232 Electrohydraulic Operating Table?
The YR06232 boasts a range of features including smooth hydraulic operation, longitudinal movement of 300 mm for X-ray examinations, and various adjustable sections for optimal positioning during surgical procedures.
How do I perform the initial calibration on the YR06232?
To perform initial calibration, power on the device and follow the on-screen instructions. Ensure that all sections of the table are adjusted to their neutral positions before starting the calibration process.
What precautions should I take when installing the YR06232?
Ensure that the installation area meets the specified environmental conditions, and verify that the table is securely anchored and leveled to prevent any operational hazards.
Can the YR06232 be used in different medical settings?
Yes, the YR06232 is designed for general use in various clinical environments such as hospitals, surgical centers, and outpatient facilities, adapting to different surgical procedures.
What should I do if the YR06232 does not power on?
If the YR06232 does not power on, check the power supply connections and ensure that the main switch is turned on. If the issue persists, consult the troubleshooting section of the user manual.
How can I request a quote for the YR06232?
You can request a quote easily through our contact page or directly on our dedicated platform.
