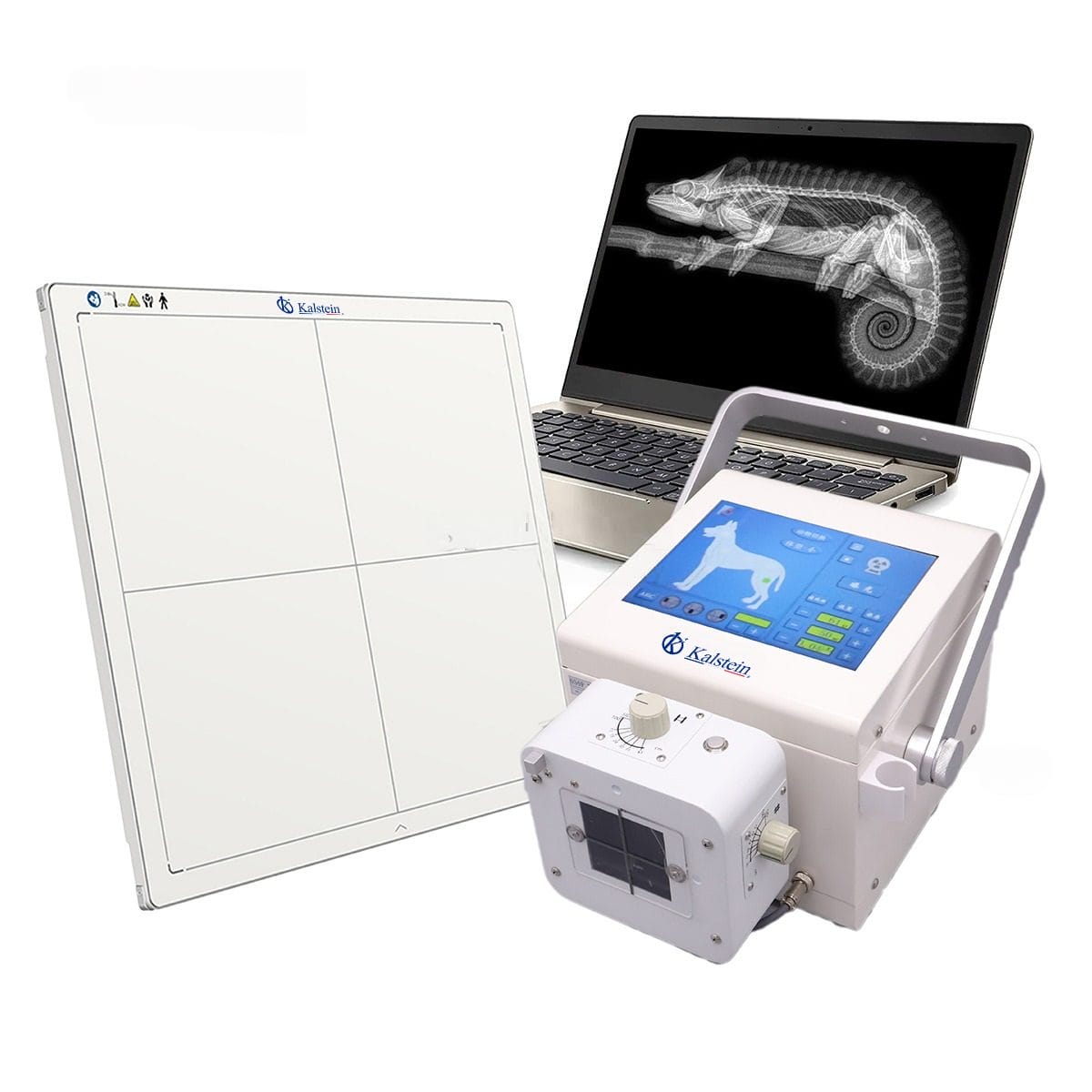

Interpreting Results and Reading Measurements with the YR06160 Portable Digital Veterinary X-Ray
In the realm of veterinary diagnostics, the YR06160 Portable Digital Veterinary X-Ray stands out for its remarkable features and precision. Understanding how to interpret the results and accurately read measurements from this advanced device is crucial for veterinary professionals. This article delves into the specifics of the YR06160, ensuring that users can maximize its potential during examinations.
Understanding the YR06160: Key Features
The YR06160 is designed with a robust set of features that enhance its usability in veterinary practices. With a 10.4-inch touch screen, it allows easy navigation through various settings and options. The device is equipped with auto-protection against failures and self-diagnosis capabilities ensuring reliability during operation.
One of the standout features is its high-precision control of tube voltage and current, which significantly impacts image quality. Additionally, it offers 48 types of anatomical memory pattern selections, accommodating various diagnostic needs. The dual-loop digital control method ensures stability and accuracy, making the YR06160 a vital tool in veterinary imaging.
Technical Data of the YR06160
| Feature | Details |
|---|---|
| Model | YR06160 |
| Power | 5kW |
| kV Range | 40~110kV |
| mA Range | 20~100mA |
| mAs Range | 0.8-200mAs |
| Working Frequency | ≥40kHz |
| Exposure Time | 40ms~4000ms |
| Weight | 19 kg |
| Touch Screen Dimension | 10.4-inch |
Interpreting Results from the YR06160
When using the YR06160, the interpretation of the obtained images is central to accurate diagnostics. Understanding the exposure parameters such as kV, mA, and exposure time is crucial. Each parameter affects the contrast and clarity of the images produced.
For instance, higher kV levels can penetrate denser tissues, resulting in clearer images of bones. In contrast, lower kV levels are suitable for softer tissues. Understanding these dynamics allows for proper adjustments before taking images, thus enhancing diagnostic accuracy.
Reading Measurements on the Display
The YR06160 features a user-friendly interface that displays critical information about the imaging process. Key metrics such as voltage, current, and exposure time are readily visible on the screen. It's essential to familiarize oneself with the display layout to maximize efficiency during use.
Common reading errors can occur if operators misinterpret the display indicators. For example, confusion between voltage and current readings can lead to inappropriate settings. Thus, continuous education and practice are vital in mastering the reading of these measurements.
Common Misinterpretations and How to Avoid Them
Misinterpretation of results can lead to incorrect diagnoses. One common mistake is assuming that a darker image indicates better exposure; in reality, it can signify overexposure. Another frequent error arises when not accounting for the anatomical memory patterns selected during the imaging process.
To avoid these pitfalls, veterinary practitioners should regularly review the principles behind image interpretation. Workshops and training sessions focusing on the YR06160 can help enhance understanding and reduce the likelihood of errors in interpretation.
Frequency of Calibration and Maintenance
Regular calibration of the YR06160 is crucial to ensure accurate measurements. The device should be calibrated according to the manufacturer's recommendations, typically every six months, or whenever significant changes in performance are observed.
Maintenance activities, such as checking for software updates or inspecting the X-ray tube, also play a vital role in maintaining the device's operational integrity. Neglecting these tasks can lead to deterioration in image quality and measurement accuracy over time.
Frequently Asked Questions
How do I ensure accurate readings from the YR06160?
To ensure accurate readings, always calibrate the device following the manufacturer's guidelines, use the appropriate exposure settings based on the type of tissue being imaged, and regularly maintain the X-ray tube and other components.
What are the optimal exposure settings for different types of animals?
Optimal exposure settings vary by animal species and tissue type. Generally, larger animals may require higher kV and mA settings for clearer images, while smaller animals may prefer lower settings. It is essential to consult the YR06160 manual for specific recommendations.
What should I do if the YR06160 displays an error code?
If the YR06160 displays an error code, refer to the troubleshooting section of the user manual. Common solutions include resetting the device, checking power supply connections, or recalibrating the unit. If the issue persists, contact technical support.
How can I interpret exposure time on the YR06160?
Exposure time displayed on the YR06160 indicates how long the X-ray tube is active during imaging. Understanding this parameter is crucial, as too long of an exposure can result in overexposed images, while too short can lead to underexposure. Adjust accordingly based on the diagnostic needs.
What types of images can be produced with the YR06160?
The YR06160 is capable of producing various imaging types, including skeletal, dental, and soft tissue X-rays. Each type may require specific settings to ensure optimal image quality for accurate diagnosis.
Can the YR06160 be used for different veterinary applications?
Yes, the YR06160 is versatile and can be used in various veterinary applications, including emergency care, routine check-ups, and specialized diagnostics. Its features allow it to adapt to different imaging requirements.
Where can I request a quote for the YR06160?
You can request a quote for the YR06160 through our online channels, ensuring you get the best pricing and service for your veterinary imaging equipment needs.
