Practical Use of Desktop pH/Ion Meter YR01826 in Laboratories
Product Description

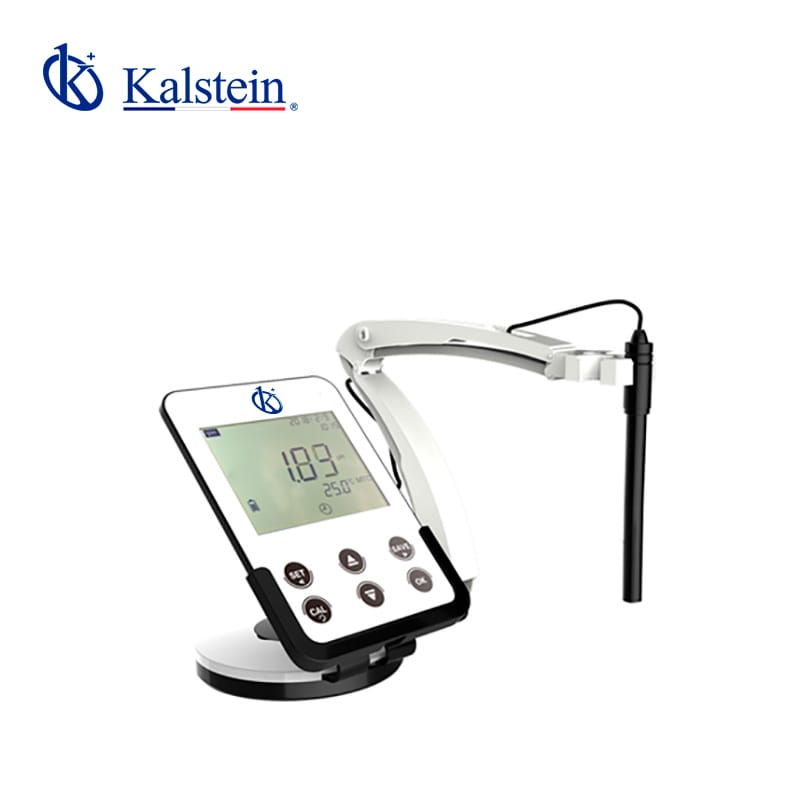

The Desktop pH/Ion Meter YR01826 is a sophisticated measurement device equipped with a 5-inch LCD screen that provides a 150-degree viewing angle, ensuring clarity in readings from distances up to 5 meters. This advanced device incorporates a microprocessor chip that offers intelligent features such as automatic calibration, automatic temperature compensation (ATC), data storage, clock display, USB output, function settings, automatic shut-off, and low voltage alarm.
With two USB interfaces, the device allows connections to a PC, battery charging, and data transfer. The 3.5 mm electrode interface simplifies electrode connections, and the meter can automatically recognize different electrodes. Electrodes with built-in chips can store and retrieve calibration data upon connection, enhancing user convenience.
This meter supports the automatic recognition of 15 buffers with options for Europe, the USA, NIST, and China, enabling calibration at 1, 2, or 3 points. It can store up to 200 sets of data, including readings, GLP data, date, and time. Its rechargeable battery provides up to 30 hours of usage, and the device automatically shuts off after 10 minutes of inactivity.
Market Price
| Feature | Details | Price (USD) |
|---|---|---|
| Model | YR01826 | 340.00 |
| Brand | Kalstein | - |
| Category | pH meters | - |
| Subcategory | Table pH meters | - |
| Weight | 1.50 kg | - |
| Dimensions | 180 x 130 x 14 mm | - |
Frequently Asked Questions
What is the measuring range of the YR01826 pH meter?
The measuring range of the YR01826 pH meter is from -2 to 19.999 pH.
How accurate is the YR01826 pH meter?
The YR01826 pH meter boasts an accuracy of ±0.02 pH, ensuring precise measurements.
What features enhance the usability of the YR01826?
Key features that enhance usability include automatic calibration, ATC, data storage for up to 200 sets, and the ability to recognize different electrodes automatically.
How long can the YR01826 operate on a single charge?
The YR01826 can operate for up to 30 hours on a single charge, providing long-lasting performance for laboratory use.
What is the automatic shut-off feature?
The device automatically shuts off after 10 minutes of inactivity to conserve battery life.
Can the YR01826 connect to a computer?
Yes, the YR01826 features two USB interfaces that allow for easy connection to PCs for data transfer and charging.
What is the IP grade of the YR01826?
The YR01826 has an IP54 rating, which means it is protected against dust and splashes of water.
Pros and Cons
Pros:
- High accuracy with ±0.02 pH measurement.
- Large 5-inch LCD display for clear readings.
- Supports multiple calibration points (1, 2, 3 points).
- Long battery life with up to 30 hours of use.
- Automatic electrode recognition enhances user convenience.
- Data storage for up to 200 sets of measurements.
- Compact and portable design for easy handling.
Cons:
- Initial cost may be high for small laboratories.
- Requires calibration for accurate results.
- Limited to specific electrode types.
Field Usage
The YR01826 Desktop pH/Ion Meter is primarily used in laboratory environments for precise pH and ion analysis. Its automatic calibration feature significantly reduces the time spent on manual adjustments, making it ideal for busy laboratories that require efficiency. In educational settings, this device can be used for teaching purposes, demonstrating the principles of pH measurement and ion concentration effectively.
Moreover, its rechargeable battery and portability allow for use in field testing, such as water quality assessments in environmental science. The ability to store data enhances the research capabilities, enabling scientists to track changes over time without losing valuable information.
Recommendations
For laboratories looking to enhance their analytical capabilities, the YR01826 Desktop pH/Ion Meter is highly recommended due to its advanced features and user-friendly design. Proper training on calibration and maintenance will maximize the device's performance and longevity. Additionally, it is advisable to invest in compatible electrodes that work seamlessly with this meter to ensure optimal results.
To ensure you get the best out of your laboratory investments, consider reaching out for a quote on the YR01826 and other laboratory equipment to find the perfect match for your needs.
