Description

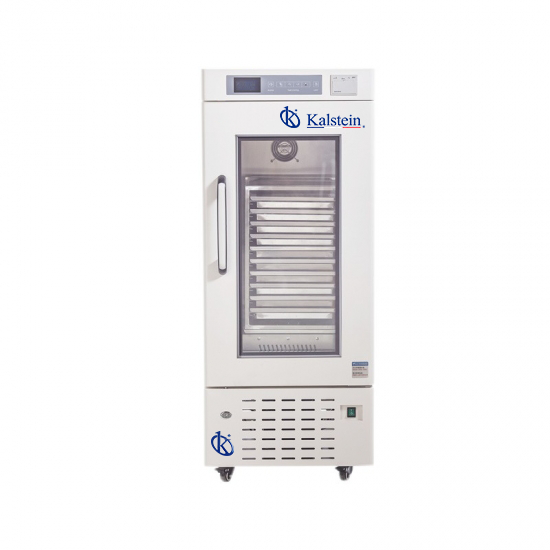

The 22 °C Blood Platelet Incubator YR06028-YR06029 is an advanced storage solution designed for the optimal preservation of blood platelets. Integrated with an agitator, this incubator ensures continuous, quiet operation, making it ideal for various settings such as hospitals, blood banks, research institutes, laboratories, and universities. Its design resembles a multi-level storage cabinet, equipped with both heating and refrigerating elements to maintain precise temperature control (20℃～24℃) for blood platelets, biological reagents, and chemical products.
Market Price
The average market price for blood platelet incubators like the YR06028-YR06029 ranges between 3,000 USD to 3,800 USD. This competitive pricing reflects the advanced technology and reliability offered by Kalstein in maintaining critical temperatures for sensitive medical supplies.
Frequently Asked Questions
- What is the capacity range of the incubator? The model YR06028 offers a capacity of 5 liters, while the YR06029 provides 10 liters, making them suitable for varying storage needs.
- What is the accuracy of the temperature control? The incubator features a microprocessor control system with an LED display, providing an accuracy of 0.1°C.
- Can I connect an external temperature recorder? Yes, an optional temperature recorder can be connected via a USB port for real-time monitoring.
Advantages and Disadvantages
Advantages: The incubator offers constant temperature storage with minimal fluctuations, high-quality construction using 304 stainless steel, and user-friendly mobility with castor wheels. The multiple alarms system provides enhanced safety for stored contents.
Disadvantages: Some users might find the higher upfront cost of the incubator challenging, although this investment ensures the preservation quality and durability over time.
Product Usage in the Field
This incubator is crucial for safely storing blood platelets, which require precise temperature conditions to maintain efficacy. By providing a stable environment, it helps healthcare providers manage their biological supplies in hospitals and research settings effectively.
Recommendations
To maximize the efficiency of the Blood Platelet Incubator YR06028-YR06029, ensure regular maintenance checks to clean the chamber and verify temperature accuracy. Utilize the optional USB for automated temperature recordings to keep detailed logs easily.
Features
- Constant Temperature: 2℃ of temperature fluctuations
- Thermal Printer: Real-time automatic printing of temp, optional USB port
- Universal Castor Wheels: Castors with brake
- High-Quality Steel: 304 stainless steel chamber and oscillator
- Microprocessor Control System: Continuous alarm for 72h after power failure
- 5 Types of Alarms: Includes power failure, sensor malfunction, and door ajar alarms
Technical Specifications
| Model | YR06028 | YR06029 | |
|
Specificaitons
|
Shelf/drawer QTY | Drawer / 5 | Drawer / 10 |
| Cooling method | Forced air cooling | ||
| Defrost | No frost | ||
| Refrigerant | R134a | ||
| Power consumption(kWh/24h) | 2.69 | 4.4 | |
| Noise (db) | 49 | 50 | |
| Ambient temperature (°C) | 10~32 °C | ||
| Temperature range (°C) | 20~24 °C | ||
|
Cooling system
|
Compressor brand/QTY | EMBRACO/1 | |
| Sensor | NTC | ||
| Temperature controller | Microprocessor | ||
| Display | Digital display | ||
|
Power
|
Voltage/frequency (V/Hz) | 220/50Hz | |
| Power (W) | 197W | 280W | |
| Current (A) | 0.9A | 1.27A | |
|
Material
|
Inside material | SUS | |
| Outside material | Colored Spray Steel | ||
| Insulation | PU | ||
|
Size
|
Capacity (L/cu.ft) | 5 | 10 |
| Bloodbags(450ml)/Layers | 10 /5 layers | 20 /10 layers | |
| NT./GT. (kg) | 65/87 | 85/108.5 | |
| Exterior size(W*D*H)(mm) | 520*640*1030 | 520*640*1290 | |
| Interior size(W*D*H)(mm) | 427*360*467 | 432*462*728 | |
| 20GP/40GP/40HQ | 24/48/96 | 32/68/68 | |
|
Alarm System
|
High/low temperature | Y | |
| Power failure | Y | ||
| Sensor malfunction | Y | ||
| Low batery | / | ||
| Door ajar | Y | ||
| Power failure backup system(alarm) | 72h | ||
|
Accessories
|
Caster | Y | |
| Outer door / Type | 1 (Foamed glass door) | ||
| Test hole | Optional | ||
| Light | UV Light | ||
| Temperature recorder | Optional | ||
| Other | Certification | ISO, CE | |
