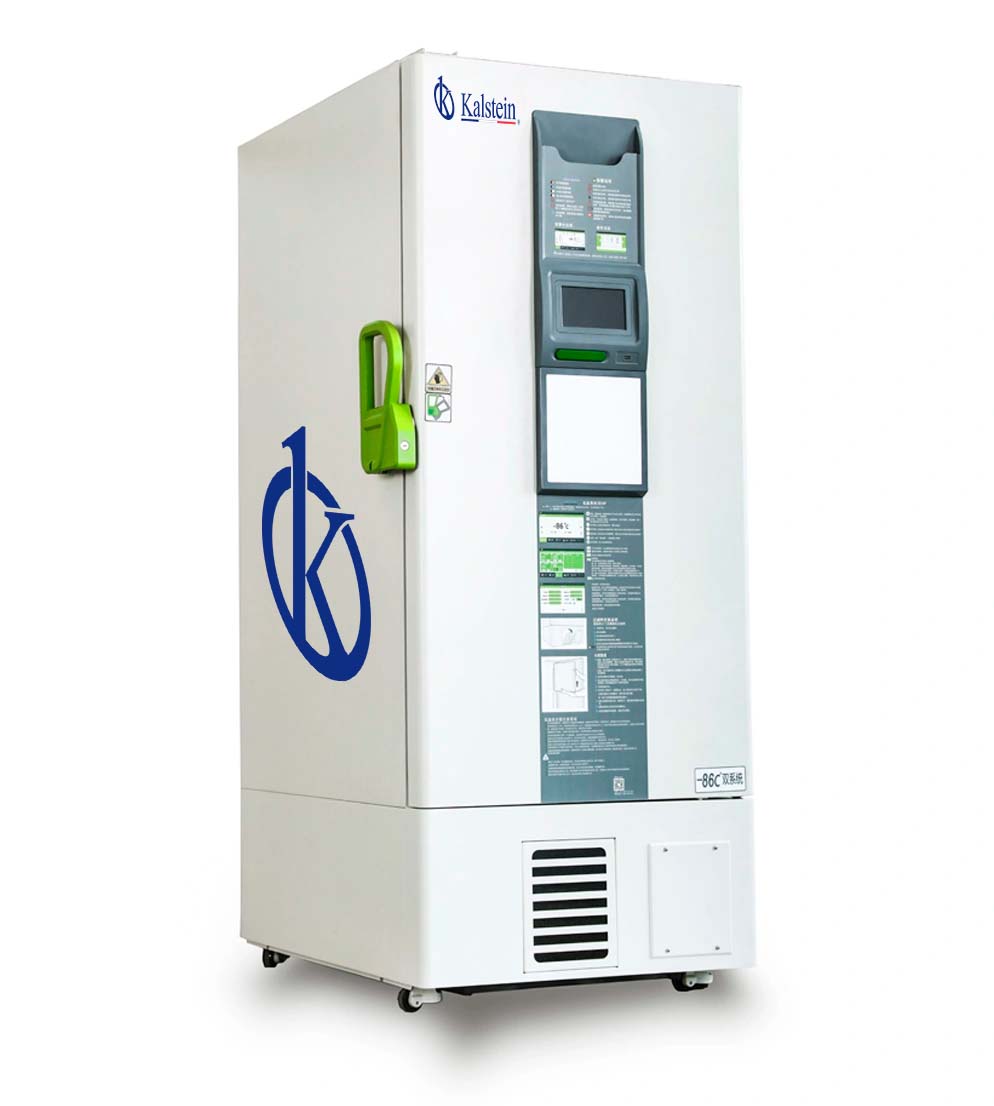

588 Liters Laboratory Upright Freezer Color Sprayed Steel YR05303
588 Liters Laboratory Upright Freezer Color Sprayed Steel YR05303 — equipo de laboratorio Kalstein con especificaciones técnicas, características avanzadas y soluciones profesionales certificadas para uso científico.
The 588 Liters Laboratory Upright Freezer Color Sprayed Steel YR05303 is engineered to provide an exceptional solution for the secure preservation of sensitive biological materials that necessitate ultra-low temperatures. This advanced freezer boasts a dual refrigeration system, offering efficient and reliable cooling, with temperatures adjustable between -40°C and -86°C. Each refrigeration system is independently capable of maintaining a temperature of -80°C, enhancing the safety and reliability of stored samples. The integration of a microprocessor control system, along with visual and audible alarms, ensures continuous monitoring and maximum protection of the freezer's internal conditions.
Market Price
The market price for similar laboratory freezers ranges on average between $11,000 to $11,400 USD. This pricing provides excellent value considering the advanced technological features such as energy efficiency, substantial storage capacity, and robust safety systems. The YR05303 model is an excellent choice for research laboratories, hospitals, and blood banks in need of high-capacity and dependable equipment for long-term preservation of biological specimens.
Frequently Asked Questions
- Does this freezer preserve temperature during a power outage?
Yes, the YR05303 is equipped with a 72-hour backup power system that keeps alarms and the temperature display operational, ensuring sample safety during outages. - How is the freezer's temperature controlled?
With a microprocessor control system and an intuitive LCD screen, users can set precise temperatures from -40°C to -86°C, with visual and audible alerts for any deviations or system errors. - Is it suited for transporting biological materials?
While primarily designed for stationary use, the YR05303 can facilitate transportation if connected to a suitable power source and secured appropriately.
Advantages and Disadvantages
Advantages:
- Energy Efficiency: The dual refrigeration system and eco-friendly refrigerant provide up to 50% energy savings compared to standard models.
- Ample Storage Capacity: With 588 liters, the freezer can accommodate around 40,000 samples, ideal for busy environments.
- Technology Innovation: An LCD screen and microprocessor control enable precise temperature management.
- Reliable Security Alarms: Equipped with both visual and audible alarms for temperature disruptions, power failures, or system malfunctions.
Disadvantages:
- Investment Cost: The cost, albeit competitive, may pose a challenge for organizations with limited resources.
- Maintenance Needs: Periodic maintenance is vital to ensure longevity and optimal performance.
Product Use in the Field
This freezer is predominantly utilized in research laboratories, hospitals, and blood banks, where the integrity of biological materials such as vaccines, blood plasma, and stem cells is imperative. Its optimized design and extensive capacity make it highly suitable for institutions that manage significant sample volumes and require precise temperature regulation to maintain the efficacy of treatments and clinical studies.
Recommendations
For optimal performance and to extend the lifespan of the YR05303 Laboratory Freezer, regular maintenance and preventive measures are advised. Frequently monitor the internal temperature and verify the functionality of the refrigeration system and alarms. Always ensure the doors are tightly sealed to avoid unnecessary temperature fluctuations. For transportation purposes, it is essential to connect the freezer to a dependable power source and secure it properly. For inquiries or to request a quote, we invite you to explore our Kalstein Plus platform.
Features
- 588 liters of storage capacity accommodating up to 40,000 samples.
- Independent dual refrigeration systems.
- Microprocessor control with flexible temperature settings.
- Energy-efficient with eco-friendly refrigerants.
- Visual and audible alarms for monitoring.
- Backup power system up to 72 hours.
Technical Specifications
| Model | YR05303 | |
| Specifications | Shelf/drawer QTY | Stainless steel shelf/3 |
| Cooling | Direct cooling | |
| Defrost | Manual | |
| Refrigerant | Mixed-gas | |
| Power Consumption (kWh/24h) | 16.5 | |
| Noise (db) | 53 | |
| Ambient temperature (ºC) | 10~32ºC | |
| Temperature range (ºC) | -40~-86ºC | |
| Cooling system | Compressor brand/QTY | SECOP/2 |
| Sensor | PTC | |
| Temperature controller | Microprocessor | |
| Display | LCD display | |
| Power | Voltage/frequency (V/Hz) | 220/50Hz |
| Power (W) | 1500W | |
| Current (A) | 9.1A | |
| Material | Inside material | Stainless steel |
| Outside material | Color sprayed steel | |
| Insulation | PURF | |
| Size | Capacity(L/cu.ft) | 588 |
| NT./GT.(kg) | 297.5/358.5 | |
| Exterior size (W*D*H) (mm) | 885*1100*1995 | |
| Interior size (W*D*H) (mm) | 606*738*1310 | |
| Package size (W*D*H) (mm) | 970*1140*2190 | |
| CBM | 2.42 | |
| 20GP/40GP/40HQ | 12/24/24 | |
| Frozen Racks | Racks | 16(5X5) |
| Boxes (2 Inches) | 400 | |
| Samples(2ml) | 40000 | |
| Alarm | High/low temperature | Y |
| Power failure | Y | |
| Abnormal voltage | Y | |
| Sensor error | Y | |
| Filter screen check | Y | |
| Thermostat failure | Y | |
| Low battery | Y | |
| Condenser clean | Y | |
| High ambient temperature | Y | |
| Door ajar | Y | |
| Power failure backup system(alarm) | 72h | |
| Accessories | Castor | Y |
| Inside door | 2 | |
| Test hole QTY/diameter | 1/25MM | |
| USB port | Y | |
| Chart recorder | / | |
| Data logger | Optional | |
| Remote alarm port | Y | |
| Optional | CO2 back up system | Optional |
| LN2 back up system | Optional | |
| Other | Certification | ISO.CE |
Technical specifications
| Dimensions | L 97 × W 113.8 × H 218.5 cm |
|---|---|
| Weight | 358.50 kg |
| Manufacturer | Kalstein |
