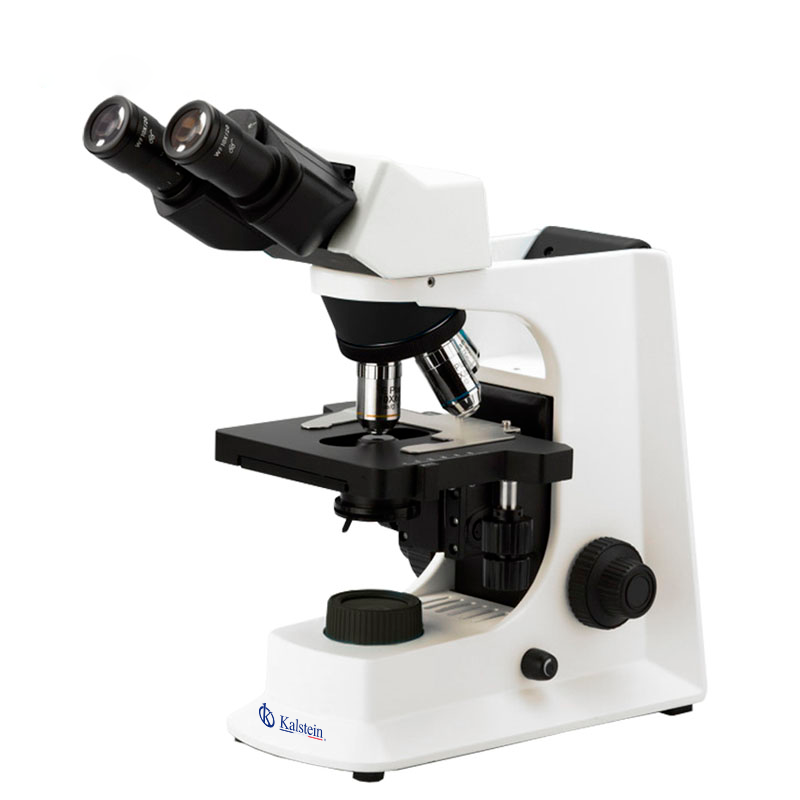

Binocular Infinity Plan Laboratory Biological Microscope YR05787 - YR05788
Binocular Infinity Plan Laboratory Biological Microscope YR05787 - YR05788 — Kalstein laboratory equipment with technical specifications, advanced features, and certified professional solutions for scientific use.
The Binocular Infinity Plan Laboratory Biological Microscope YR05787 - YR05788 is a cutting-edge piece of equipment designed for precision and practicality in the lab. With a 30° inclined, 360° rotatable binocular head, adjustable interpupillary distance of 48-75mm, and high eyepoint eyepieces, this microscope offers exceptional comfort even during extended use. The robust integrated design of the eyepiece lens barrel minimizes eyepiece contamination and loss, enhancing the microscope's overall performance. Additionally, users can choose from four sets of objectives, including Achromatic, Plan, Infinity E-Plan, and Infinity Plan, catering to a wide range of scientific applications. The mechanical stage is generously sized at 145 mm x 140 mm, facilitating smooth and precise slide movements with a travel range of 76mm x 52mm and accuracy down to 0.1mm.
Market Price
In the competitive market of laboratory microscopes, the Binocular Infinity Plan Laboratory Biological Microscope YR05787 - YR05788 has a price range of approximately $900 to $1,700. This price range reflects the exceptional quality and reliability of the microscope, making it a valuable investment for laboratories that require precision and durability.
Frequently Asked Questions
Q1: Can the microscope be used for educational purposes?
A1: Yes, the microscope is designed for both advanced laboratory research and educational environments, thanks to its user-friendly features and robust construction.
Q2: What type of illumination does the microscope use?
A2: It uses a 3W-LED illumination system, ensuring clear and bright observations in various lighting conditions.
Advantages and Disadvantages
The Infinity Plan Microscope offers numerous advantages, such as high precision, adjustable design for user comfort, and a variety of objective lenses for versatile applications. However, its advanced features might be more than necessary for basic educational use, representing a potential overinvestment for some users.
Product Use in the Field
In practical scenarios, this microscope is instrumental in biological research and educational settings. Its durability and accuracy provide indispensable support for detailed observation and analysis of specimens, making it a preferred choice among biologists and educators.
Recommendations
To maximize the usability and lifespan of the YR05787 - YR05788 microscope, it is recommended to regularly clean the lens surfaces with a proper lens cleaning solution and store the microscope in a dust-free environment. Engage with Kalstein Plus for hassle-free quotation and procurement options.
Features

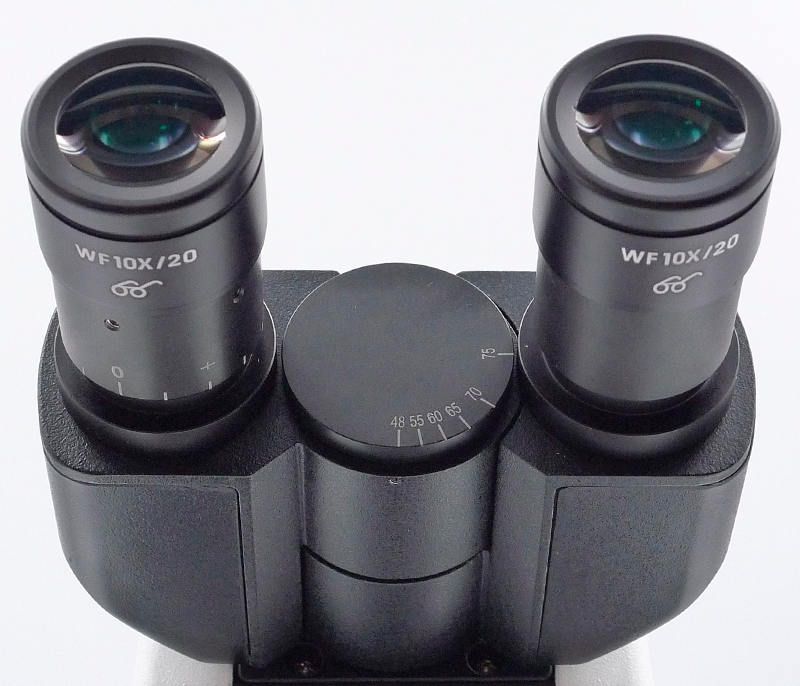

- 30° inclined, 360° rotatable binocular head
- Interpupillary distance adjustable between 48-75mm
- High eyepoint eyepieces for comfort
- Integrated design to minimize contamination and loss
- Four objective sets available
- 145 mm x 140 mm mechanical stage with precise movement
- 3W-LED illumination for optimal visibility
Technical Specifications
| Model | Cata. No. | YR05787 | YR05788 | |
| Head | Seidentopf Binocular Head Inclined 30°,Rotatable 360°, Interpupilary Distance 48-75mm | YR05788-op1 | ● | ○ |
| Seidentopf Trinocular Head Inclined 30°,Rotatable 360°, Interpupilary Distance 48-75mm, Light Split Fixed P20:E80 | YR05788-op2 | ○ | ● | |
| WF10X/20mm (High Eyepoint) | YR05788-op3 | ●● | ●● | |

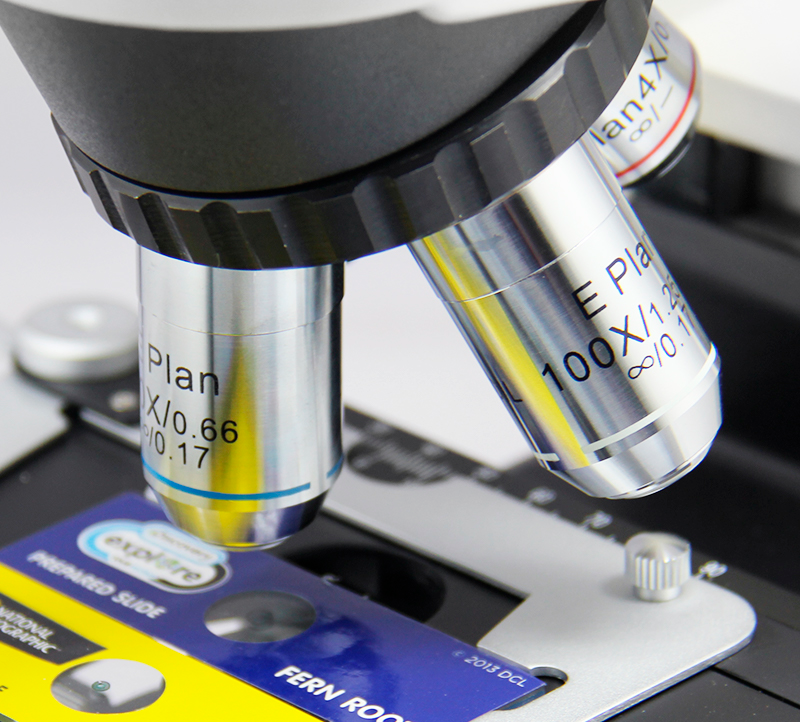

| Nosepiece | Quadruple, Backward | YR05788-op4 | ● | ● |
| Quintuple, Backward | YR05788-op5 | ○ | ○ | |
| Infinity Plan Objectives | PLAN 2.5x/0.07,W.D.=8.47mm | YR05788-op6 | ○ | ○ |
| PLAN 4X/0.10.W.D.=12.1mm | YR05788-op7 | ● | ● | |
| PLAN 10X/0.25.W.D.=4.64mm | YR05788-op8 | ● | ● | |
| PLAN 20X/0.40(S).W.D.=2.41mm | YR05788-op9 | ○ | ○ | |
| PLAN 40X/0.66(S).W.D.=0.65mm | YR05788-op10 | ● | ● | |
| PLAN 60X/0.80(S).W.D.=0.33mm | YR05788-op11 | ○ | ○ | |
| PLAN 100X/1.25(S,Oil).W.D.=0.12mm | YR05788-op12 | ● | ● | |
| PLAN 100X/1.15(S,Water).W.D.=0.19mm | YR05788-op13 | ○ | ○ | |

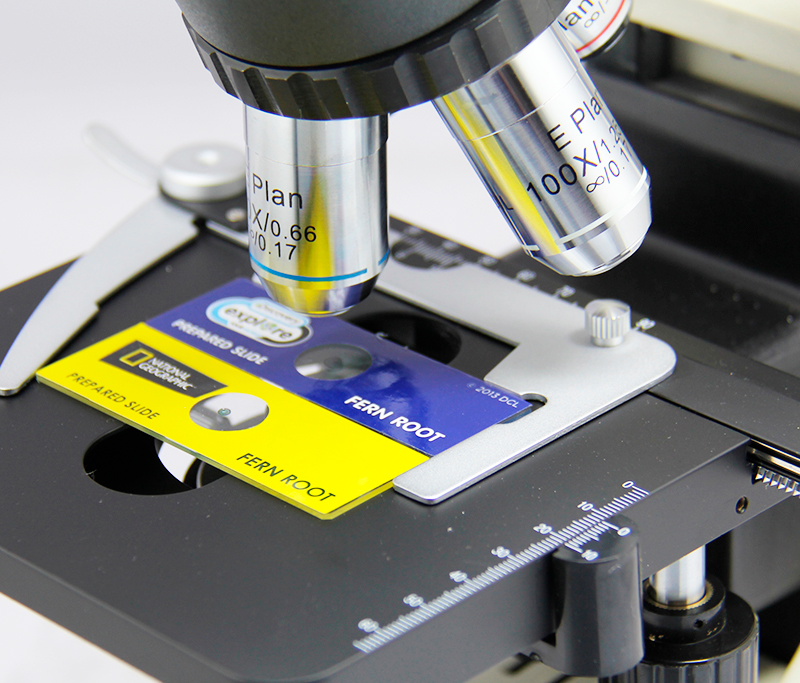

| Working Stage | Mechanical Stage Size: 145 mm×140mm, Travel: 76mmX52mm, Scale: 0.1mm, Double Slide Holder | YR05788-op14 | ● | ● |
| Rackless (Integrated) Stage, Size 140×135mm, | YR05788-op15 | ○ | ○ | |
| Travel Range 75×35mm, Double Slide Holder | - | |||

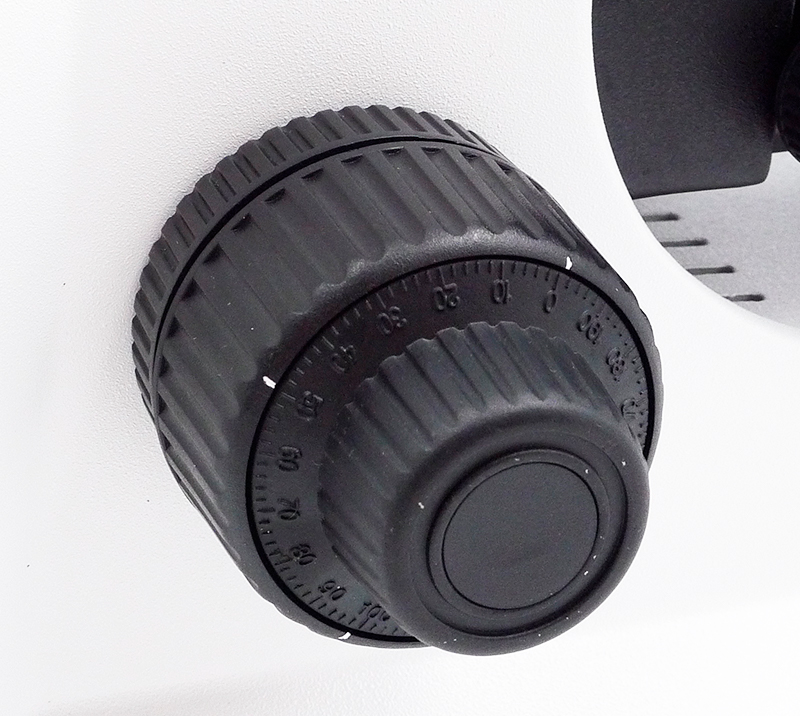

| Focusing | Coaxial Coarse & Fine Focusing, Coarse Focusing Travel Range: 26mm, Fine Focusing Travel Range: 2µm/Division | YR05788-op16 | ● | ● |

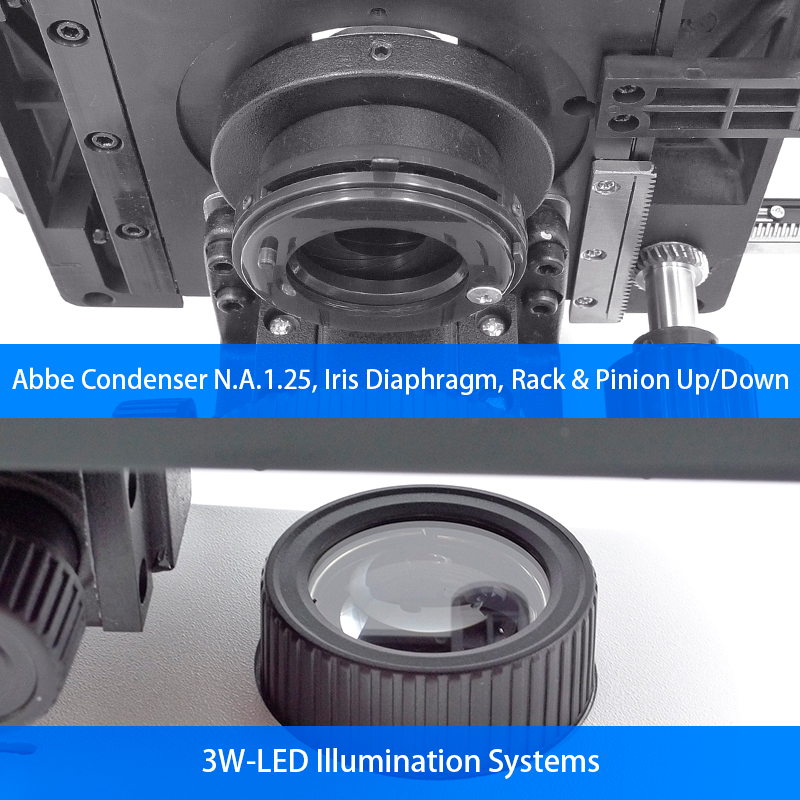

| Condenser | Abbe Condenser N.A.1.25, Iris Diaphragm, Rack & Pinion Up/Down, With Filter Holder | YR05788-op17 | ● | ● |
| Illumination | 3W-LED Illumination Systems | YR05788-op18 | ● | ● |

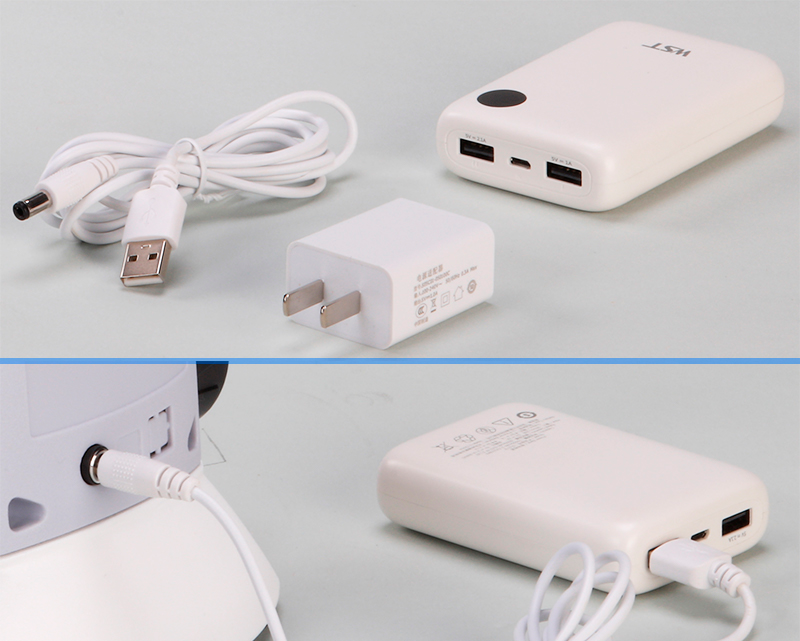

| Powered By Safety Low Voltage Charger, Input Wide Voltage 100V-240V, Output 5V1A, Support Power Bank Supply For Outdoor Use | - | |||
| 12V/20W Halogen Lamp, Power Supply Wide Voltage 100V~240V | YR05788-op20 | ○ | ○ | |
| 6V/30W Halogen Lamp, Power Supply Wide Voltage 100V~240V | YR05788-op21 | ○ | ○ | |
| Field Diaphragm | Upgrade To Kohler Illumnation | YR05788-op22 | ○ | ○ |
| Filter | Dia.45mm, Blue | YR05788-op23 | ○ | ○ |
| Dia.45mm, Green | YR05788-op24 | ○ | ○ | |
| Dia.45mm, Yellow | YR05788-op25 | ○ | ○ | |
| Dark Field | Dark Field Condenser, Dry, N.A.0.83-0.91, For 4x10x40x Objective | YR05788-op26 | ○ | ○ |
| Polarizing | Analyzer + Polarizer Set | YR05788-op27 | ○ | ○ |
| Phase Contrast | Infinity Plan Phase Contrast Objective 10x + Phase Contrast Slide 10x + Phase Contrast Condenser + Telescope 11x + Green Filter | YR05788-op28 | ○ | ○ |
| Infinity Plan Phase Contrast Objective 20x + Phase Contrast Slide 20x + Phase Contrast Condenser + Telescope 11x + Green Filter | YR05788-op29 | ○ | ○ | |
| Infinity Plan Phase Contrast Objective 40x + Phase Contrast Slide 40x + Phase Contrast Condenser + Telescope 11x + Green Filter | YR05788-op30 | ○ | ○ | |
| Infinity Plan Phase Contrast Objective 100x + Phase Contrast Slide 100x + Phase Contrast Condenser + Telescope 11x + Green Filter | YR05788-op31 | ○ | ○ | |
| Turret Phase Contrast Attachment | YR05788-op32 | ○ | ○ | |
| Infinity Plan Phase Contrast Objective 10x20x40x100x, Turret Phase Contrast Condenser 5-Holes, Telescope 11x, Green Filter | - | |||
| Adapter | C-Mount 0.5x, Focus Adjustable | YR05788-op33 | ○ | ○ |
| C-Mount 0.75x, Focus Adjustable | YR05788-op34 | ○ | ○ | |
| Mirror | Reflecting Mirror & Holder | YR05788-op35 | ○ | ○ |

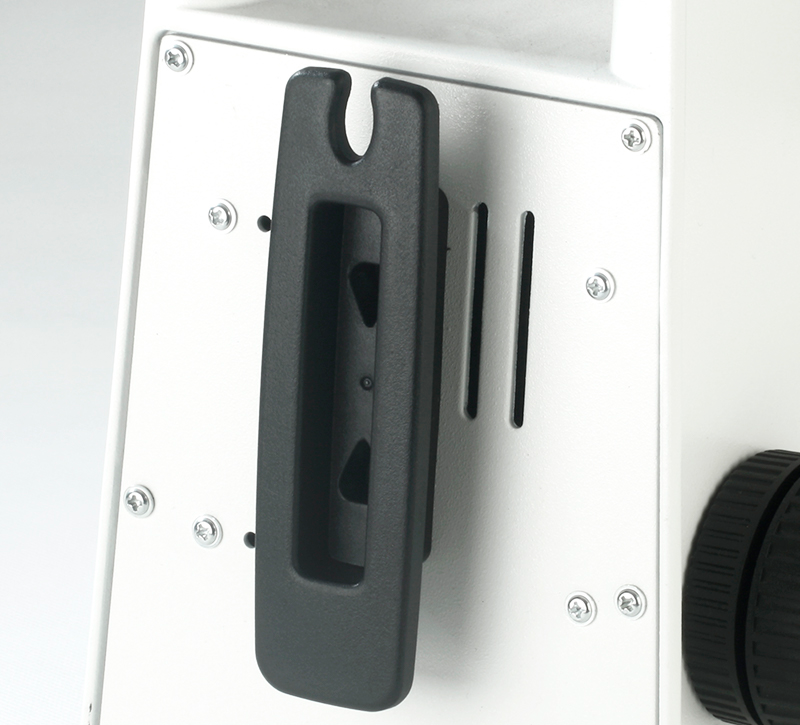

| Attachment | Wire Winding Device | YR05788-op36 | ○ | ○ |
| Package | Carton Size 390×280×450mm, 1 Unit/Ctn | |||
| Weight | Gross Weight: 7.5 kgs, Net Weight: 6.5 kgs | |||
| Note:"●"In Table Is Standard outfits,"○"Is Optional Accessories | ||||
Technical specifications
| Weight | 8.5 kg |
|---|---|
| Manufacturer | Kalstein |
Available models
Image gallery
Video Binocular Infinity Plan Laboratory Biological Microscope YR05787 - YR05788
Frequently asked questions
How to know the prices of Binocular Infinity Plan Laboratory Biological Microscope YR05787 - YR05788?
To know the price of Binocular Infinity Plan Laboratory Biological Microscope YR05787 - YR05788, please send us an email with your request through the contact form AQUI.
What are the delivery times for Binocular Infinity Plan Laboratory Biological Microscope YR05787 - YR05788?
Delivery time depends on stock availability and freight type (air or sea). In stock: air 15-30 days, sea 45-60 days. Out of stock: air 30-60 days, sea 60-90 days.
How to make a purchase of Binocular Infinity Plan Laboratory Biological Microscope YR05787 - YR05788?
You can buy by email ([email protected]), phone (+33 (0) 1 70 39 26 50) or through the official Kalstein website in your country.
How does the warranty work for Binocular Infinity Plan Laboratory Biological Microscope YR05787 - YR05788?
All Kalstein equipment comes with a 1-year warranty against manufacturing defects. The warranty does not cover damage from improper installation or misuse. See our «terms and conditions» AQUI.
Can I request a quote online for Binocular Infinity Plan Laboratory Biological Microscope YR05787 - YR05788?
Yes, you can request a quote for the Kalstein equipment you are interested in directly from our official website. Click AQUI.
