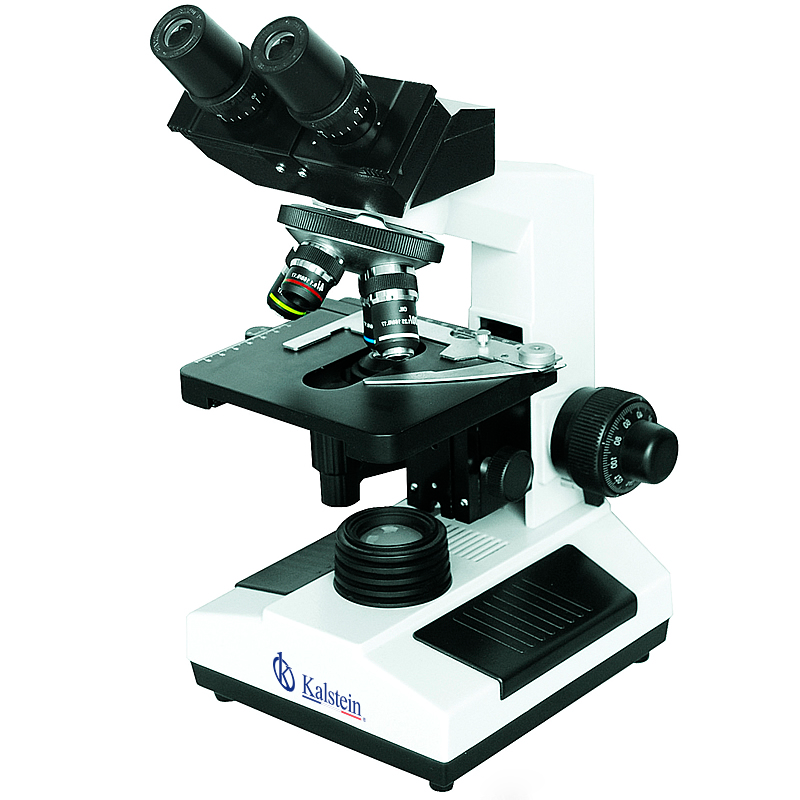

Binocular Student Biological Microscope YR0242 // YR0242-1

ManufacturerKalstein

Description

The Binocular Student Biological Microscope YR0242 is an exceptional scientific tool designed for educational and laboratory settings. This microscope features a 195mm achromatic objective lens and a mechanical tube length of 160mm, offering a magnification range from 40x to 1000x. With options for monocular, binocular, and trinocular heads, this microscope provides a versatile user experience. The anti-mould system ensures durability and longevity, especially in educational environments where maintenance might be a concern. Its double-layer mechanical stage and low-position coaxial coarse and fine focus system enhance usability by providing precise control and focus. Order now and experience unparalleled clarity and precision in your scientific endeavors.

Market Price

The market price for student biological microscopes similar to the YR0242 typically ranges from 400 USD to 1,200 USD. Given its superior features, such as the anti-mould system and the wide field eyepiece, the YR0242 is competitively priced within this range, offering excellent value for educators and laboratory professionals. For specific pricing and to receive a customized quote, be sure to utilize the Kalstein Plus platform.

Frequently Asked Questions

1. What makes the YR0242 microscope suitable for students?
The YR0242 is designed with user-friendly features such as adjustable magnification, a robust anti-mould system, and easy-to-use focusing knobs, making it ideal for educational purposes.

2. Can the YR0242 be used for professional laboratory work?
Yes, its high magnification range and precision focusing capabilities make it suitable for both educational and professional settings.

Advantages and Disadvantages

Advantages:

  • Wide magnification range from 40x to 1000x.
  • Durable anti-mould system ideal for varying environments.
  • Precise focusing with a fine scale of 0.002mm.

Disadvantages:

  • Initial setup might require guidance for first-time users.
  • Replacement parts may vary in availability based on location.

Field Use

This microscope is widely used in educational labs, enabling students to observe biological samples with clarity. It’s also suitable for field research, providing versatility with its portable design and sturdy build, ensuring it can withstand different environmental conditions.

Recommendations

To maximize the life and performance of the YR0242, keep the lens and optical components clean and free from dust. Regularly check the mechanical parts for smooth operation and store the microscope in a cool, dry place when not in use. For any adjustments or customization, professionals are encouraged to explore the accessories available through the Kalstein Plus platform.

Features

  • Anti-mould system head available.
  • 195mm achromatic objectives, mechanical tube length 160mm.
  • WF10x/18mm wide field eyepiece included.
  • Optional monocular, binocular, trinocular heads.
  • Double layer mechanical stage with moving range 50*75mm.
  • Low position coaxial coarse & fine focus system.

Technical Specifications

Model YR0242 YR0242-1
Magnification 40x~1000x
Head Sliding Binocular Head, 45° Inclined o
Sliding Binocular Head, 45° Inclined, Anti-Mould System o
Eyepiece Wide Field WF10x/18mm
Nosepiece Quadruple Nosepiece
Objective Achromatic 4x/0.10, 10x/0.25, 40xs/0.65, 100xs/1.25(Oil)
Stage Double Layer Mechanical Stage, 140*140mm, Mvoing Range 50*75mm
Focusing Coaxial Coarse & Fine Focusing. Fine Focusing Scale 0.002mm, Coarse Focusing Stroke 37.7mm/Rotation, With Tension Adjustment, With Up Limit
Rubber Cover On Focusing Knob o
Condenser N.A.1.25 Abbe Condenser, Iris Diaphargm, With Filter Holder
Filter Blue, Yellow, Green
Light Source Plan-Concave Mirror
Built-in Illumination 6V20W Halogen Lamp, 100~240V
YR0242 Biological Microscope Optional Accessories
Head Sliding Trinocular Head, 45° Inclined, Anti-Mould System YR0242-1-op1
Seidentopf Binocular Head, 30° Inclined, Anti-Mould System YR0242-1-op2
Seidentopf Trinocular Head, 30° Inclined, Anti-Mould System YR0242-1-op3
Eyepiece Wide Field Eyepiece P16x/11mm YR0242-1-op4
Nosepiece Quintuple Nosepiece YR0242-1-op5

Additional information

Weight 6,5 kg
Model

YR0242, YR0242-1
