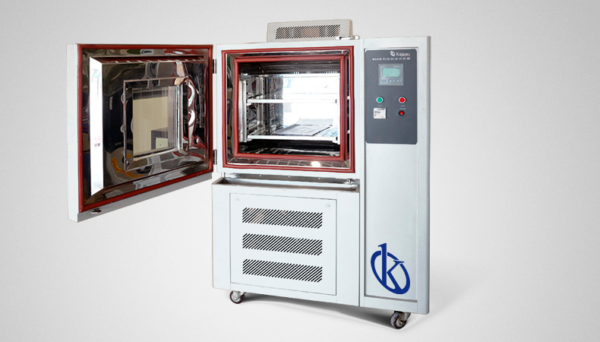

Environmental Chamber YR05340 // YR05346-1

ManufacturerKalstein

Description

The Environmental Chamber YR05340 / YR05346-1 is a cutting-edge tool designed to meet diverse laboratory environmental testing needs. This state-of-the-art chamber ensures stable and precise temperature control with its innovative balanced temperature regulation mode. Featuring a comprehensive array of temperature and humidity settings, it perfectly caters to the specific requirements of electrical and electronic product testing. A combination of aesthetic appeal and robust performance makes the Environmental Chamber YR series an essential component in any advanced laboratory setting.

Market Price

The Environmental Chamber YR05340 / YR05346-1 is competitively priced within the market, with a typical range from approximately $5300 to $6100 USD. This price range reflects the advanced technological features and high-performance capabilities that the chamber offers, providing excellent value for those seeking precision and reliability in environmental testing.

Frequently Asked Questions

  • What is the temperature range of the Environmental Chamber?
    It operates between -40°C to 150°C, depending on the specific model.
  • What humidity levels can it regulate?
    The chamber provides humidity control ranging from 20% to 98%.
  • Is it easy to operate?
    Yes, the chamber boasts simple controls along with an automatic selection function for its cooling circuit operation.
  • Does it have safety features?
    Yes, it includes an overpressure protection compressor and over-temperature alarm functions for enhanced safety.

Advantages and Disadvantages

The Environmental Chamber offers numerous benefits, such as precise temperature and humidity control, a user-friendly interface, and reliable test results. Its design includes a large observation window, facilitating test monitoring. However, the advanced features may require a significant initial investment and specialized knowledge for optimal operation.

Field Use

In practical situations, the Environmental Chamber is crucial for conducting stringent tests on electrical and electronic products, ensuring compliance with regulatory standards before market entry. It is integral to product development, quality assurance, and research across various fields, including electronics and materials science.

Recommendations

To ensure optimal performance, regular calibration of the chamber is recommended to maintain testing accuracy. Users should also focus on proper maintenance of the sealing and safety systems to extend the equipment’s lifespan. For inquiries or to find the best deal, leverage the Kalstein Plus platform for automatic quotes tailored to your laboratory’s needs.

Features

  • Wide temperature and humidity regulation range
  • Balanced temperature regulation mode with high precision
  • Automatic cold circuit selection
  • Overpressure protection and temperature alarm functions
  • Large observation window for easy monitoring
  • Double-layer door seal to retain energy

Technical Specifications

Model Description Humidity Range Cooling Range – Heating up Range Power(W) Internal Dims (mm) External Dims(mm)
YR05340 220±10% (-20/0 – 150℃) 20-98%

0.7~1.0℃/min

1~3℃/min

3500 500x400x400 1420x1000x870
YR05340-1 220±10% (-40 – 150℃) 3500 500x400x400 1420x1000x870
YR05342 220±10% (-20/0 – 150℃) 20-98% 3500 600x500x500 1500x1050x1130
YR05342-1 220±10%(-40 – 150℃) 3500 600x500x500 1500x1050x1130
YR05343 220±10% (-20/0 – 150℃) 20-98% 4500 750x600x500 1700x1120x1100
YR05343-1 220±10%(-40 – 150℃) 4500 750x600x500 1700x1120x1100
YR05344 380±10% (-20/0 – 150℃) 20-98% 6500 850x800x600 1860x1320x1270
YR05344-1 380±10% (-40 – 150℃) 6500 850x800x600 1860x1320x1270
YR05345 380±10% (-20/0 – 150℃) 20-98% 8000 1000x1000x800 1880x1520x1460
YR05345-1 380±10% (-40 – 150℃) 8000 1000x1000x800 1880x1520x1460
YR05346 380±10% (-20/0 – 150℃) 20-98% 3000 400x350x350 1420x560x860
YR05346-1 380±10% (-40 – 150℃) 3000 400x350x350 1420x560x860

Additional information

Model

YR05340, YR05340-1, YR05342, YR05342-1, YR05343, YR05343-1, YR05344, YR05344-1, YR05345, YR05345-1, YR05346, YR05346-1
