Grating Spectrophotometer YR05493
Grating Spectrophotometer YR05493 — equipo de laboratorio Kalstein con especificaciones técnicas, características avanzadas y soluciones profesionales certificadas para uso científico.
The Grating Spectrophotometer YR05493 is an advanced instrument designed to deliver precise color measurements across various industries, including plastics, electronics, textiles, automotive, and food. Developed by Kalstein with three years of intensive research, this spectrophotometer offers superior adaptability with its multiple measuring apertures and an optical resolution of less than 10 nm in the visible range. Its core features, such as the use of a silicon photodiode array sensor and full spectrum LED light source, ensure an unmatched performance in color transmission and color matching, making it an essential tool for laboratories and research institutions worldwide.
Price in the Market
The average market price for a grating spectrophotometer can range from approximately $9,000 to $10,000 USD. The pricing depends on features, precision levels, and brand reputation. This makes the YR05493 a competitively priced option considering its advanced specifications and capabilities. For an exact quote tailored to your needs, we recommend using Kalstein Plus to generate an automatic quotation or contacting our sales team directly.
Frequently Asked Questions
Q: What industries can benefit from using the YR05493 spectrophotometer?
A: Industries such as plastics, electronics, textiles, automotive, medical, cosmetics, and food processing can greatly benefit from its precise color measurement capabilities.
Q: How does the spectrophotometer ensure accurate results?
A: It achieves accuracy through its silicon photodiode array sensor, built-in camera positioning for target alignment, and compliance with international color measurement standards.
Advantages and Disadvantages
Advantages: The YR05493 offers high precision color measurements, multiple interchangeable apertures for diverse sample types, and long-lasting LED illumination. Its ergonomically designed structure enhances user experience.
Disadvantages: Due to its advanced features, the YR05493 may involve a learning curve for new users unfamiliar with spectrophotometry.
Field Usage
The YR05493 is extensively used in laboratories for quality control and research purposes, providing accurate data for color matching and analysis. Its robust design allows for field deployment in quality assurance processes across production lines.
Recommendations
To maximize the device's lifespan and maintain consistent performance, ensure regular calibration using the enclosed black and white calibration plates. Avoid frequent battery charging cycles to preserve battery life.
Features
- Equipped with three measuring apertures for versatile sample analysis.
- Full spectrum LED light source for consistent spectral data.
- High-resolution measurement using grating spectroscopic technology.
- Intuitive camera positioning for precise target alignment.
- Broad compatibility with international colorimetry standards.
Technical Specifications
| Model | YR05493 |
| Optical Geometry | D/8 (diffused illumination, 8-degree viewing angle) |
| SCI (specular component included)/SCE (specular component excluded) ; Include UV / excluded UV light source | |
| Conforms to CIE No.15, GB/T 3978,GB 2893,GB/T 18833,ISO7724-1,ASTM E1164,DIN5033 Teil7 | |
| Characteristic | 3 measuring apertures for accurate color analysis and transmission in laboratory |
| It is used for precise color measurement and quality control in plastic electronics, paint and ink, textile and garment printing and dyeing, printing, ceramics and other industries, and for fluorescent sample measurement. | |
| Integrating Sphere Size | Φ40mm |
| Light Source | Combined full spectrum LED light source, UV light source |
| Spectrophotometric Mode | Flat Grating |
| Sensor | Silicon photodiode array (double row 40 groups) |
| Wavelength Range | 400~700nm |
| Wavelength Interval | 10nm |
| Semiband Width | 10nm |
| Measured Reflectance Range | 0-200% |
| Measuring Aperture | 3 apertures: MAV:Φ8mm/Φ10mm；SAV:Φ4mm/Φ5mm;LAV:1x3mm |
| LAV1x3mm: Slightly poor accuracy, can be used for color test | |
| Specular Component | SCI&SCE |
| Color Space | CIE LAB,XYZ,Yxy,LCh,CIE LUV,s-RGB,HunterLab,βxy,DIN Lab99 Munsell(C/2)) |
| Color Difference Formula | ΔE*ab,ΔE*uv,ΔE*94,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*00, DINΔE99,ΔE(Hunter) |
| Other Colorimetric Index | WI(ASTM E313,CIE/ISO,AATCC,Hunter), |
| YI(ASTM D1925,ASTM 313), | |
| Metamerism Index MI, | |
| Staining Fastness, Color Fastness, Color Strength, Opacity, | |
| 8° Glossiness,555 tone classification | |
| Observer Angle | 2°/10° |
| Illuminant | D65,A,C,D50,D55,D75,F1,F2(CWF),F3,F4,F5,F6,F7(DLF),F8,F9,F10(TPL5),F11(TL84),F12(TL83/U30) |
| Displayed Data | Spectrogram/Values, Samples Chromaticity Values, Color Difference Values/Graph, PASS/FAIL Result, Color Offset |
| Measuring Time | About 1.5s (Measure SCI & SCE about 3.2s) |
| Repeatability | Spectral reflectance: MAV/SCI, Standard deviation within 0.08% (400 nm to 700 nm: within 0.18%) |
| Chromaticity value: MAV/SCI, within ΔE*ab 0.03 ( When a white calibration plate is measured 30 times at 5 second intervals after white calibration) | |
| Inter-instrument Error | MAV/SCI, Within ΔE*ab 0.15 |
| (Average for 12 BCRA Series II color tiles) | |
| Measurement Mode | Single Measurement, Average Measurement(2-99times) |
| Locating Method | Camera Locating,stabilizer cross position |
| Dimension | L*W*H=129X76X217mm |
| Weight | Approx 600g |
| Battery | Li-ion battery, 6000 measurements within 8 hours |
| Illuminant Life Span | 5 years, more than 3 million times measurements |
| Displayed Data | 3.5-inch TFT color LCD, Capacitive Touch Screen |
| Data Port | USB, Bluetooth 4.2 |
| Data Storage | Standard 1000 Pcs, Sample 30000 Pcs |
| Language | Simplified Chinese, English, traditional Chinese |
| Operating Environment | 0~40℃, 0~85%RH (no condensing), Altitude < 2000m |
| Storage Environment | -20~50℃, 0~85%RH (no condensing) |
| Standard Accessory | Power Adapter, User Guide, PC Software(Download from office website), USB cable, White and Black Calibration Cavity, Protective Cover, Wrist strap, 8mm flat aperture, 8mm tip aperture, 4mm flat aperture, 4mm tip aperture,1x3mm tip aperture |
| Optional Accessory | Micro Printer, Powder Test Box, Holding base |
| Notes | The specifications are subject to change without notice. |
Technical specifications
| Weight | 2 kg |
|---|---|
| Manufacturer | Kalstein |

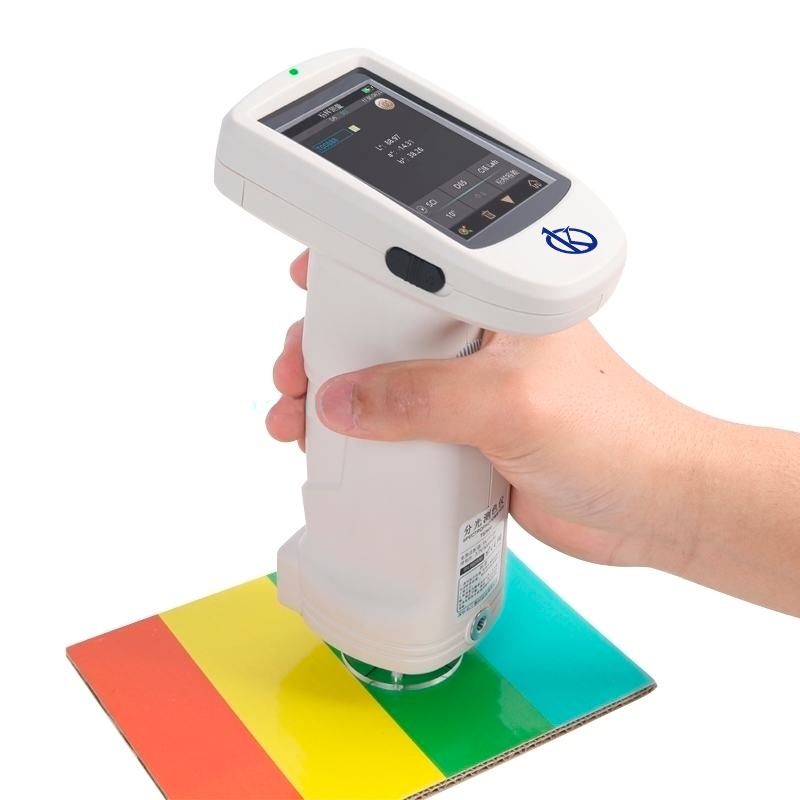

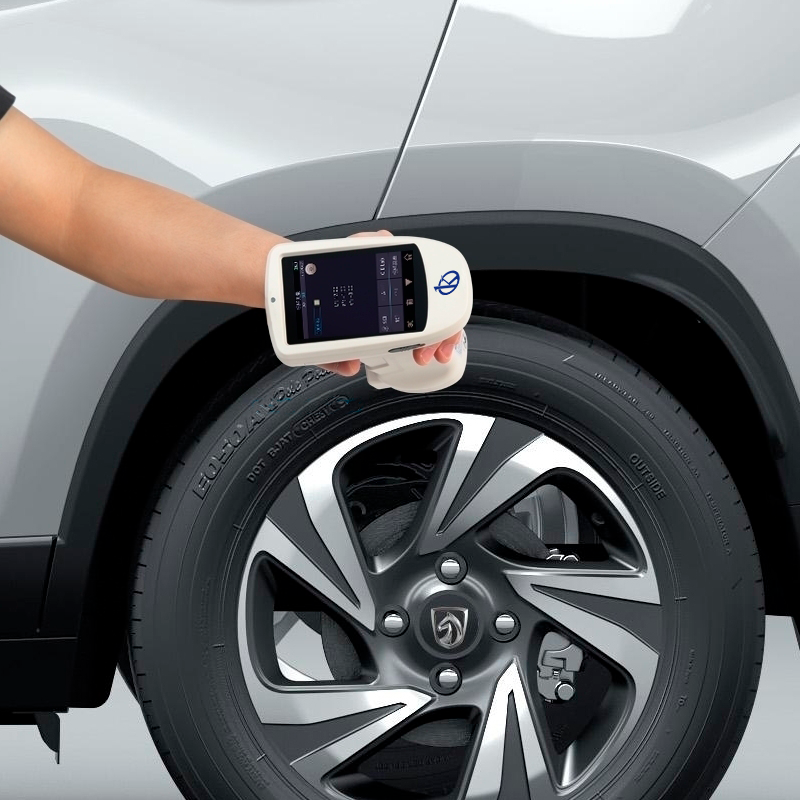

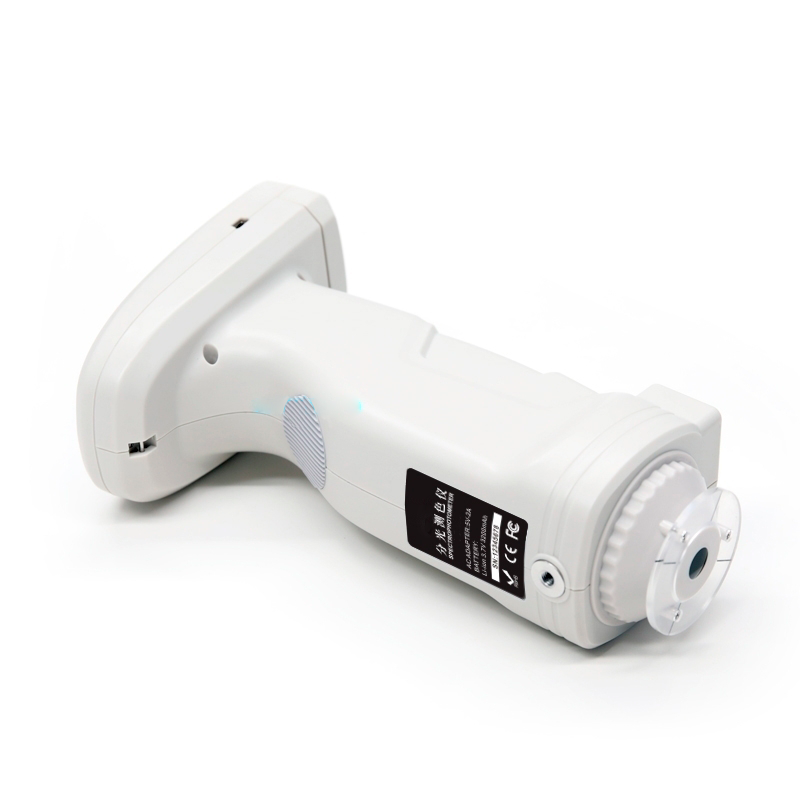

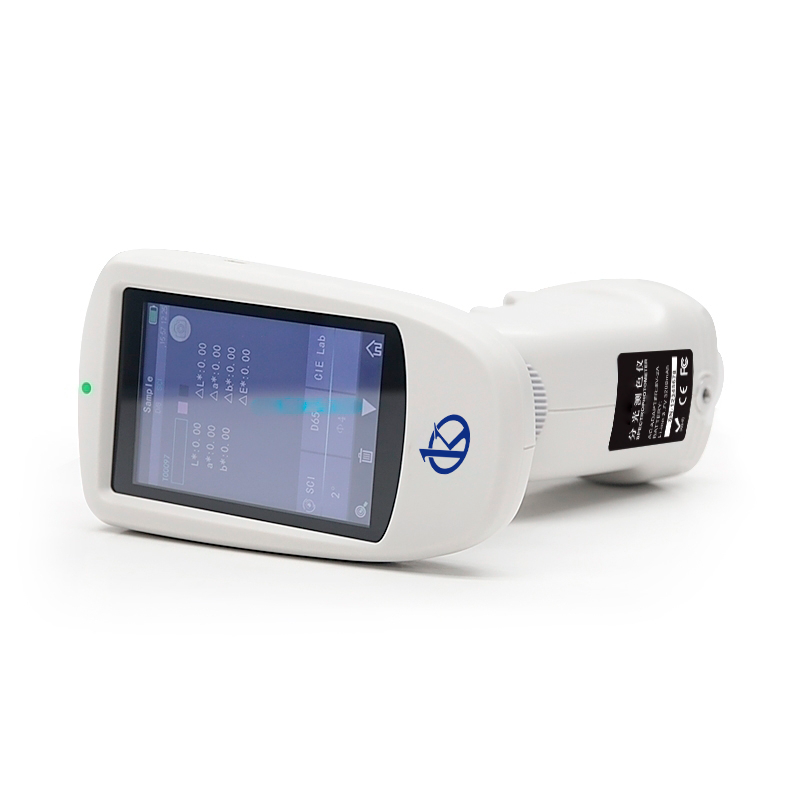

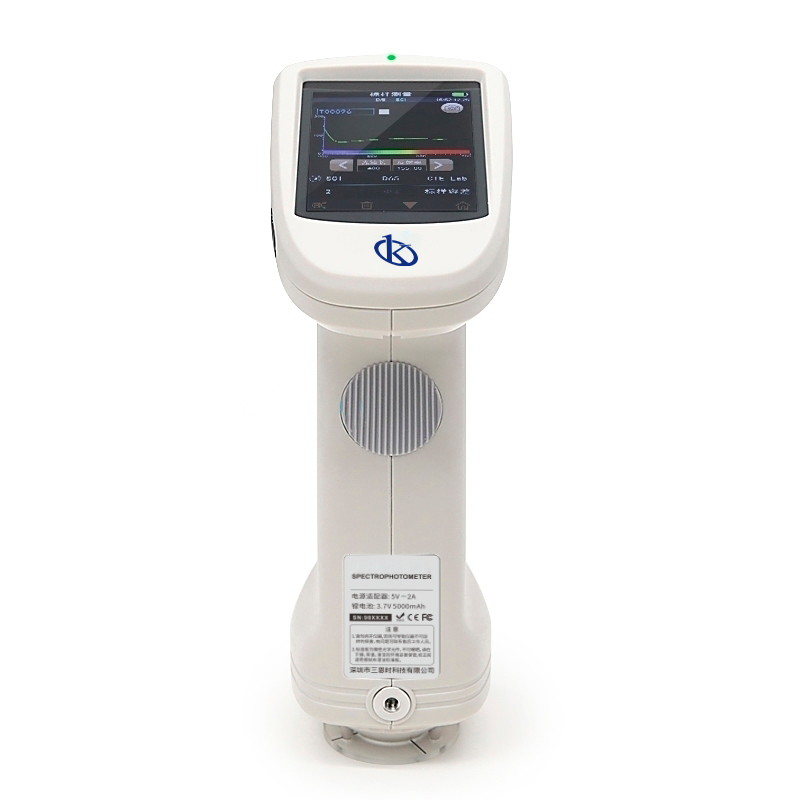

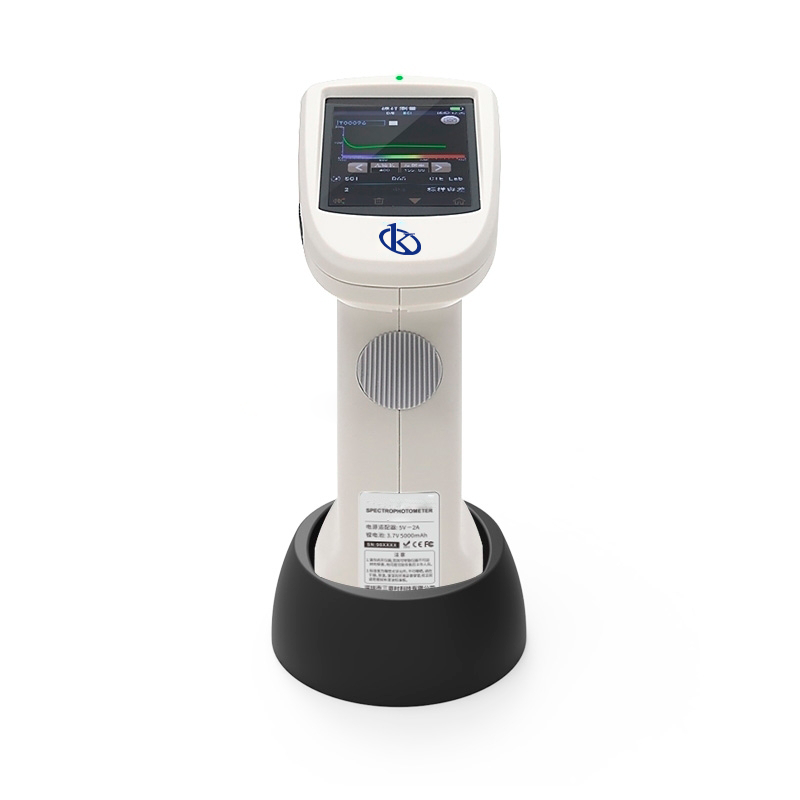

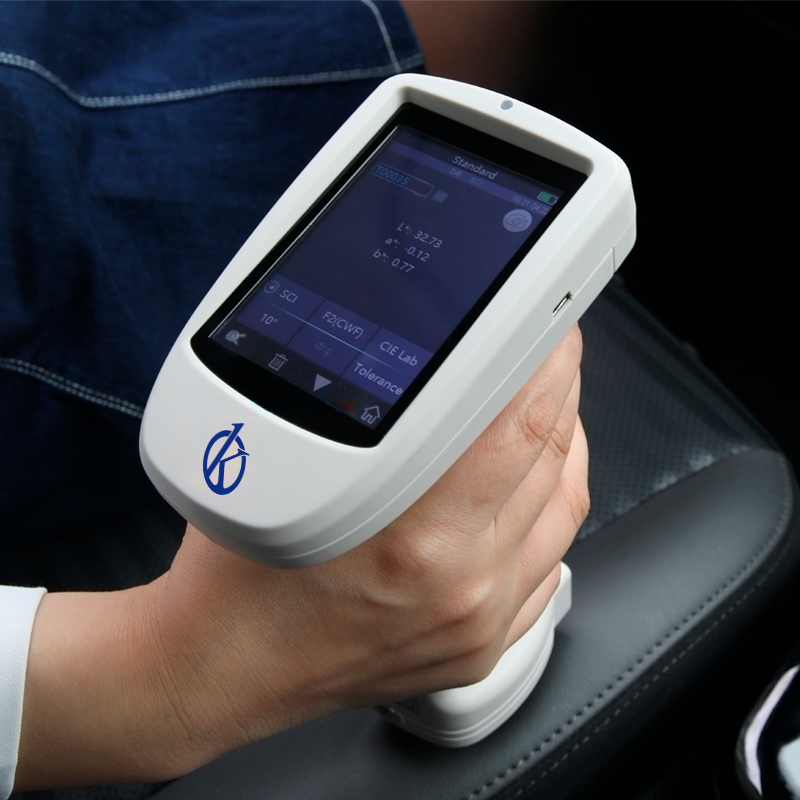

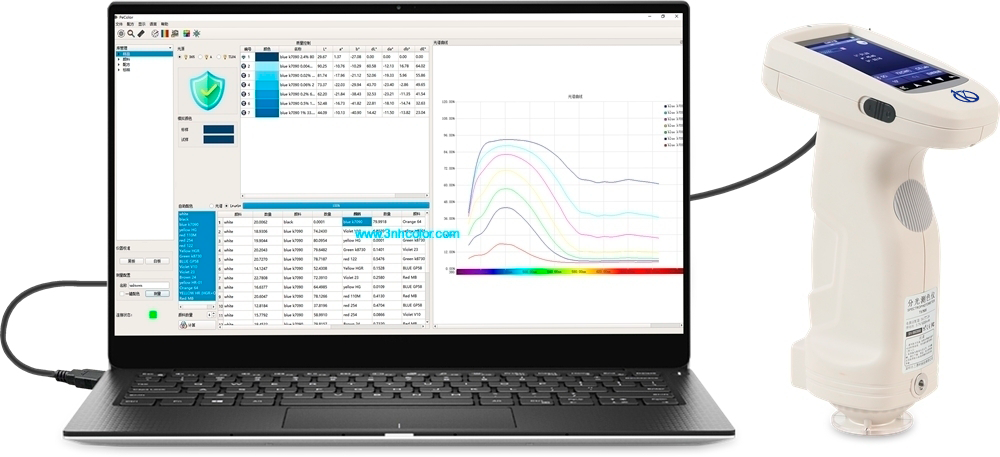

Image gallery
Video Grating Spectrophotometer YR05493
Frequently asked questions
How to know the prices of Grating Spectrophotometer YR05493?
To know the price of Grating Spectrophotometer YR05493, please send us an email with your request through the contact form AQUI.
What are the delivery times for Grating Spectrophotometer YR05493?
Delivery time depends on stock availability and freight type (air or sea). In stock: air 15-30 days, sea 45-60 days. Out of stock: air 30-60 days, sea 60-90 days.
How to make a purchase of Grating Spectrophotometer YR05493?
You can buy by email ([email protected]), phone (+33 (0) 1 70 39 26 50) or through the official Kalstein website in your country.
How does the warranty work for Grating Spectrophotometer YR05493?
All Kalstein equipment comes with a 1-year warranty against manufacturing defects. The warranty does not cover damage from improper installation or misuse. See our «terms and conditions» AQUI.
Can I request a quote online for Grating Spectrophotometer YR05493?
Yes, you can request a quote for the Kalstein equipment you are interested in directly from our official website. Click AQUI.
