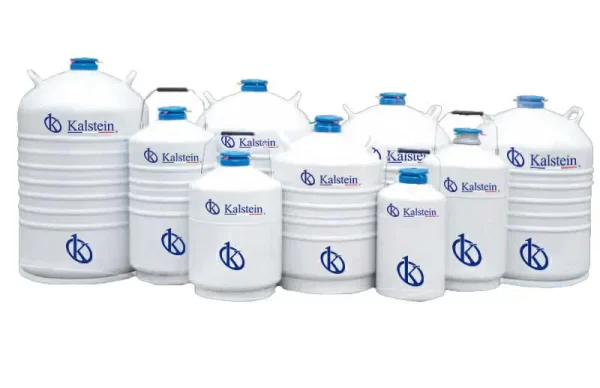

High Capacity Series for Storage or Transport (Round Canisters) YR05383 // YR05392

Description

The High Capacity Series for Storage or Transport (Round Canisters) YR05383 // YR05392 offers an excellent solution for your storage or transport needs with its robust yet lightweight aluminum construction. These round canisters are specially designed to ensure the security and efficiency of your storage, particularly when dealing with sensitive biological samples. With features such as a heavy-duty lockable enclosure and high thermal efficiency, these canisters are a go-to choice for reliability and performance.

Market Price

In the competitive market of storage canisters, prices typically range between $400 and $800. This range considers the high-quality materials and advanced features that are part of the High Capacity Series for Storage or Transport. The investment in these canisters will provide long-term value due to their durability and efficiency.

Frequently Asked Questions

What is the capacity of these canisters?
The canisters are available in different models capable of holding several different capacities, with options accommodating up to 2244 straws in single-layer settings.

Are the canisters lockable?
Yes, all models feature a heavy-duty lockable enclosure to ensure the security of your contents.

How long is the warranty?
The canisters include a 5-year vacuum warranty to assure quality and performance.

Advantages and Disadvantages

The primary advantages of the High Capacity Series for Storage or Transport include strong aluminum construction, high thermal efficiency, and ultra-low evaporation loss, which extend the storage times of liquid nitrogen. One potential disadvantage is the cost, as investment in quality storage solutions may be higher than alternatives, but is offset by the long-term efficiency and security it provides.

Usage in the Field

These canisters are designed to excel in laboratory and transport settings, offering easy access to biological samples due to their wide neck design in large-capacity models. Their numbered index location system facilitates organization and quick retrieval in high-demand situations such as research labs or biobanks.

Recommendations

To ensure optimal performance, it is recommended to handle the canisters with care, regularly check the lock mechanisms, and maintain appropriate levels of liquid nitrogen. Using protective jackets also helps safeguard the canisters during transport or storage.

Features

Strong and lightweight aluminum construction
Heavy-duty lockable enclosure for excellent security
Numbered index location points for canisters
Straw storage capability
Wide range of capacity and model choices
High thermal efficiency with ultra-low evaporation loss
Includes LN dispenser and roller bases
5-year vacuum warranty for assured reliability

Technical Specifications

Model		YR05383	YR05384	YR05385	YR05386	YR05387	YR05388
Maximum Capacity	No. of Canister	3 (0)	3 (3)	6 (0)
	No. of Straws (Single Layer) (0.5ml each canister)	90	165	792
	No. of Straws (Single Layer) (0.25ml each canister)	204	330	1788
	No. of Straws (Double Layer) (0.5ml each canister)	—	—	—		—
	No. of Straws (Double Layer) (0.25ml each canister)	—	—	—		—
Performance	Volume of LN2 (L)	2	2	3		6
	*Static Evapouration (L/Day)**	0.07	0.08	0.12		0.12
	Static Holding Time (Day)**	28	24	26		52
Dimensions	Opening Diameter (mm)	30	35	50		50
	Height (mm)	399	428	435		482
	Outside Diameter (mm)	223	204	223		300
	Canister Outside Diameter (mm)	19	25	38		38
	Outside Height (mm)	120	120	120		120
	Empty Weight (kg)	2.8	2.6	3.1		4.8
	Full Weight (kg)	4.5	4.4	6		9.9
	Shipping Weight (kg)	5.1	4.9	5.8		8
Aditional Features		Includes 3 canisters, lockable cap and protective jacket	Includes 3 canisters, lockable cap and braces for carrying, no protective jacket	Includes 6 canisters (height 120mm), lockable cap and protective jacket	Includes protective jacket only	Includes 6 canisters (height 120mm), lockable cap and protective jacket	Includes protective jacket only

Model		YR05389	YR05390		YR05391	YR05392
Maximum Capacity	No. of Canister	6 (0)
	No. of Straws (Single Layer) (0.5ml each canister)	792			2244
	No. of Straws (Single Layer) (0.25ml each canister)	1788			5022
	No. of Straws (Double Layer) (0.5ml each canister)	—			—
	No. of Straws (Double Layer) (0.25ml each canister)	—			—
Performance	Volume of LN2 (L)	10
	*Static Evapouration (L/Day)**	0.12			0.21
	Static Holding Time (Day)**	86			48
Dimensions	Opening Diameter (mm)	50			80
	Height (mm)	552			557
	Outside Diameter (mm)	300			300
	Canister Outside Diameter (mm)	38			63
	Outside Height (mm)	120			120
	Empty Weight (kg)	6.1			6.2
	Full Weight (kg)	14.5			S
	Shipping Weight (kg)	9			9.3
Aditional Features		Includes 6 canisters (height 120mm), lockable cap and protective jacket	Includes protective jacket only		Includes 6 canisters (height 120mm), lockable cap and protective jacket	Includes protective jacket only

Additional information

Weight	N/A
Model	YR05383, YR05384, YR05385, YR05386, YR05387, YR05388, YR05389, YR05390, YR05391, YR05392
