Inverted Metallurgical Microscope YR0258
Inverted Metallurgical Microscope YR0258 — Kalstein laboratory equipment with technical specifications, advanced features, and certified professional solutions for scientific use.

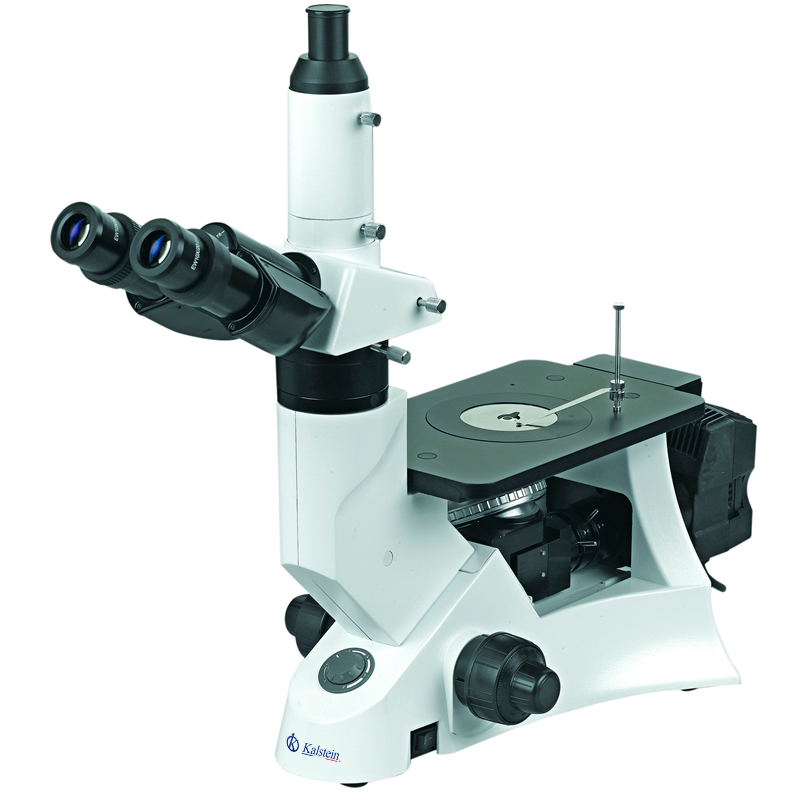

The Inverted Metallurgical Microscope YR0258 is a sophisticated instrument designed to provide exceptional optical clarity and reliable performance for material analysis. With its stable support structure and advanced stage design, it stands out as a preferred choice in research institutes and laboratories for examining the intricate details of various metals and materials. Its infinity optical system ensures high image quality, while the Seidentopf Trinocular Head, inclined at 30°, offers comfortable viewing. The YR0258 microscope is equipped with extra-wide field eyepieces, quintuple nosepiece, and Infinity Plan Metallurgical Coverless Achromatic Objectives, making it an excellent tool for detailed metallurgical investigations.
Market Price
The Inverted Metallurgical Microscope YR0258 is competitively priced in the market, with an average price range of $2500 to $3300. This price reflects the advanced optical capabilities and robust construction of the microscope, making it an excellent investment for professionals in the field. It is important to note that slight variations in price can occur depending on optional accessories and specific vendor offerings.
Frequently Asked Questions
Q: What materials can be analyzed using the YR0258 microscope?
A: The YR0258 is versatile and can analyze a wide range of metal structures and other material compositions, making it ideal for metallurgical and industrial applications.
Q: Does the microscope come with lighting accessories?
A: Yes, it features an external Kohler illumination system with a 6V30W halogen lamp, offering adjustable brightness for optimal viewing conditions.
Advantages and Disadvantages
Advantages:
- High-quality infinity optical system for superior image clarity.
- Compatible with multiple objectives for varied magnification needs.
- Durable construction suitable for frequent use in labs.
Disadvantages:
- Requires careful handling to maintain the delicate optical components.
- Additional cost may be incurred for optional accessories not included in the base model.
Usage in the Field
The YR0258 Inverted Metallurgical Microscope is prominently used in metallurgical labs for detailed analysis of metal grain structures and material properties. It functions efficiently in identifying material defects, aiding in quality control processes in manufacturing industries. Thanks to its precision optical system, it provides researchers with critical insights required for developing new metallurgical processes and materials.
Recommendations
For maximizing the utility and lifespan of the YR0258 microscope, users should regularly clean the lenses and ensure components are free from dust and moisture. When switching between objectives, handle them with care to prevent misalignment or damage. Utilize the microscope in a controlled environment to maintain optimum performance levels.
Features
- Infinity optical system for high optical image quality
- Eyepiece Eyepiece EW10x/20mm
- Infinity PlanMetallurgicalCoverless achromatic objective
- Kohler 6V30W external lighting halogen lamp
Technical Specifications
| Model | YR0258 | ||
| Optical System | Infinity Optical System | ||

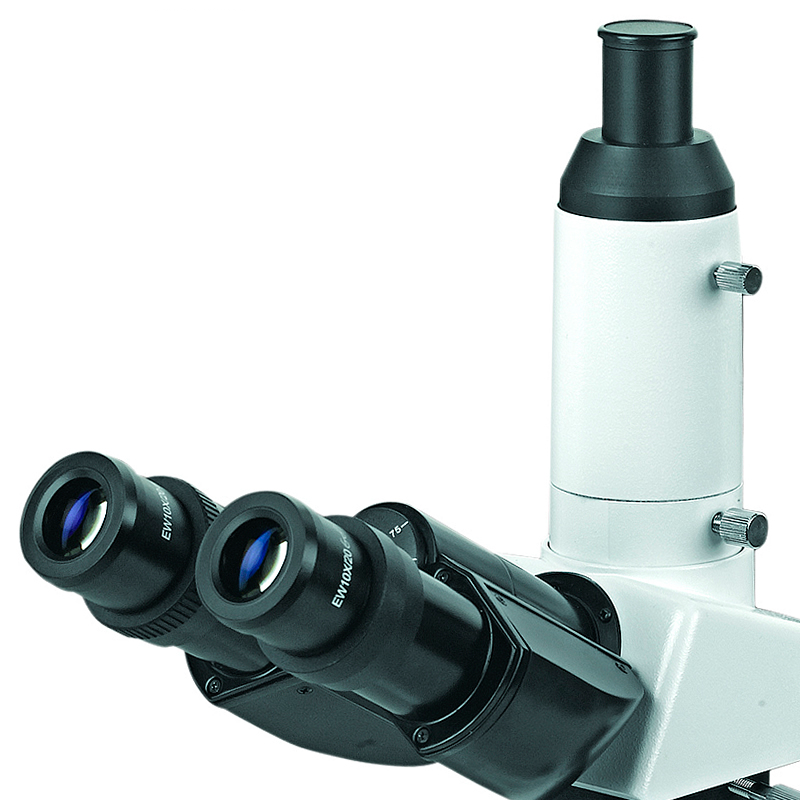

| Head | Seidentopf Trinocular Head, 30° Inclined, Interpupillary 48~75mm, Diopter Adjustable | ||
| Eyepiece | Extra Wide Field Eyepiece EW10x/20mm, High Eyepoint | ||
| Nosepiece | Quintuple Nosepiece | ||
| Objective | Infinity Plan MetallurgicalCoverless Achromatic Objective | 4x/0.1/∞/-, W.D.17.3mm | |
| 10x/0.25/∞/-,W.D.10.2mm | |||
| 20x/0.4/∞/-,W.D.5.1mm | |||
| 40x/0.65/∞/-, W.D.0.52mm | |||

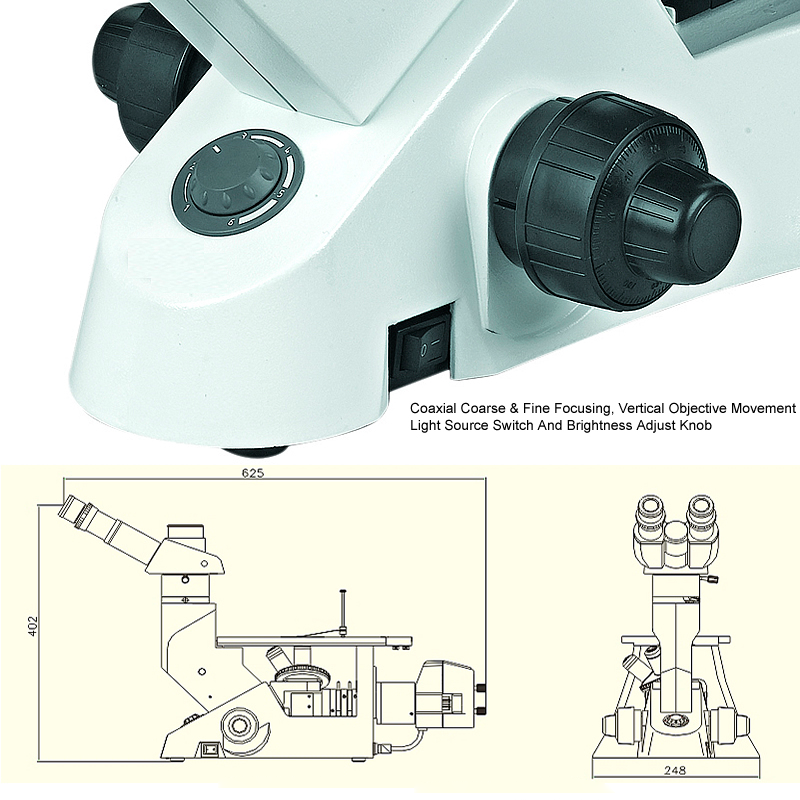

| Focusing | Coaxial Coarse & Fine Adjustment, Coarse Stroke 37.7mm Per Rotation, Fine Stroke 0.2mm Per Rotation | ||

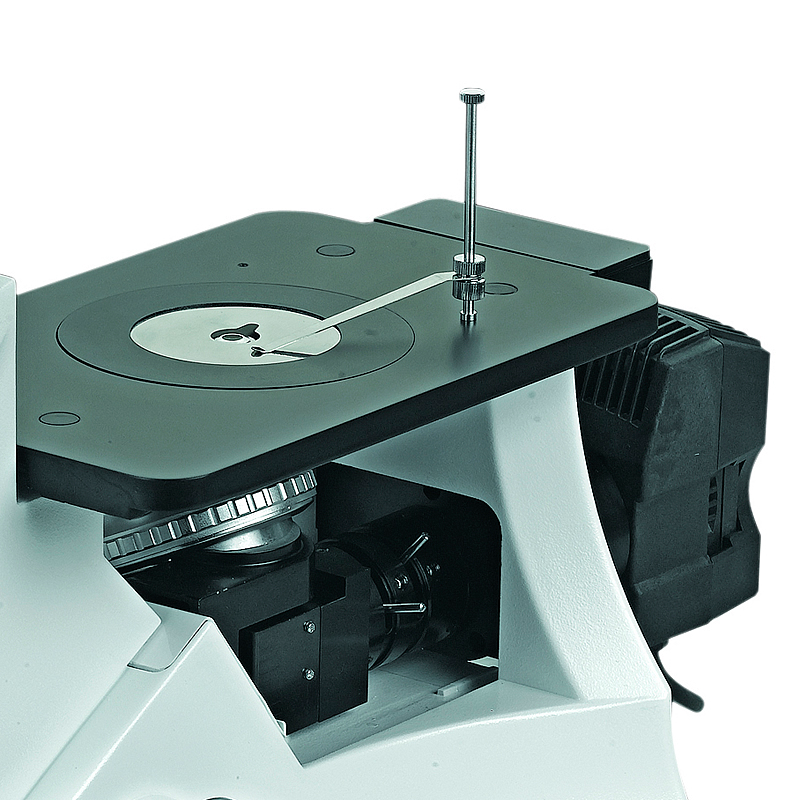

| Working Stage | Plain Stage 160*250mm With Slide Clips | ||
| Polarizing | Polarizing Attachment | ||
| Filter | Green, Blue, Yellow, Ground Glass, Dia.45mm | ||
| Illumination | External Kohler Illumination, Halogen Lamp 6V30W, Brightness Adjustable | ||
| Optional Accesories | |||
| Objective | Infinity Plan MetallurgicalCoverless Achromatic Objective | 5x/0.12/∞/-, W.D.15.4mm | YR0258-op1 |
| 50x/0.75/∞/-, W.D.0.32mm | YR0258-op2 | ||
| 80x/0.9/∞/-, W.D.0.20mm | YR0258-op3 | ||
| 100x/0.9/∞/0, W.D.0.7mm | YR0258-op4 | ||
| Wokring Stage | Attachable Mechanical Stage, X-Y Coaxial Control, Moving Range 120*78mm | YR0258-op5 | |
| Auxiliary Stage 70*180mm | YR0258-op6 | ||
| Adapter | Photo Adapter | YR0258-op7 | |
| C-Mount 1.0x | YR0258-op8 | ||
| C-Mount 0.5x | YR0258-op9 | ||
Technical specifications
| Weight | 15 kg |
|---|---|
| Manufacturer | Kalstein |
