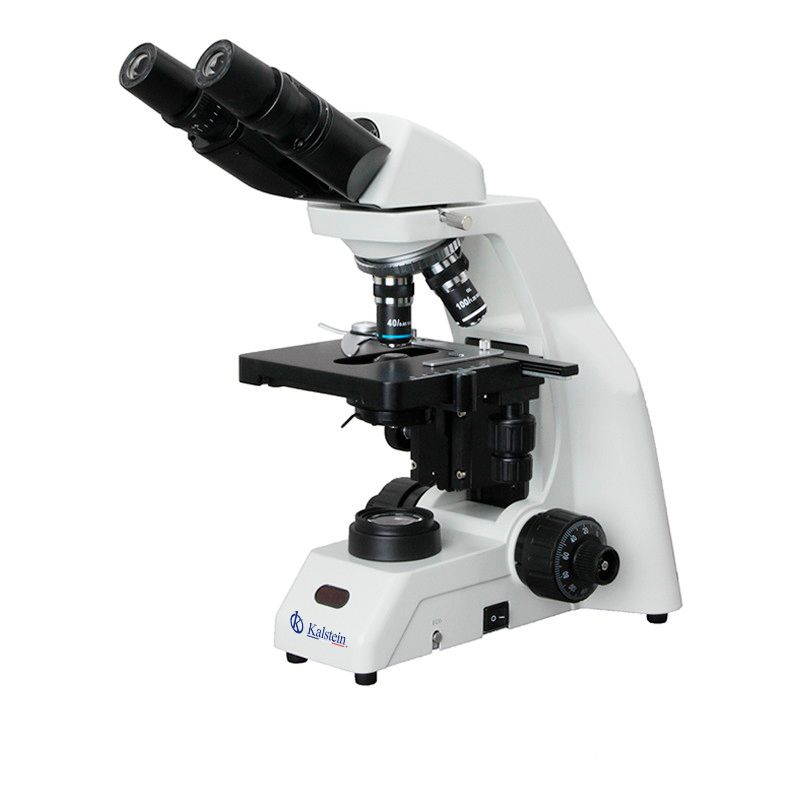

Laboratory Microscope YR0239 - YR0240
Laboratory Microscope YR0239 - YR0240 — equipo de laboratorio Kalstein con especificaciones técnicas, características avanzadas y soluciones profesionales certificadas para uso científico.
The Laboratory Microscope YR0239 - YR0240 is a state-of-the-art optical instrument crafted for precision and clarity, making it ideal for scientific research and educational purposes. It features a Seidentopf binocular viewing head inclined at 30°, offering an interpupillary distance of 47-78 mm for comfortable use. The microscope is equipped with coaxial fine and coarse adjustments, providing precise control with a 0.002mm fine division and a 25mm moving range. With a finite optical system and achromatic objectives ranging from 4X to 100X, this microscope ensures detailed observations of your specimens. Additionally, the robust S-LED illumination system provides consistent lighting, essential for accurate analysis. Visit our Kalstein Plus platform to get an instant quote today!
Price in the Market
The market price for high-quality laboratory microscopes like the YR0239 - YR0240 generally ranges between 500 USD and 800 USD. This pricing provides a great balance between cost-effectiveness and high-end features, positioning these models as excellent options for both new and established laboratories.
Frequently Asked Questions
What is the magnification range of this microscope?
The YR0239 - YR0240 models offer magnifications from 40X up to 1000X when using the included objectives and eyepieces.
Is this microscope suitable for educational purposes?
Yes, it is ideal for both educational and research purposes due to its ease of use and high precision.
Advantages and Disadvantages
Advantages: The YR0239 - YR0240 microscopes offer high precision, robust build quality, and comprehensive illumination options, including eco-friendly LED lighting. The Seidentopf binocular viewing head provides comfortable viewing for extended periods.
Disadvantages: These microscopes may be considered overkill for simplistic magnification tasks, and their advanced features might require a learning curve for novice users.
Product Use in the Field
The YR0239 - YR0240 microscopes are typically used in scientific laboratories for research purposes, providing the clarity and precision needed for detailed cellular and tissue analysis. Their ergonomic design makes them suitable for extended use in clinical settings and educational institutions.
Recommendations
To maximize the lifespan and performance of your microscopy equipment, it is recommended to regularly clean the lenses with appropriate supplies and ensure that the focusing mechanisms are well-tuned and calibrated. Utilize the eco-function to prolong the life of the light source and reduce energy consumption.
Features
- Darkfield condenser (dry, oil)
- Seidentopf binocular viewing head 30° inclined, interpupillary 47-78 mm
- Coaxial fine and coarse adjustment, 0.002mm fine division, 25mm moving range
Technical Specifications
| Model | YR0239 | YR0239-1 | YR0240 | YR0240-1 | |
| Optical System | Finite Optical System | ||||
| Eyepiece | WF10X/18 | ||||
| Viewing Head | Monocular Head Inclined at 30° | ○ | ○ | ○ | ○ |
| Seidentopf Binocular Viewing Head Inclined at 30°, Interpupillary 47-78mm | ● | ● | |||
| Seidentopf Trinocular Viewing Head Inclined at 30°, Interpupillary 47-78mm | ● | ● | |||
| Digital Viewing Head Inclined at 30°, Interpupillary 47-78mm, 5M pixels, Support Wifi | ○ | ○ | ○ | ○ | |
| Digital Viewing Head Inclined at 30°, Interpupillary 47-78mm, 5M pixels, 8"LCD. Android OS | ○ | ○ | ○ | ○ | |
| Achromatic Objective | 4X N.A=0.1 WD=37.5 | ● | ● | ● | ● |
| 10X N.A=0.25 WD=7.316 | ● | ● | ● | ● | |
| 20X N.A=0.4 WD=13 | ○ | ○ | ○ | ○ | |
| 40X N.A=0.65 WD=0.632 | ● | ● | ● | ● | |
| 100X N.A=1.25 WD=0.198 | ● | ● | ● | ● | |
| Nosepiece | Backward Quadruple Nosepiece | ● | ● | ● | ● |
| Stage | Double Layers Mechanical Stage 140X140mm, Moving Range 75X50mm | ||||
| Condenser | NA1.25 Abbe Condenser | ● | ● | ● | ● |
| Dark Field Condenser (Dry, Oil) | ○ | ○ | ○ | ○ | |
| Focusing System | Coaxial Coarse and Fine Adjustment, Fine Division 0.002mm, Moving Range 25mm | ||||
| Illumination | Halogen Lamp 6V/20W | ○ | ○ | ○ | ○ |
| S-LED Illumination | ● | ● | ● | ● | |
| S-LED Illumination with Recharger | ○ | ○ | ○ | ○ | |
| Kohler Illumination | ○ | ○ | ○ | ○ | |

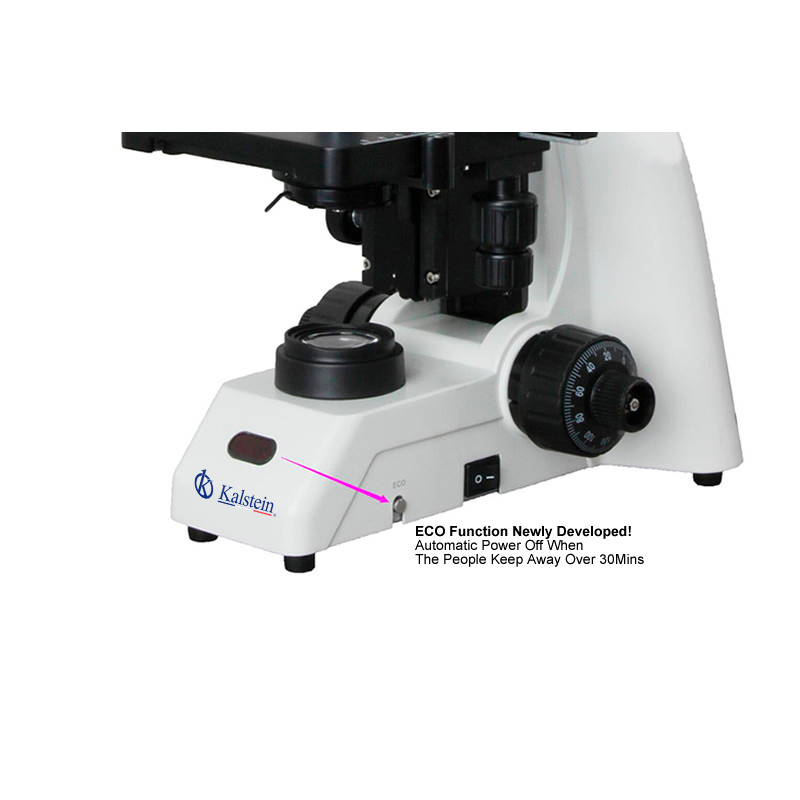

| ECO Function (Auto Power Off After 30 Mins No Operation) | ○ | ○ | ● | ● | |
| Plane-concave Mirror | ○ | ○ | ○ | ○ | |
| Fluorescent Attachment | Fluorescent Illumination, LED Lamp | ○ | ○ | ○ | ○ |
| Fluorescent Illumination, 100W HBOLamp | ○ | ○ | ○ | ○ | |
| Polarization Set | ○ | ○ | ○ | ○ | |
| Phase Contrast Kit | ○ | ○ | ○ | ○ | |
