Description

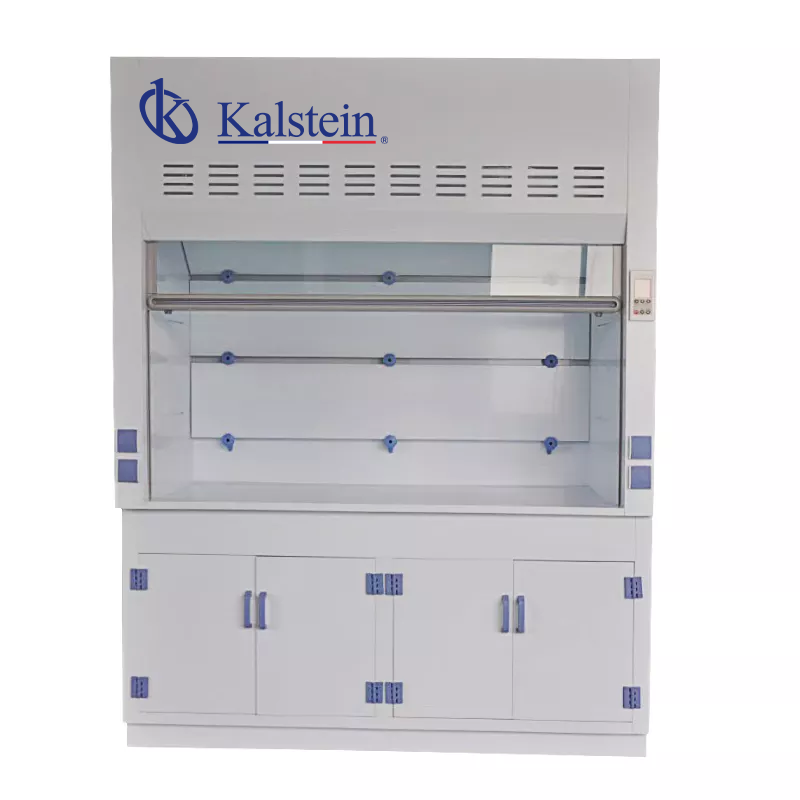

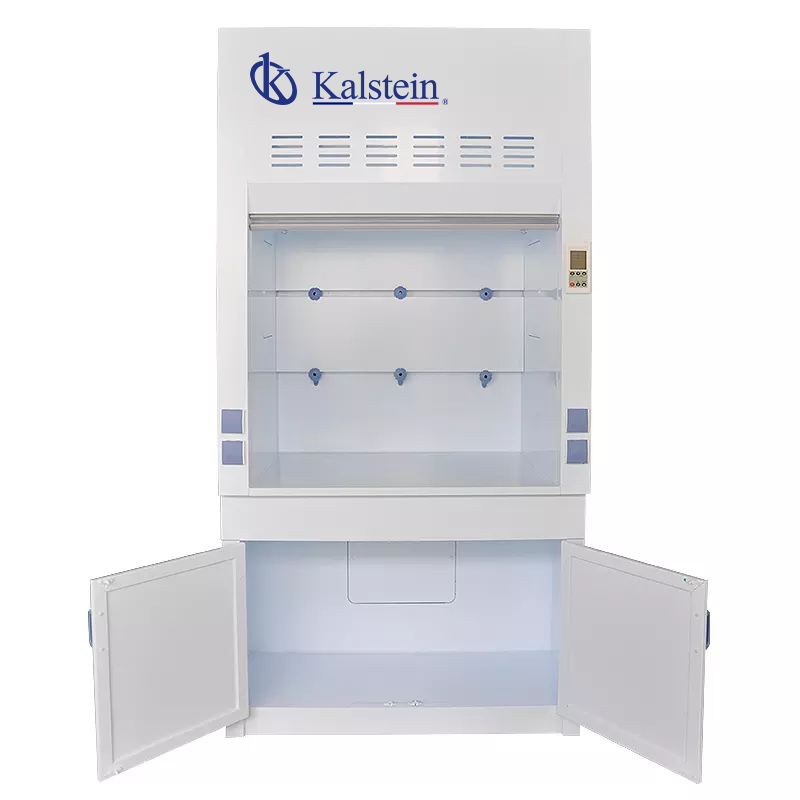

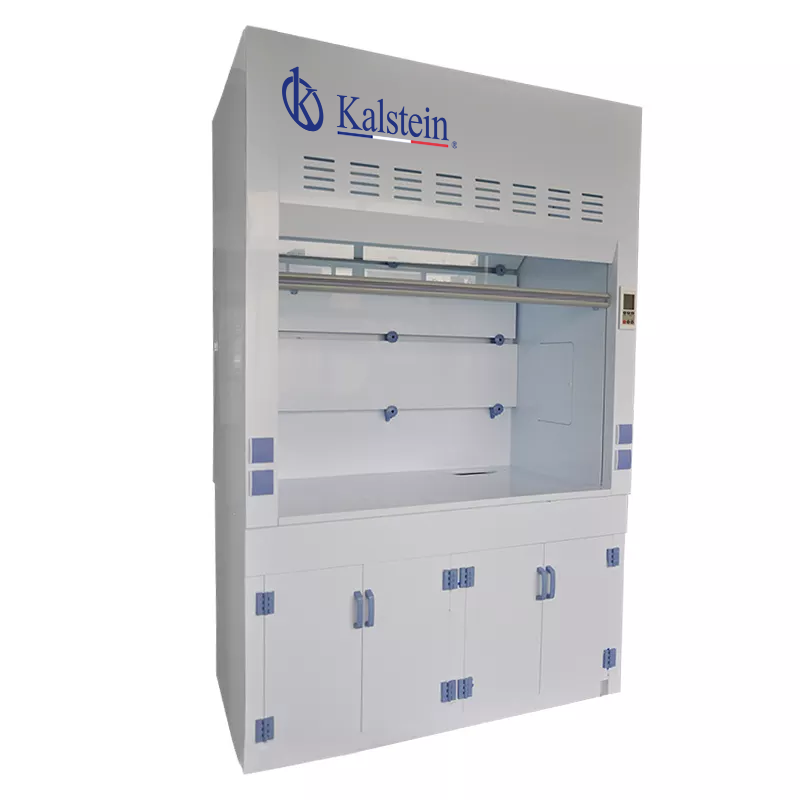

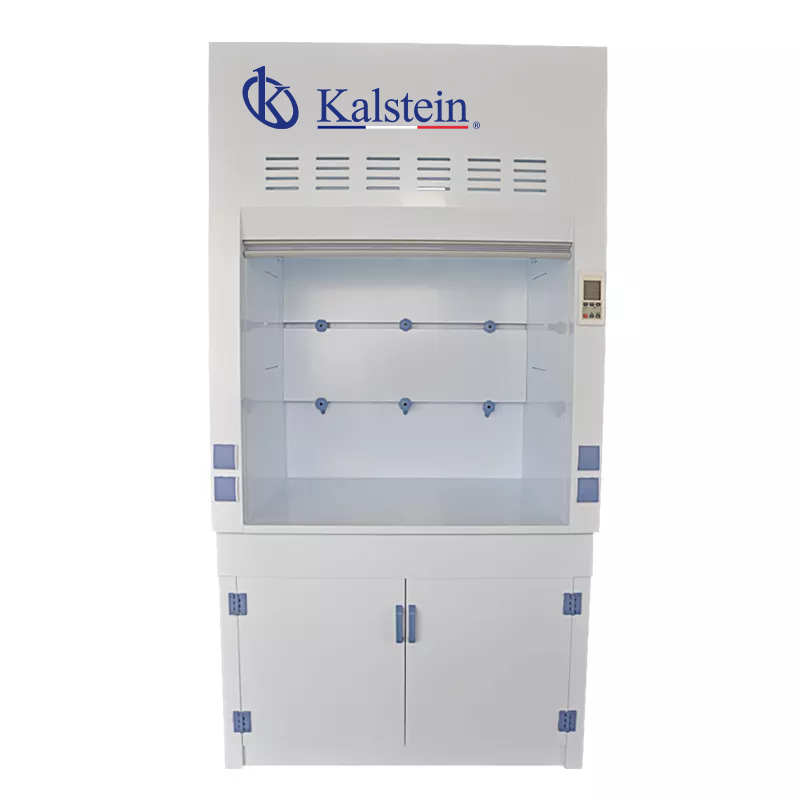

The Laboratory Ventilation Cleaning Fume Extraction System Hood Equipment Fume Hood YR05826 // YR05828 is a top-tier solution designed to ensure optimal air safety in laboratories. This fume hood draws dirty room air into its structure, mixes it with potentially contaminated air, and utilizes building exhaust to clear the atmosphere of harmful substances. Crafted with durable 8.0mm PP polypropylene plates, it offers superior resistance to strong acids and alkalis, making it perfect for demanding environments. Its smart airflow management, robust inner shell, and versatile operational worktop make it a reliable choice for laboratory professionals. Order today and harness cutting-edge technology for safe and efficient laboratory operations.
Market Price
The market price for high-quality fume hoods like the Laboratory Ventilation Cleaning Fume Extraction System typically ranges from 3000 USD to 3850 USD. These prices reflect the advanced features and durable materials that make this equipment a worthwhile investment for any laboratory setting.
Frequently Asked Questions
What materials are used in the construction of the fume hood?
The fume hood is made using 8.0mm PP polypropylene which is highly resistant to corrosion, acids, and alkalis.
Can the dimensions of the fume hood be customized?
Yes, the dimensions can be tailored according to customer requirements, ensuring a perfect fit for your laboratory.
Does the fume hood come with a fan?
The fume hood is equipped to include a PP centrifugal energy-saving fan. However, the standard price does not include the fan, duct, or related accessories.
Advantages and Disadvantages
Advantages:
This fume hood offers exceptional durability, corrosion resistance, and a customizable design. It features a user-friendly LCD control panel and is equipped with safety features such as tempered glass sliding doors and a low-noise suspension cable system.
Disadvantages:
The initial investment might be higher due to its advanced features. Also, additional accessories like fans and ducts need to be purchased separately.
Use in the Field
This fume hood is indispensable in laboratories where hazardous material handling and chemical reactions occur. It efficiently seals off and ventilates toxic fumes, ensuring a safe working environment for researchers and lab technicians, which is critical during scientific experiments or chemical analyses.
Recommendations
To maximize the effectiveness of your fume hood, regularly schedule maintenance checks and clean the components to prevent blockages or degradation. Use the LCD control panel to monitor and adjust ventilation settings for optimal performance. It’s recommended to match the fume hood with compatible PP fans and ducts for better energy efficiency and noise reduction.
Features
- Durable 8.0mm PP polypropylene construction
- Customizable dimensions
- LCD control panel with multiple functionalities
- Tempered glass sliding doors for added safety
- Centrifugal energy-saving fan compatibility
- Efficient airflow pattern for contamination control
- Corrosion and acid-resistant components
Technical Specifications
Model | YR05826 | YR05827 | YR05828 |
Notes
Above size is our standard item. Dimension can be customized upon customer’s request. Built-in axial flow blower and⊄250mm exhaust duct included. |
|||
Housing | Using 8.0mm PP polypropylene plate welding production, after carving, bending the entire cabinet at one time, featured with strong anti-acid and alkali, corrosion resistance. | ||
Inner shell | Using a new 8.0mm PP polypropylene plate welding production, with strong anti-acid and alkali, corrosion resistance characteristic, the inner side board can be fixed with water cock, gas cock. The back plate can be fixed with baffle, roof lighting and gas hood device. | ||
Operational worktop | 8.0mm PP polypropylene worktop, includes water fender, spray-proof, the table has a good performance of waterproof, anti-acid and alkali. | ||
Baffle | 8.0mm PP polypropylene board, resistant to strong acid and alkali. Installed in the back of the work space and above, including at least three pieces plates, so that the work space and the connection between the exhaust pipe to form a gas chamber, the polluted gas are exhausted completely, the baffle plate is attached to the cabinet with the clips, detachable. | ||
Gas hood | PP material, with a strong corrosion resistance, rectangular opening at the bottom of the entrance, circular opening at the top | ||
Fluorescent lamp | 1 piece 30W light (waterproof, anti-corrosion, anti-oxidation) | ||
Window sliding door | Movable vertical pull-up door, placed between the work space and the operator to protect the operator’s safety, combined with the balance position, sliding doors can be stopped at any point of activity. a piece of tempered glass window on the adjustable door, the field of view can be completely clear. | ||
Window | Using 5mm thick tempered glass | ||
Window frame | Aluminum alloy door frame, ensure the safety and durability of the window | ||
Windows Suspension Cable | Plastic suspension cable, low noise, fast pulling speed, strong balance characteristic | ||
Control switch | LCD control panel, set with the power, switches, lighting, fan and running lights and other buttons, the LCD screen can clearly show the operation of the fume hood. | ||
Socket | Equipped with four 220V universal socket. (Other type of socket can be optional, according to customers need) | ||
Base cabinet | 8.0mm PP polypropylene board, the door is firm solid, not easy to deformation, elegant appearance | ||
Door handle | Laboratory PP handle, strong corrosion resistance. | ||
Hinge | Laboratory PP hinge, strong corrosion resistance. | ||
Water sink | PP cup , made of high-density PP ,strong corrosion resistance, with filtering and anti-odor function, water trap with high-density PP production( This is extra option) | ||
Water cock | wall-mount remote control water valve, faucet, the main body is made of the thick copper, the surface with high brightness epoxy resin coating, corrosion resistance, heat resistance; Ceramic valve core, 90 ° rotation, life span 500,000 times, static maximum resistance Pressure 20 bar; switch knob for high-density PP production, ergonomic design, feel comfortable. (This is extra option) | ||
Gas cock | Wall-mount remote control gas valve, the main body is made of the thick copper, the surface with high brightness epoxy resin coating, corrosion resistance, heat resistance; ergonomic design, feel comfortable. (This is extra option) | ||
Optional Accessories | |||
Air Velocity /Exhaust air volume requiremen | 0.4m/sec~0.6 m/sec. | ||
Noise | ≤60dB | ||
Blower | PP centrifugal energy-saving fan, fan motor 380V three-phase motor, fan material PP polypropylene, with high strength, light weight, not easy to aging, low noise, excellent corrosion resistance and so on. (According to the actual need, equip with the fan, duct, etc., the fume hood price does not include the fan ,duct and related accessories prices. | ||
Dimension
(L x W x H) (mm) |
1200 x 850 x 2350 | 1500 x 850 x 2350 | 1800 x 850 x 2350 |
Weight (Kg) | 220 | 280 | 350 |
