Description

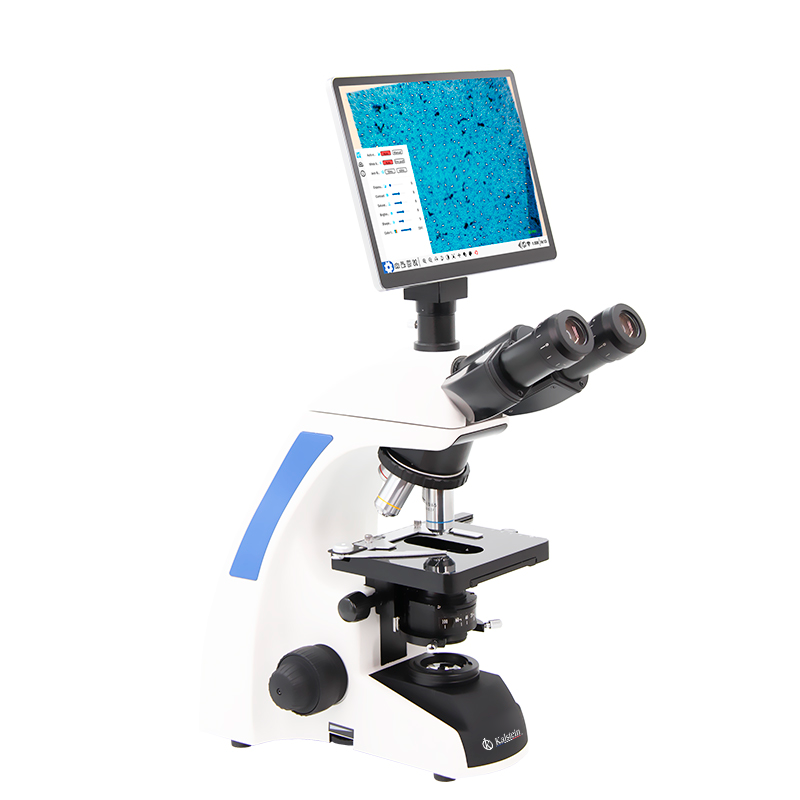

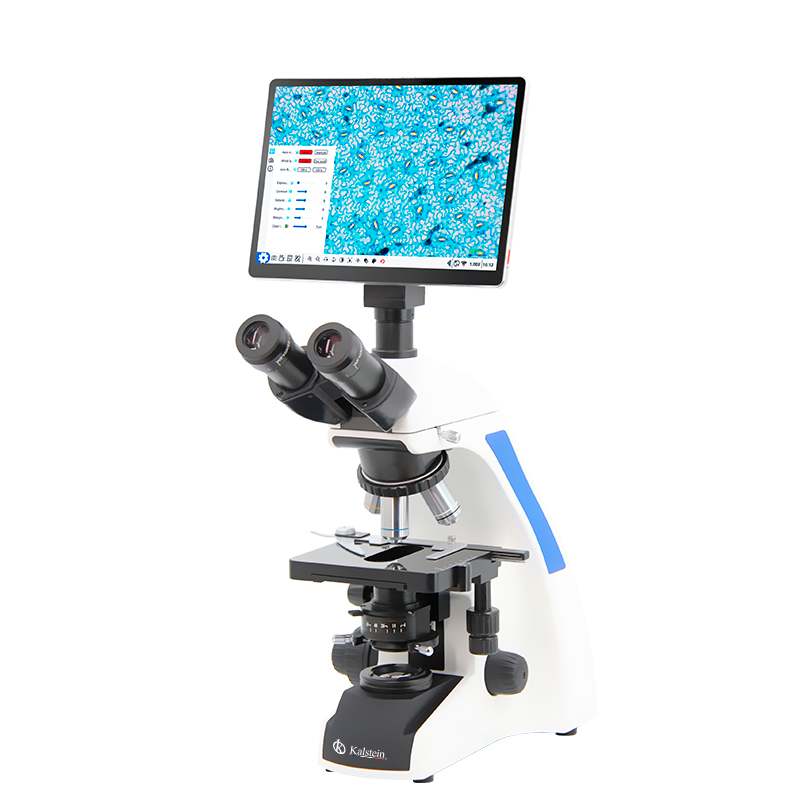

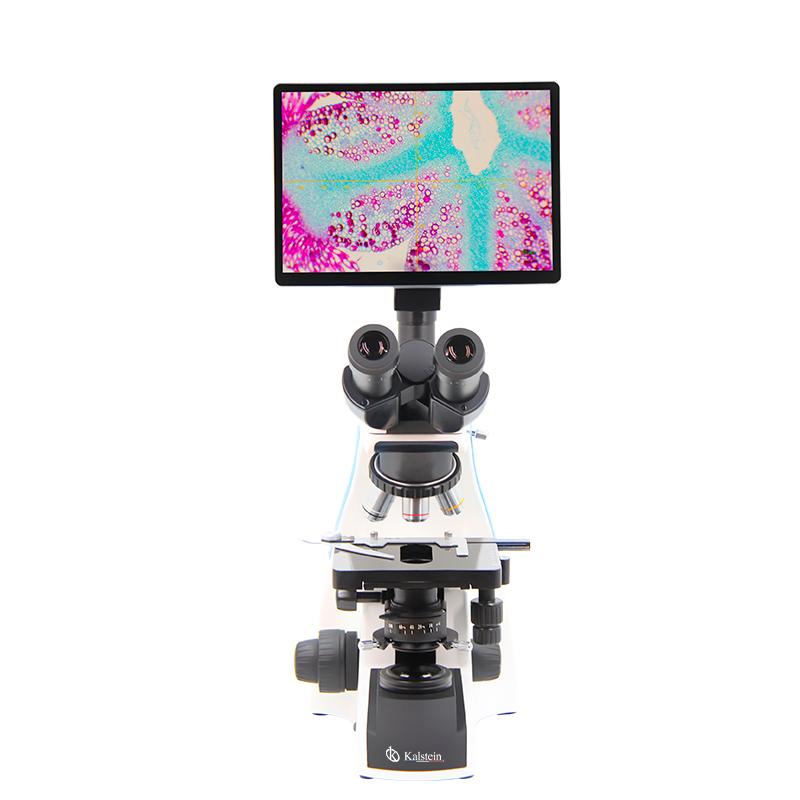

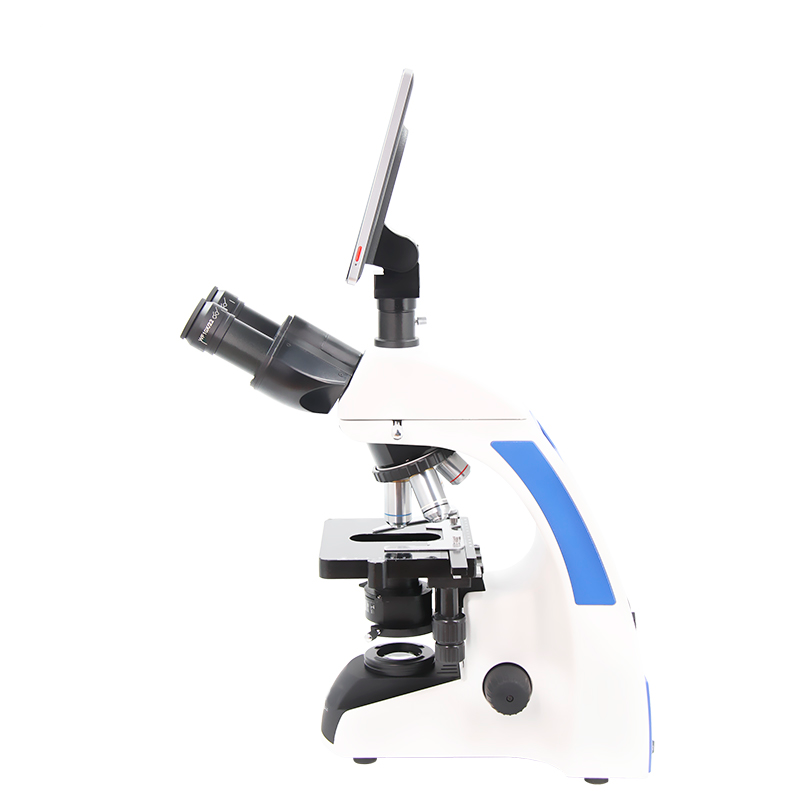

The LCD Touch Screen Digital Microscope YR05782 is an innovative microscopy solution that combines advanced digital processing with a user-friendly Android touch screen interface. Ideal for both professionals and enthusiasts, it features a 10.5” LCD touch screen with an Android system integrated with measuring software. The high eyepoint wide field eyepiece and achromatic objectives ranging from 4x to 100x provide superior image quality and versatility. Additionally, the double-layer mechanical stage and 3W LED Kohler illumination enhance operational convenience and precision, making it suitable for a variety of laboratory applications.
Market Price
The average market price for digital microscopes like the LCD Touch Screen Digital Microscope YR05782 ranges from $1300 to $2100, indicating a competitive and accessible cost for high-quality laboratory equipment. This price range reflects the unique combination of digital technology and traditional microscopy features that this product offers.
Frequently Asked Questions
What is the maximum magnification of the YR05782 microscope?
The YR05782 offers a maximum magnification of 100x with its achromatic objectives.
Is the touch screen detachable from the microscope?
No, the touch screen is an integral part of the microscope’s Android system, designed for seamless operation.
Does the microscope come with software for measurements?
Yes, it comes pre-installed with the S-Eye2.0 measuring software for enhanced image analysis.
Advantages and Disadvantages
One of the main advantages of the LCD Touch Screen Digital Microscope YR05782 is its user-friendly interface with a large touch screen that supports Android interaction. The inclusion of the latest technology, like dual-band WiFi and Bluetooth 5.0, enhances connectivity options. However, some users may find the initial setup requiring a brief learning curve to fully understand all features and functionalities.
Product Use In The Field

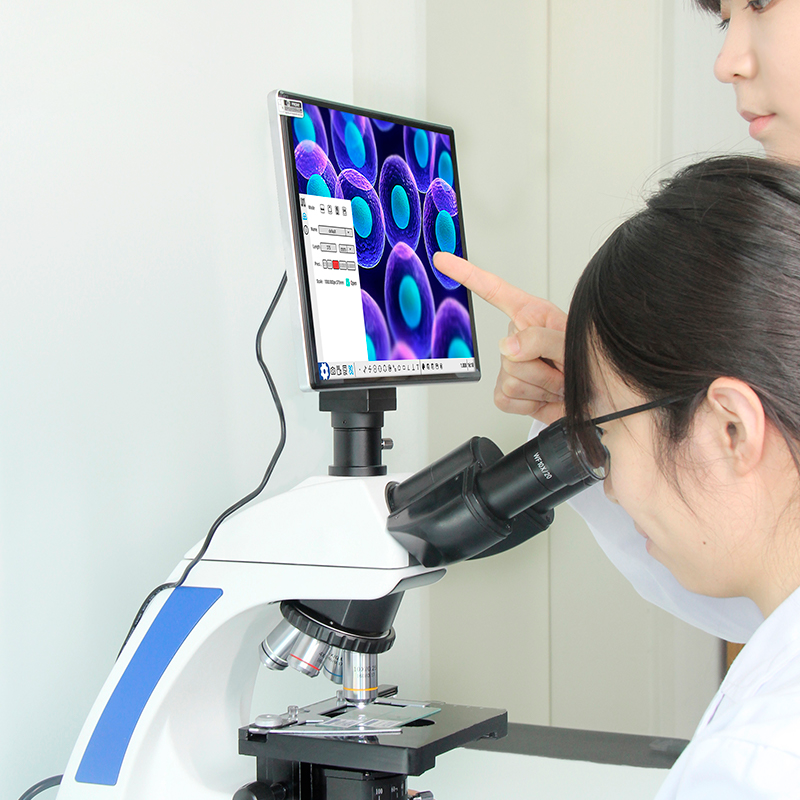

This digital microscope is ideal for both educational and professional laboratory settings. It provides high-resolution image capture, video recording, and thorough measurement capabilities, making it indispensable for tasks that require detailed documentation and analysis. The integrated measuring software allows for efficient processing and data management, crucial for scientific research and educational purposes.
Recommendations
To maximize the lifetime and efficiency of the LCD Touch Screen Digital Microscope YR05782, regular maintenance, such as cleaning the optical components and updating the software, is recommended. Utilizing the measurement and analysis software can enhance research accuracy, and exploring the adjustment options for brightness, contrast, and color temperature can optimize observation conditions for different specimens. For interested buyers, we recommend requesting a quote or generating an automatic quote through the Kalstein Plus platform to explore pricing and availability options.
Features
- 10.5″ LCD touch screen with Android system and measurement software.

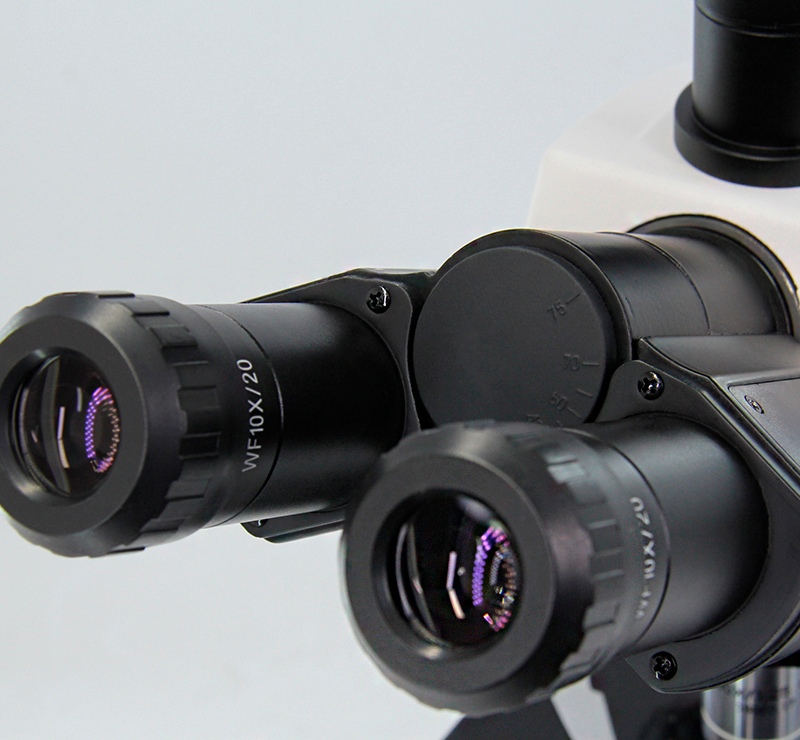

- High eyepoint wide field eyepiece WF10x/20mm.
- Achromatic objectives with magnifications 4x, 10x, 40x, and 100x.
- Double layer mechanical stage with upgrade options.
- 3W LED Kohler illumination for easy maintenance.
Technical Specifications
| Model | YR05782 | |
| Head | Trinocular Head, 30° Inclined, Interpupillary Distance 48-75mm, Both Eyepiece Tube Diopter Adjustable | |
| Eyepiece | WF10x/20mm, Diopter Adjustable, Dia. 30mm | |
| Objective | High Contrast Chromatic Free 4x, 10x, 40x(S), 100x(Oil, S) | |
| Focus Knob | Coaxial Coarse & Fine Focusing, Fine Division 0.002mm, Coarse Stroke 37.7mm/Rotation, Focusing Range 24mm | |
| Nosepiece | Quadruple, Backward With Click Stops | |

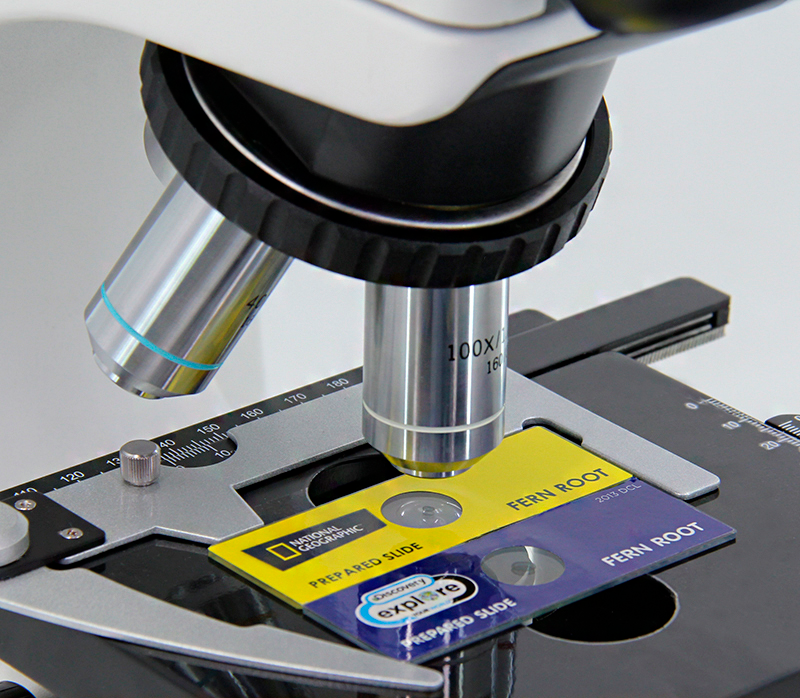

| Stage | Double Layer Mechanical Stage 142x132mm, Graphite Surface, Moving Range 75x50mm | |

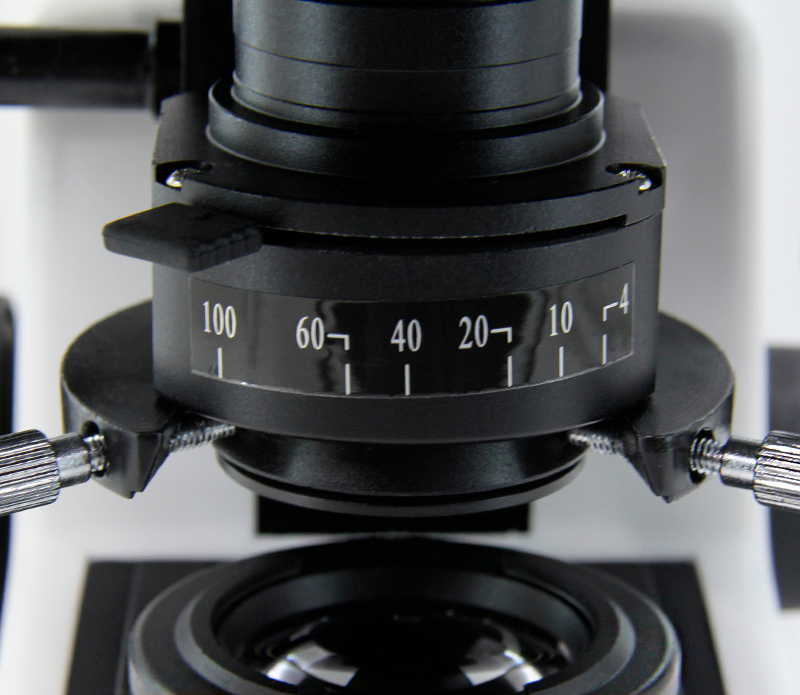

| Condenser | Abbe Condenser N.A.1.25, Center Adjustable | |
| Light Source | 3W LED Brightness Adjustable | |
| Adapter | C-Mount 0.5x | |
| Package | 53*32.5*53.5cm/11.5Kg, 1 Set/Carton | |
| 10.5“ Touch Screen Android Pad Digital Camera, 8.0M1 Newly Update 2022! | ||
| Spec. | Model | YR05782-op0 |
| Category | HD All-in-One Android 11 System Tablet Digital Camera | |
| Sensor | 1/1.8” CMOS Sensor | |
| Effective Pixel | 8M, 4K | |
| Screen | 10.5” High-Definition Touch Screen | |
| Operation System | Android 11 | |
| WIFI | 2.4GHz/5GHz Dual-band WIFI, Support WIFI6 | |
| Bluetooth | Bluetooth 5.0 | |
| Output | USB3.0*2, USB2.0*1, HDMI, Gigabit LAN Port | |
| Pixel size | 2.0um*2.0um | |
| Power | DC-12V/2A | |
| Function | Basic Function | Android Interaction, Installed S-Eye2.0 Measure Software |
| Image Adjustment | Brightness, Contrast, Saturation, Color Temperature | |
| Camera Function | Mirror, Flip, Freeze, Black and White | |
| UI Interface | Support User-friendly Mouse & Keyboard, And Touch Screen Operation | |
| Photo | 8.0M Image Capture | |
| Video | 1080P Video | |
| Storage | Still Photo And Video Recording, Picture Preview | |
| Marking | Point Coordinates, Crosshairs, Coordinate System, Text Annotations | |
| Length Measurement | Straight Line, Folded Line, Curve Length, Parallel Line Distance, Point Line Distance | |
| Geometric Measurement | Line Segment Length, Radius Fixed Circle, 2 Point Fixed Circle, 3 Point Fixed Circle, Concentric Circle, Radius Fixed Circle | |
| Geometric Area Measurement | Polygon, Rectangle | |
| Measurement System | Built-in S-Eye Software | |
| Package | Box Size | 237*169*10.5mm |
| Weight | 0.6kg | |
| Accessory | DC-12V/2A Power Adapter | |
| Laboratory Biological Microscope Optional Accessories | ||
| Eyepiece | WF16X/F.N.15mm | YR05782-op1 |
| WF20X/F.N.12mm | YR05782-op2 | |
| Nosepiece | Backward Quintuple Nosepiece | YR05782-op3 |
| Dark Field | Dark Field Condenser, Dry, N.A.1.25 | YR05782-op4 |
| Dark Field Condenser, Immersion, N.A.1.25~1.36 | YR05782-op5 | |
| Polarizing | Polarizer & Analyzer | YR05782-op6 |
| Phase Contrast | Turret Disc Phase Contrast Condenser, For 10x,20x,40x,100x | YR05782-op7 |
| Infinity Plan Phase Contrast Objective 10x,20x,40x,100x | ||
| Centering Telescope 10x | ||
| Optional For B, T Only | ||
| Adapter | Eyepiece Tube Adapter | YR05782-op8 |
| C-Mount 1.0x | YR05782-op9 | |
