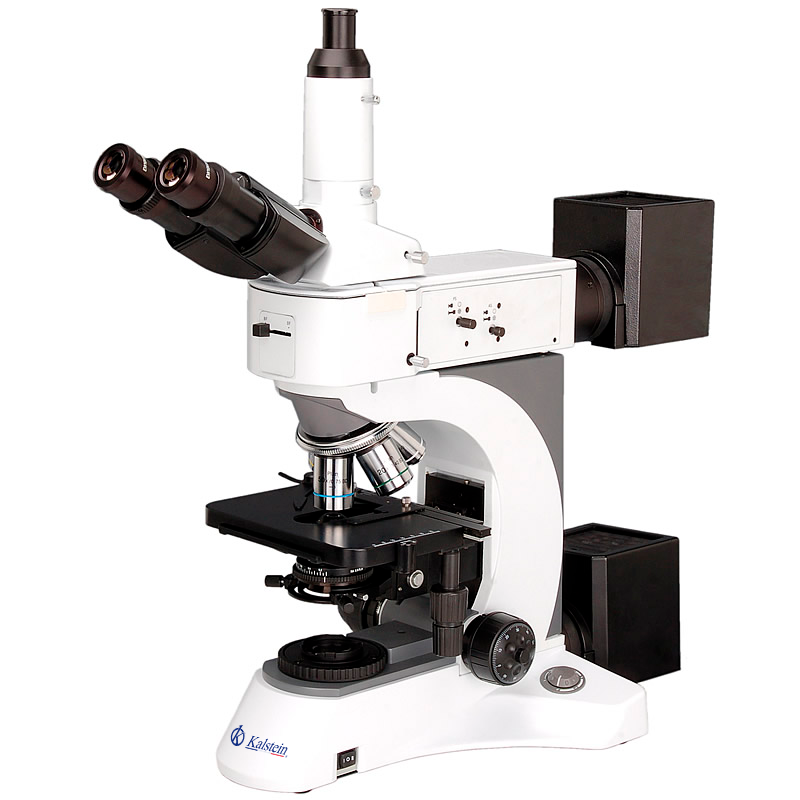

Metallurgical Microscope YR0251 – YR0252

ManufacturerKalstein

Description

The Metallurgical Microscope YR0251 – YR0252 stands out for its precision and versatility, making it an essential tool for professionals in the metallurgical field. Featuring a Seidentopf trinocular head inclined at 30° and an interpupillary distance range of 48~75mm, this microscope ensures comfortable and precise observations. The extra wide field eyepiece with a 22mm field of view and an eyepiece tube diameter of 30mm, combined with an infinity optical system, provide exceptional clarity and detail. Equipped with both bright and dark field observation options and a polarizing capacity, it caters to diverse inspection needs. The coaxial coarse and fine adjustment knob allows seamless transitions while focusing, ensuring high precision with a fine focusing precision of less than 1 micron. With external illumination and an aspherical collector, the Metallurgical Microscope YR0251 – YR0252 is designed to bring accuracy to the forefront of your work.

Market Price

The price of a metallurgical microscope can vary significantly depending on features and brand. For the Metallurgical Microscope YR0251 – YR0252, the market average ranges between $5700 and $6500 USD. This competitive pricing reflects the high-end specifications and advanced technology embedded in the microscope. For a precise quote or to generate an automatic estimate, we invite you to use the Kalstein Plus platform.

Frequently Asked Questions

What is the magnification range of the YR0251 – YR0252? The microscope is equipped with infinity plan achromatic objectives, offering magnifications of 5x, 10x, 20x, 40x, 50x, and 100x depending on the model.

Is the illumination adjustable? Yes, the microscope comes with a 24V 100W halogen light source, and its brightness is fully adjustable to suit specific observation needs.

Can this microscope be used for digital imaging? Absolutely, the YR0252 model has additional options for photo adapters suitable for Nikon or Canon SLR cameras and C-Mount adapters for digital imaging.

Advantages and Disadvantages

Advantages:

  • High optical precision with infinity optical system and plan achromatic objectives.
  • Versatility in observations with both bright and dark field capabilities.
  • Robust construction with a double layer mechanical stage.
  • Adaptable for digital imaging and extensive accessory options.

Disadvantages:

  • It may require a learning curve for users unfamiliar with advanced microscopes.
  • Additional accessories could increase the overall cost.

Product Use in Field

In practical applications, the Metallurgical Microscope YR0251 – YR0252 is widely used in metallurgy laboratories for observing the microstructure of metals. It is an invaluable tool in quality control for ensuring the integrity and quality of metal components. With its polarizer and analyzer integration, it can effectively assess materials for defects or inclusions, making it ideal for rigorous industrial environments.

Recommendations

To maximize the longevity and performance of your microscope, regularly clean the lenses with appropriate lens cleaning agents and ensure the stage is free of debris. When not in use, cover the microscope with a dust cover to prevent particle accumulation. Regular calibration and maintenance checks will also ensure optimal performance over time.

Features

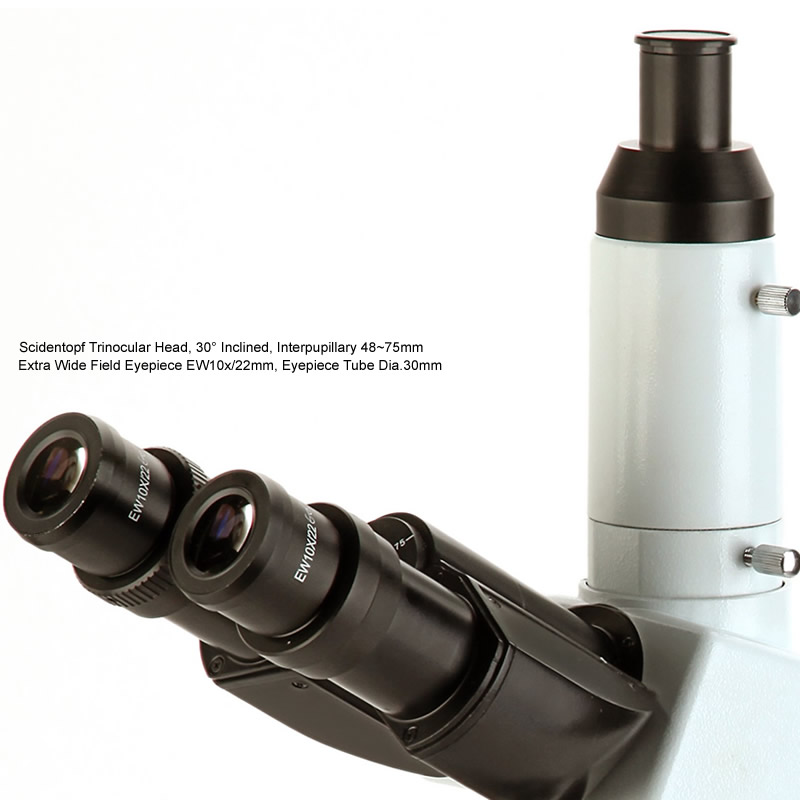

  • Seidentopf trinocular head inclined at 30°
  • Extra wide field eyepiece EW10x/22mm
  • Bright/Dark field observation options
  • Coaxial coarse and fine adjustment knob
  • 24V 100W halogen illumination with adjustable brightness
  • Polarizer and analyzer integration
  • Suitable options for digital imaging adaptation

Technical Specifications

Model YR0251 YR0252
Optical System Infinity Optical System, Bright Field/Dark Field, Polarizing
Head Seidentopf Trinocular Head Inclined at 30°, Interpupillary 48-75mm
Eyepiece Extra Wide Field Eyepiece EW10x/22mm, Eyepiece Tube Dia.30mm

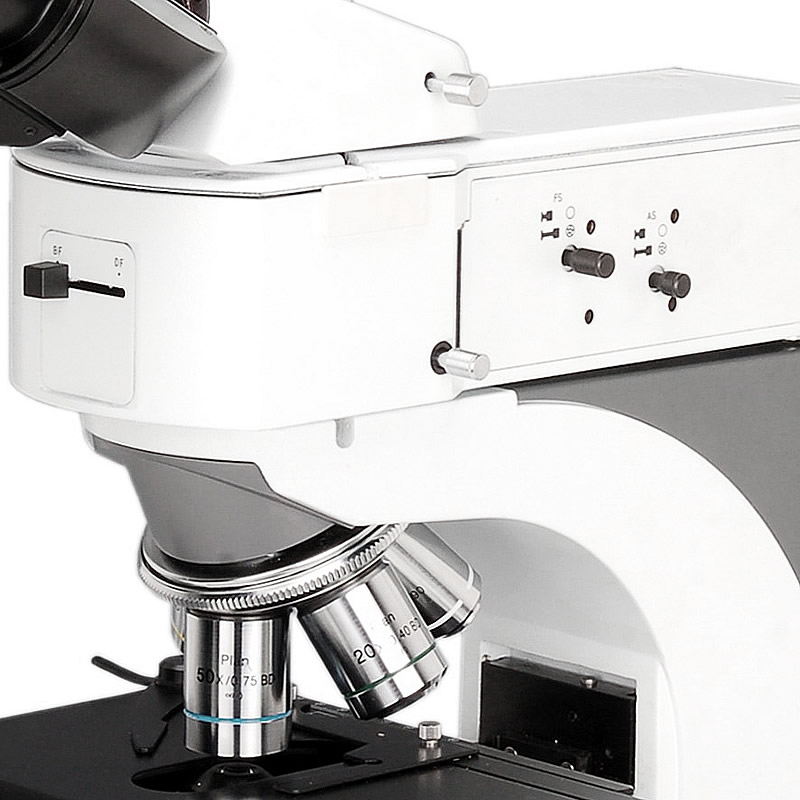

Nosepiece Backward Quintuple Nosepiece
Objective Infinity Plan Achromatic Objectives 5x/ 0.12/ ∞/ – (BF)
Infinity Plan Achromatic Objectives 10x/ 0.25/ ∞/ – (BF/DF)
Infinity Plan Achromatic Objectives 20x/ 0.4/ ∞/0 (BF/DF)
Infinity Plan Achromatic Objectives 50x/ 0.75/ ∞/0 (BF)
Infinity Plan Achromatic Objectives100x/0.90/∞/0 (BF)
Infinity Plan Achromatic Objectives 40x/0.65/∞/0.17 o
Infinity Plan Achromatic Objectives 100x/1.25/∞/0.17 o

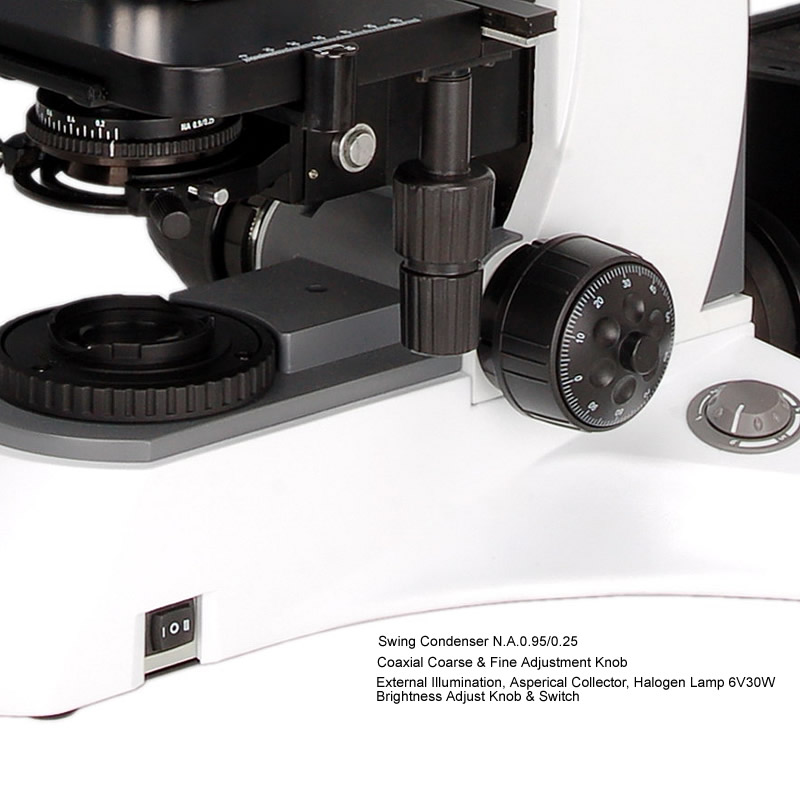

Focusing Coaxial Coarse & Fine Adjustment, Fine Focusing Precision <1um, With Safty Stop, With Tension Adjustment
Working Stage Maximum Sample Height 30mm
Double Layer Mechanical Stage 186*138mm, Moving Range 74*50mm, Including:
–Specimen Preparation Plate
–Slide Glass o
Reflect Illumination 24V 100W Halogen Light, Brightness Adjustable
Kohler Illumination With Aspherical Condenser
Polarizer & Analyzer, Intergrate Board For Polarizer & Analyzer
Blue, Green, Yellow Filter, Gound Glass
Transmit Illumination Swing-Out Condenser N.A.0.9/0.25 o
24V 100W Halogen Light With Aspherical Condenser
Blue Filter
Accesories YR0251 YR0252
Objective Infinity Plan Achromatic Objectives 40x/0.6/∞/0 (BF/DF) YR0252-op1
Infinity Plan Achromatic Objectives 50x/0.75/∞/0 (BF/DF) YR0252-op2
Polarizing Polarizer & Analyzer, Intergrate Board For Polarizer & Analyzer | YR0252-op3
For Reflect Illumination
Filter Netural Filter ND25 YR0252-op4
Netural Filter ND6 YR0252-op5
Adaptor Photo Adapter, For Nikon or Canon SLR Camera YR0252-op6
C-Mount 1.0x YR0252-op7
C-Mount 0.5x YR0252-op8
Other Specimen Presser

Additional information

Weight N/A
Model

YR0251, YR0252

Characteristic Feature

No Features, sliding glass
