Description

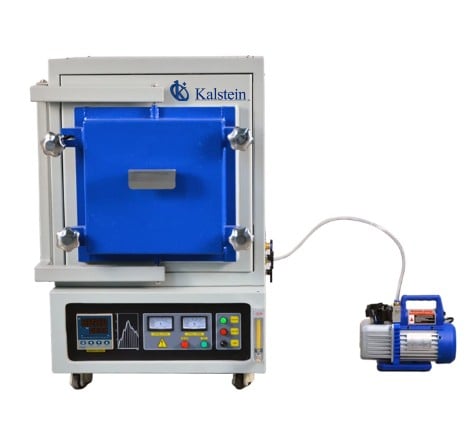

The YR06648 Muffle Furnace is a high-temperature thermal treatment unit designed for laboratory and industrial applications that require precise control of the internal atmosphere. This furnace allows the use of protective atmospheres through the introduction of argon, nitrogen, and other inert gases, which is essential for processes where oxidation or unwanted reactions during heating must be avoided.

Its design incorporates a double-layer structure with air cooling, keeping the external surface temperature close to ambient conditions, thereby enhancing operational safety and reducing thermal risks for the user. The chamber is built with high-quality alumina ceramic fiber boards, ensuring excellent thermal efficiency, structural stability, and long service life. In addition, the door equipped with a high-performance sealing ring guarantees complete chamber airtightness, a critical condition for controlled-atmosphere processes.

With a maximum design temperature of 1200 °C, a usable volume of 12 liters, and internal dimensions of 300 × 200 × 200 mm, the YR06648 Muffle Furnace offers an ideal balance between capacity, power (6 kW), and energy efficiency. It is positioned in the market as a competitive solution compared to high-end equipment, delivering an excellent cost-to-performance ratio for universities, research centers, and industrial companies.

Frequently Asked Questions

What types of gases can be used in the YR06648 Muffle Furnace?
The unit is designed to operate with inert gases such as argon and nitrogen, as well as other protective gases compatible with thermal treatment processes.

Is this furnace suitable for continuous laboratory use?
Yes. Its reinforced thermal structure, high-quality materials, and cooling system allow stable and safe operation in frequent-use applications.

Does it require special installations?
It operates on single-phase 220 V power, making it easy to integrate into most laboratories without the need for complex electrical infrastructure.

What are the most common application fields?
It is widely used in research and development of metallic materials, ceramics, nanomaterials, and semiconductors.

Advantages and Disadvantages

Advantages:

• Protective atmosphere control using inert gases
• High thermal efficiency thanks to alumina ceramic fiber
• Safe external surface temperature due to the air-cooled double-layer design
• Excellent chamber airtightness
• Compact size with adequate capacity for multiple applications

Possible Disadvantages:

• Limited volume of 12 liters, not recommended for large-scale production
• Primarily designed for laboratory environments rather than large-capacity industrial furnaces

Product Use in the Field

The YR06648 Muffle Furnace is mainly used in university laboratories, research institutes, and industrial R&D departments, where processes such as sintering, thermal treatment, calcination, advanced material testing, and experimental evaluation of new compounds are carried out. Its ability to operate under controlled atmospheres makes it a key tool for the development of oxidation-sensitive materials and high-precision experimental studies.

Recommendations

To maximize furnace performance, it is recommended to periodically check the door sealing system, use only compatible gases, and ensure proper ventilation of the working area. In addition, following gradual heating and cooling protocols helps extend the service life of the heating elements and the internal lining.
