Description

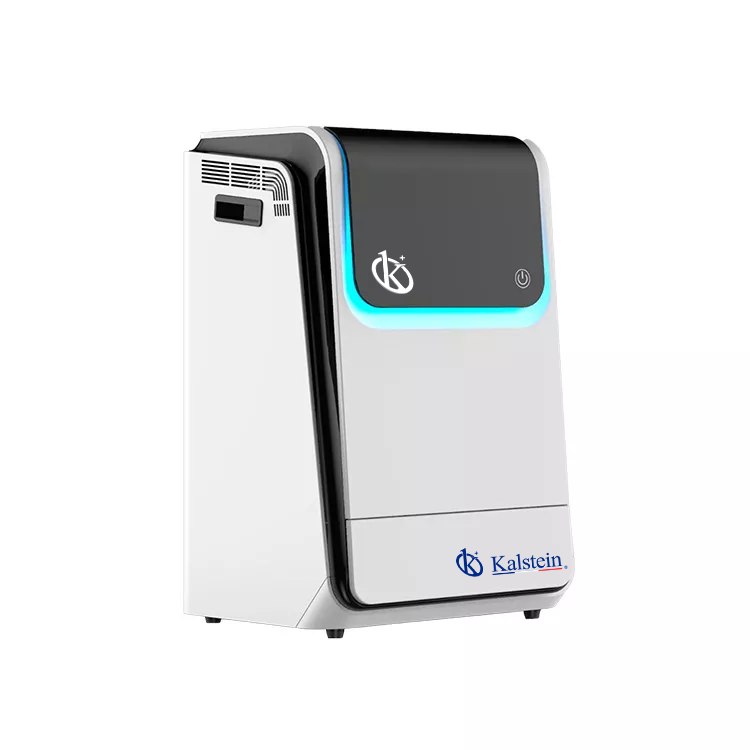

The Multifunctional Imager YR06210-YR06211 offers unparalleled performance and user-friendly operation for a wide range of applications, including visible light (RGB), far red/near infrared (FR/NIR) fluorescence, chemiluminescence detection, and general gel documentation tasks. This advanced imager is equipped with an electronic lifting platform, enabling the adjustment of the optimal capture area for various sample sizes. Moreover, the option to include a removable PC enhances operational flexibility, eliminating the risks associated with using an embedded Windows Pad.
Market Price
In the competitive imaging equipment market, high-performance multifunctional imagers like the YR06210-YR06211 typically range between $25,000 and $26,000 USD. This price bracket reflects the advanced technology and versatility of these units, making them an invaluable investment for laboratories and research facilities that require precision and reliability.
Frequently Asked Questions
What are the main applications of the Multifunctional Imager YR06210-YR06211?
The imager is ideal for chemiluminescence imaging, ECL Western blotting, fluorescence imaging, gel documentation, and protein gel applications.
Can the software be used by multiple users?
Yes, the SHST Capture and Analysis Software allows unlimited user access, ensuring seamless workflow integration.
Advantages and Disadvantages
Advantages: High sensitivity with cooled digital camera, versatile application range, and intuitive software interface for unlimited users.
Disadvantages: Initial investment cost may be high for some, and advanced features may require a learning curve for optimal use.
Product Usage in the Field
Researchers and lab technicians widely use the Multifunctional Imager YR06210-YR06211 for capturing high-resolution images of fluorescent and chemiluminescent samples. Its electronic lifting platform is particularly beneficial for efficiently handling different sizes of Western blotting membranes, enhancing both productivity and data accuracy.
Recommendations
To maximize the utility of your imager, regularly update the software and ensure proper maintenance of equipment components. Consider opting for the removable PC feature for enhanced flexibility in various research settings. Always follow manufacturer guidelines for operating the equipment to maintain its longevity.
Features:
- Super sensitive cooled digital camera
- Wide range of applications
- Electronic lifting platform
- Optional removable PC
- Intuitive software for unlimited users
Technical Specifications
| Model | YR06210 | YR06211 | |
| Application | Chemilluminescence Imaging, ECL Western Blotting | YES | YES |
| Fluorescence Imaging, Fluorescent Western Blotting | YES | YES | |
| Gel Doc Application | YES | YES | |
| Protein gel；SDS Pages | YES | YES | |
| Standard Parameters | Sensor | Back illuminated SCMOS Sensor | Front illuminated CCD Sensor |
| Resolution | 9.0Megapixels | 6 Megapixels | |
| Pixel Size | 3.76 × 3.76 μm | 4.54 x 4.54 μm | |
| Temperature | -30 °C regulated | ||
| Dynamic Range | 4.8OD | ||
| Pixel density | 16bit(65536 Grey scales) | ||
| Lens | F0.95 as standard (optional F0.8) Auto focus | ||
| Chemilluminescence Sample tray | Electronic Lifting Platform for diverse sizes of western blotting membranes | ||
| DNA/RNA detection | Electronic Lifting Blue LED Transmission for DNA/RNA detection | ||
| Protein gel；SDS Pages | Electronic Lifting White LED Transmission for Protein Gels | ||
| Software | SHST Capture and Analysis Software for unlimited number of users | ||
| Optional Accessories | Epi-UV, RGB and NIR fluorescent detection | ||
| Removable industrial computer, 13.1 Inch Touch Screen, Intel processor | |||
