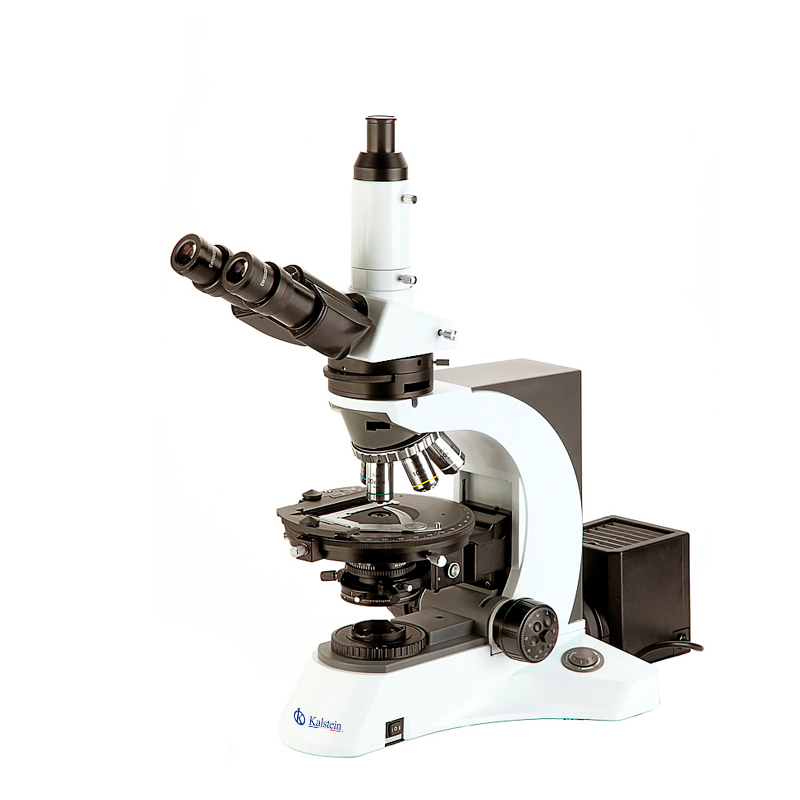

Polarizing Microscope YR0261
Polarizing Microscope YR0261 — equipo de laboratorio Kalstein con especificaciones técnicas, características avanzadas y soluciones profesionales certificadas para uso científico.
The Polarizing Microscope YR0261 is a sophisticated instrument designed to meet the needs of laboratories and scientific research settings. With its quintuple nosepiece and strain-free infinity plan objectives, this microscope ensures precision and clarity in observations. The 170mm rotatable round stage and 24V100W adjustable halogen illumination offer flexibility and brightness for detailed studies. Equipped with an analyzer unit that includes a Bertrand lens and optical compensators, the YR0261 facilitates both orthoscopic and conoscopic observations, making it ideal for research that requires polarized light microscopy.
Market Pricing
The average market price for a polarizing microscope like the YR0261 ranges from $4,000 to $4,800. This range reflects the high-quality and advanced features that cater to professional research environments. For an exact quote, users are encouraged to utilize the Kalstein Plus platform for an immediate response or to request a detailed quotation.
Frequently Asked Questions
What is the advantage of the quintuple nosepiece? The quintuple nosepiece allows seamless switching between different objectives, facilitating diverse magnification needs without interrupting your workflow.
Can this microscope handle both orthoscopic and conoscopic observations? Yes, with its advanced analyzer unit, the YR0261 excels at both observation techniques, enhancing versatility in scientific explorations.
Advantages and Disadvantages
The YR0261 offers numerous advantages, including high precision, versatile analysis capabilities, and advanced optical system. However, its complexity might require a learning curve for new users, and its price point could be a consideration for smaller labs.
Field Usage
This microscope is primarily used in domains requiring detailed analysis of birefringent materials, such as mineralogy and material sciences. The rotating stage and various objectives support comprehensive testing processes, yielding accurate insights crucial in scientific studies.
Recommendations
To ensure longevity and optimal performance, regular maintenance of the YR0261 is recommended. Users should calibrate the instrument before each use and clean components with appropriate materials to maintain clarity and precision.
Features
- Quintuple Nosepiece Center Adjustable
- Strain-free Infinity Plan Objectives 4x10x40x100x
- Round Stage Dia.170mm Center Adjustable
- Analyzer Unit With Bertrand Lens, λ Slip, 1/4λ Slip, Quartz Wedge
- Transmit Halogen 24V100W Brightness Adjustable
Technical Specifications
| Model | YR0261 | |
| Objective | Strainfree Infinity Plan Achromatic Objective 20x/0.4/∞/- W.D. 5.1mm | YR0261-op1 |
| Stage | Attachable Stage, Moving Range 30*40mm | YR0261-op1 |
| Filter | Neutral Filter ND25 | YR0261-op1 |
| Neutral Filter ND26 | YR0261-op1 | |
| Adapter | Photo Adapter | YR0261-op1 |
| C-Mount 1.0x | YR0261-op1 | |
| Items | YR0261 | |
| Optical System | Infinity Optical System | |

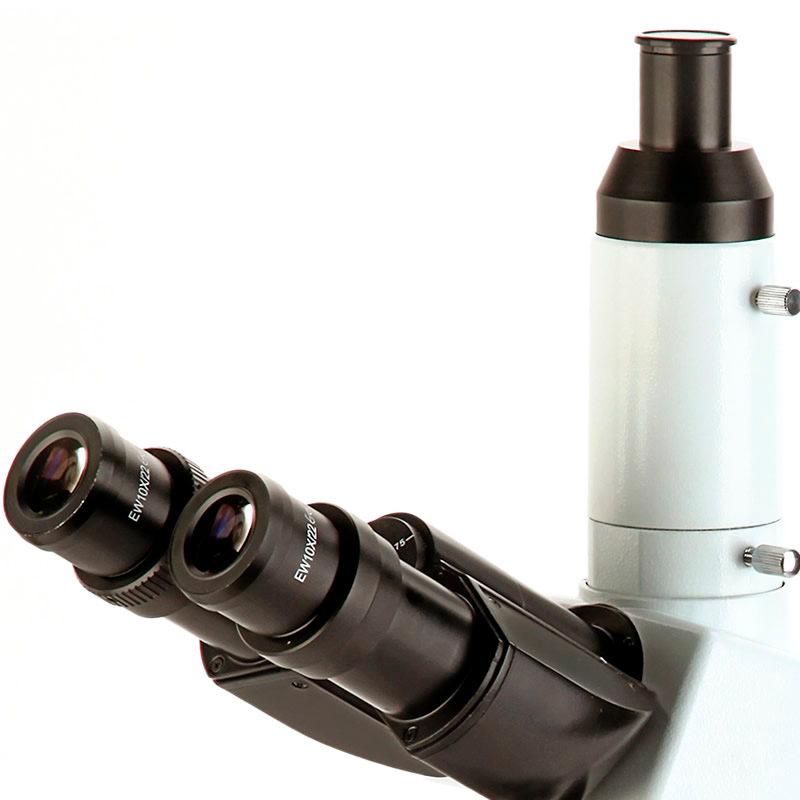

| Head | Seidentopf Trinocular Head, 30° Inclined, Interpupillary 48~75mm, Diopter Adjustable | |
| Eyepiece | Plan Eyepiece EW10x/22mm, Eyepiece Tube Dia.30mm | |
| Plan Eyepiece With Scale of Crosshair | ||
| Plan Eyepiece With Cross | ||
| Plan Eyepiece With Gridding | ||
| Objective | Strainfree Infinity Plan Achromatic Objective | |
| 4x/0.10/∞/- W.D.17.3mm | ||
| 10x/0.25/∞/0.17 W.D.10mm | ||
| 40x/0.65/∞/0.17 W.D.0.54mm | ||
| 100x/1.25/∞/0.17 W.D.0.13mm | ||
| Nosepiece | Backward Quintuple Nosepiece, Center Adjustable | |
| Analyzer | 360° Dial Rotation Analyzer, Minimum Scale Reading 0.1° (Vernier Scale) | |
| Switch Between Orthoscopic And Conoscopic Observation | ||
| Bertrand Lens Position Adjustable | ||
| Optical Compensator: λ Slip (First Class Red), 1/4λ Slip, Quartz Wedge | ||

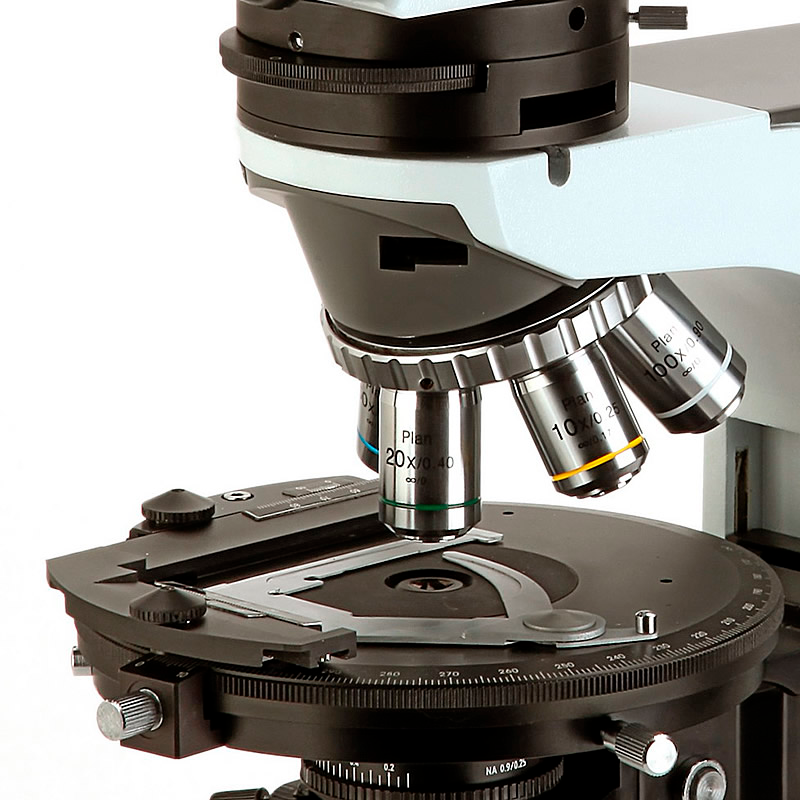

| Working Stage | Polarizing Rotatable Stage, Dia.170mm, Center Adjustable | |
| 360° Scale, Minimum Division 1° | ||
| Minimum Reading 6' By Means of Vernier Scale | ||
| 45° Click Stop Knob | ||
| Condenser | Strainfree Swing Condenser N.A.0.95/0.25 | |

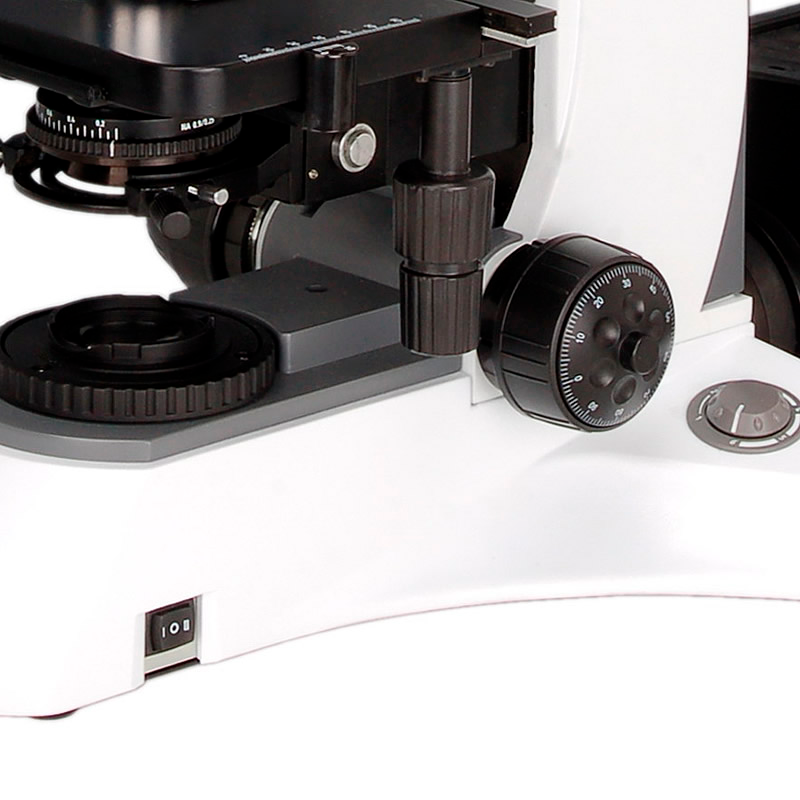

| Focusing | Coaxial Coarse & Fine Adjustment, Focusing Range 32mm, Fine Division 0.001mm, Coarse Stroke 37.7mm Per Rotation, Fine Stroke 0.1mm Per Rotation | |
| Polarizer | 360° Rotatable, 0° Position Adjustable | |
| Filter | Blue Filter, Dia.45mm | |
| Illumination | Transmit Illumination Halogen Lamp 24V100W, Brightness Adjustable | |
Technical specifications
| Weight | 16.5 kg |
|---|---|
| Manufacturer | Kalstein |

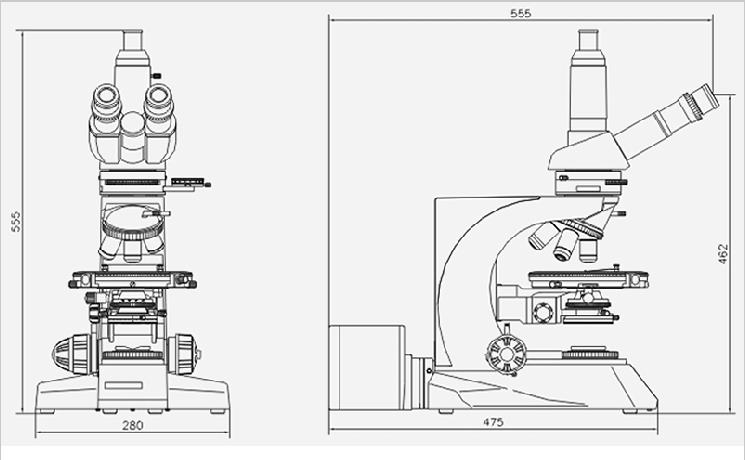

Image gallery
