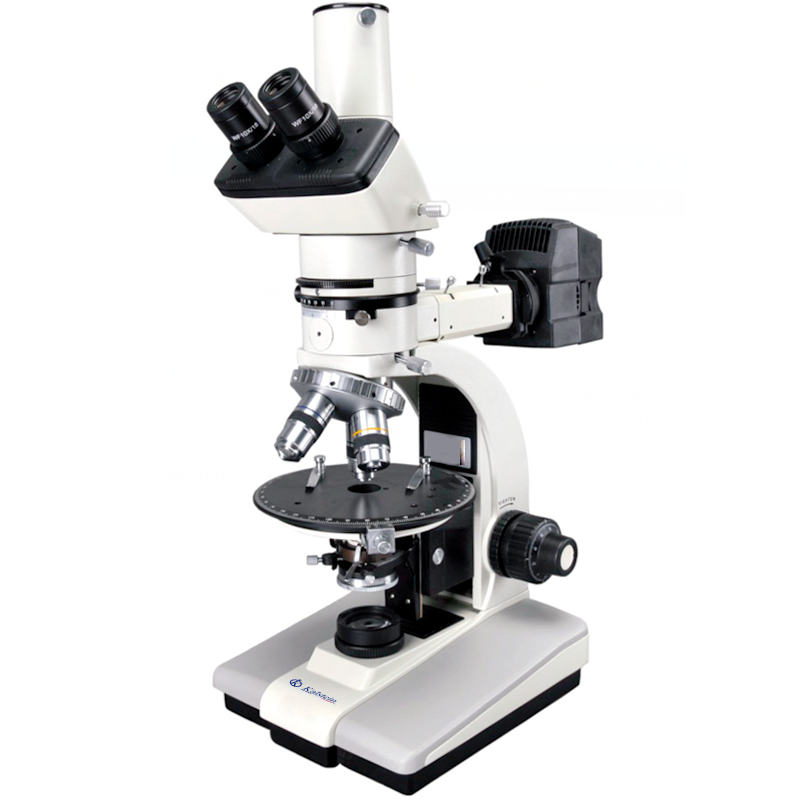

Polarizing Microscope YR0264 - YR0265
Polarizing Microscope YR0264 - YR0265 — equipo de laboratorio Kalstein con especificaciones técnicas, características avanzadas y soluciones profesionales certificadas para uso científico.
The Polarizing Microscope YR0264 - YR0265 is a versatile and essential tool for professionals in various fields such as crystallography, geology, medicine, and environmental science. Designed for both normal inspection and educational purposes, this microscope offers single polarization, orthogonal polarization, and conoscopic observation capabilities. Its flexible design with interchangeable components makes it ideal for detailed study and analysis of crystal and mineral structures, providing researchers with precise and reliable data.
Market Price
Polarizing microscopes are generally priced between 3,500 USD to 4,300 USD, depending on features and specifications. This competitive price range highlights the microscope's advanced capabilities and high-quality build, making it a sound investment for laboratories and institutions seeking accurate and efficient tools for research and education.
Frequently Asked Questions
What makes the YR0264 - YR0265 models unique? Both models are equipped with advanced optical components and a robust design, featuring strain-free achromatic objectives, rotatable analyzers, and a high-resolution polarizer for enhanced accuracy.
Are these microscopes suitable for educational purposes? Yes, their design and ease of use make them excellent choices for both educational settings and professional research.
Advantages and Disadvantages
The main advantages of the Polarizing Microscope YR0264 - YR0265 include its adaptability for various scientific applications, high precision through a range of interchangeable lenses, and robust design for longevity. One possible disadvantage is that new users may require some time to become familiar with its advanced features.
Product Use in the Field
Professionals use the Polarizing Microscope YR0264 - YR0265 in real-world applications like studying mineral samples in geology, analyzing chemical compounds in pharmaceuticals, or identifying toxins. Its precise focusing capabilities and clear optics ensure accurate sample analysis, even in complex scenarios.
Recommendations
For optimal performance and longevity of the microscope, it is recommended to regularly clean the optical components and lenses. Proper storage and handling will preserve its high-quality performance. Additionally, consider joining the Kalstein Plus platform to leverage exclusive offers and quick pricing options.
Features
- Designed for a variety of scientific applications, including crystallography and toxicology.
- Available with either a sliding binocular or trinocular viewing head.
- Equipped with high-quality strain-free achromatic and plan achromatic objectives.
- Durable build with interchangeable lenses and components.
- Compatible with transmitted and reflected illumination through adjustable halogen lamps.
Technical Specifications
| Model | YR0264 | YR0265 | |
| Head | Sliding Brinocular Viewing Head, Inclined at 45° | ● | - |
| Sliding Trinocular Viewing Head, Inclined at 45° | - | ● | |
| Eyepiece | Eyepiece WF10×/18 with scale of cross hair | ● | ● |
| Eyepiece WF10×/18 with graticule | ● | ● | |
| WF10x/18 | ● | ● | |
| Objective | Strain Free Achomatic Objective 4x,10x,25x,40x, 63x | ● | ● |
| Strain Free Plan Achomatic Objective 25x,40x, 63x | ● | ● | |
| Nosepiece | Backward quadruple nosepiece, Center adjustable | ● | ● |
| Focusing | Coaxial coarse & fine adjustment, Range 28mm,Fine division 0.002mm | ● | ● |
| Stage | Revolving Round Stage Diameter Φ160mm, Graduated in 1° Increments, Minimum resolution 6’ when using vernier scale | ● | ● |
| Mechanical stage, Moving rang 30X40mm | ● | ● | |
| Condenser | NA1.25 Abbe condenser with iris diaphragm & filter | ● | ● |
| Analyzer | Rotatable analyzer with gradation 0°-90° | ● | ● |
| Polarizer | 360° Rotatable | ● | ● |
| Bertrand Lens | Bertrand Lens,sliding in/out of optical path | ● | ● |
| Optical Compensator | λ Slip（First class red）, 1/ 4λ Slip, Quartz wedge | ● | ● |
| Illumination | 12V/20W Halogen lamp, Brightness adjustable（Transmitted illumination） | ● | ● |
| 12V/50W Halogen lamp, Brightness adjustable（Reflected illumination） | ● | ● | |
| Micrometer | ● | ● | |
Technical specifications
| Weight | 15 kg |
|---|---|
| Manufacturer | Kalstein |
