Portable Ph/DO Meter YR06381

ManufacturerKalstein

Description

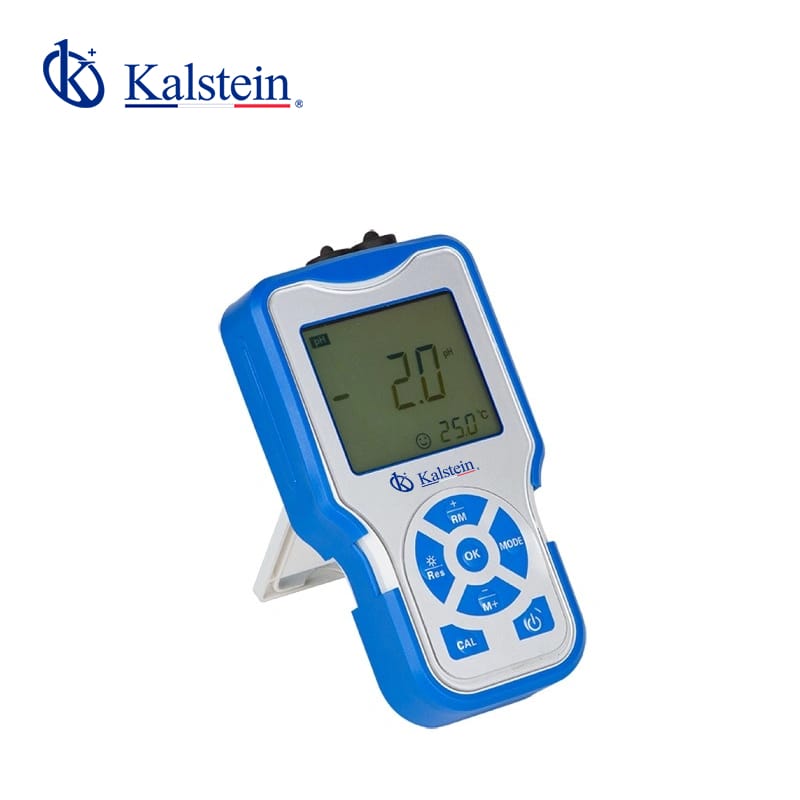

The Portable Ph/DO Meter YR06381 is a versatile and essential tool for anyone needing precise measurements in pH and dissolved oxygen levels. It features a large LCD screen with a white backlight for easy readability in various lighting conditions. With a built-in microprocessor, it offers intelligent functions such as auto calibration, automatic temperature compensation (ATC), data storage, and auto power off, making it ideal for both field and laboratory settings. Whether you are conducting water analysis or need reliable pH measurements, the Portable Ph/DO Meter YR06381 is designed to meet your needs with utmost accuracy and efficiency. Request a quote on Kalstein Plus today and elevate your measurement capabilities.

Price in the Market

This sophisticated gadget falls in a price range of USD 700 to USD 1,200, making it a competitive choice in the market for its robust features and user-friendly design. You can expect high precision and functionality without overburdening your budget. Please note that this is an average market price range.

Frequently Asked Questions

What type of batteries does the YR06381 use? The device is powered by two AA batteries (1.5V x2).

Can this meter conduct automatic calibration? Yes, it supports automatic calibration for both air saturated by water and water saturated by air.

Advantages and Disadvantages

The Portable Ph/DO Meter YR06381 offers significant advantages such as high accuracy, a wide measuring range, and an intuitive interface, making it accessible for various users. However, users must regularly replace batteries to maintain functionality.

Product Use in the Field

In practical scenarios, users find the Portable Ph/DO Meter YR06381 invaluable for quick testing in environmental surveys or water treatment facilities. Its IP57 dustproof and waterproof rating ensures durability in challenging conditions.

Recommendations

To ensure longevity and consistent performance, it’s crucial to store the device in temperatures between 5 and 35 ºC and avoid exposing it to excessive humidity. Regular calibration checks enhance the meter’s precision.

Features

  • Large LCD screen with controllable white backlight
  • Automatic Temperature Compensation (ATC)
  • Data storage capacity for 200 sets
  • Auto power off and undervoltage alert
  • Support for 3-point calibration in pH mode

Technical Specifications

Model YR06381
pH
Measuring range (-2.00~19.99)pH
Resolution 0.1/0.01 pH
Accuracy Meter:±0.01pH; Overall: ±0.02pH
Input impendance ≥1×1012 Ω
Stability ±0.01 pH/3h
Temp. compensation (0~100)ºC (Auto/manual)
mV
Measuring range ±1999.9mV
Resolution 1mV
Accuracy ±0.1% FS
DO
Measuring range (0 ~ 20.00) mg/L(ppm), (0 ~ 200.0)%
Resolution 0.1/0.01 mg/L(ppm), 1/0.1 %
Accuracy Electrode: ±0.10 mg/L, Instrument: ±0.40 mg/L
Response time ≤30s (25ºC, 90%response)
Residual current ≤0.1 mg/L
Temp. compensation (0 ~ 45)ºC (auto)
Salinity compensation (0 ~ 45) ppt (auto)
Pressure compensation (66 ~ 200) kPa (manual)
Auto calibration Air saturated by water, water saturated by air
Electrode type Polarographic
Temp.
Measuring range (0 ~ 100)ºC
Resolution 0.1ºC
Accuracy 5 ~ 60ºC:±0.4ºC Others: ±0.8ºC
Other
Data storage 200 sets
Power Two AA batteries (1.5V x2)
Ambient Temp. 5 ~ 35 ºC
Ambient humidity ≤85%
IP grade IP57 Dustproof and waterproof
Dimensions/N.W. (65×120×31)mm/180g
Shipping size/G.W. (460×300×55)mm/1Kg

Additional information

Weight 1 kg
