Description

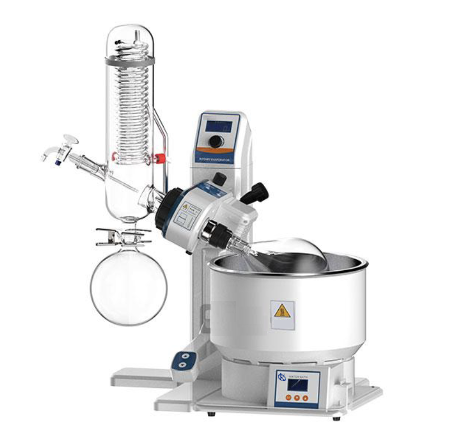

The Rotary Evaporator YR02306 is an advanced piece of laboratory equipment, ideal for processes like evaporation, distillation, or chemical separation. It is typically integrated with a water circulating vacuum pump and recirculating chiller, creating a comprehensive system that efficiently meets various experimental and production needs. Key features include an adjustable tilt angle for the evaporating flask, precise temperature control through a PID controller, and a motorized lift ensuring smooth operation. Its unique design and Teflon and Viton materials ensure optimal vacuum sealing, making it a reliable choice for laboratories.
Market Price
The market price for rotary evaporators typically ranges from $3,000 to $4,000 USD, depending on the features and specifications. This price range reflects the advanced technology and robust construction of the Rotary Evaporator YR02306. For exact pricing and to explore possible discounts or package deals, we encourage you to request a quote or generate an automatic quotation via our Kalstein Plus platform for the best pricing options.
Frequently Asked Questions
What accessories are included with the Rotary Evaporator YR02306?
The product does not include a vacuum pump or recirculator, but these can be purchased separately as models YR02301 (Recirculator) and YR05158 (Vacuum Pump).
What power supply does the rotary evaporator require?
The main machine operates within a wide power supply range from 100V to 240V~, 50/60Hz, ensuring versatility for different laboratory settings.
Advantages and Disadvantages
The Rotary Evaporator YR02306 offers several advantages, such as precise temperature control, noise-free operation, and ease of use with features like the quick lock button on the rotation axis. However, it requires additional components, like the vacuum pump and recirculator, to operate as a complete system, which could be seen as a disadvantage.
Usage in the Field
This equipment is crucial in organic chemistry labs for processes requiring solvent removal and recrystallization. Its motorized lift and adjustable tilt angle allow users to adapt the equipment to various substances and volumes, maintaining efficiency and effectiveness in everyday laboratory operations.
Recommendations
To maximize the lifespan and performance of the Rotary Evaporator YR02306, regular maintenance, such as inspecting and replacing sealing materials, is recommended. Ensure compatibility of the additional components like the vacuum pump and chiller for optimal functioning. Always operate within the specified temperature and pressure limits to maintain safety and operational integrity.
Features
- Patented double sealing technology with Teflon(PTFE) and FV rubber.
- Wide power supply range (100V to 240V~), compatible with global standards.
- Precise PID temperature control for consistent results.
- Adjustable tilt angle for evaporating flask enhances versatility.
- Quick lock button for easy installation or removal.
- Smooth operation with a motorized lift and synchronous belt drive mechanism.
- Independent machine and water bath design for future upgrades.
Technical Specifications
Model | YR02306 | |
Rotaion Speed | 10~280 rpm | |
Pressure rise rate of vacuum system | <=0.33kPa/min | |
Temperature Range | RT+5~95℃ | |
Temperature Stability | ±1℃ | |
Temperature Control | Keypad input, digital display | |
Speed Control | Knob setting, digital display | |
Lifting | Motorized lift | |
Lifting Distance | 150mm | |
Lifting Speed | 10mm/s | |
Rotary Motor Power | 40W | |
Heating Power | 1300W | |
Condensing Area | 0.126m2 | |
Evaporating Flask | 500ml, 1000ml | |
Receiving Flask | 1000ml | |
Vacuum Sealing | Double sealing rings made of Teflon+ Viton materials | |
Water Bath size ·Capacity | 250×130mm·6.5L | |
Evaporating Speed
|
Water | 23ml/min |
Ethanol | 26ml/min | |
Power Supply
|
Main Machine | 100V~240V, 50/60Hz |
Water Bath | 110V~, 60Hz or 220-240V~, 50/60Hz | |
Ambient temperature | 5~35℃ | |
Environment Relative Humidity | <=70 | |
Protection Class of Shell | IP20 | |
Pollution Prevention Grade | Grade 2 | |
Dimensions | 595W*390D*680Hmm | |
Net Weight
|
Main Machine | 10KG |
Water Bath | 3.9KG | |
The Rotary Evaporator model YR02306 does not include vacuum pump or recirculator, these can be included as required, the models would be YR02301 (Recirculator) + YR05158 (Vacuum Pump), for the complete set. |
