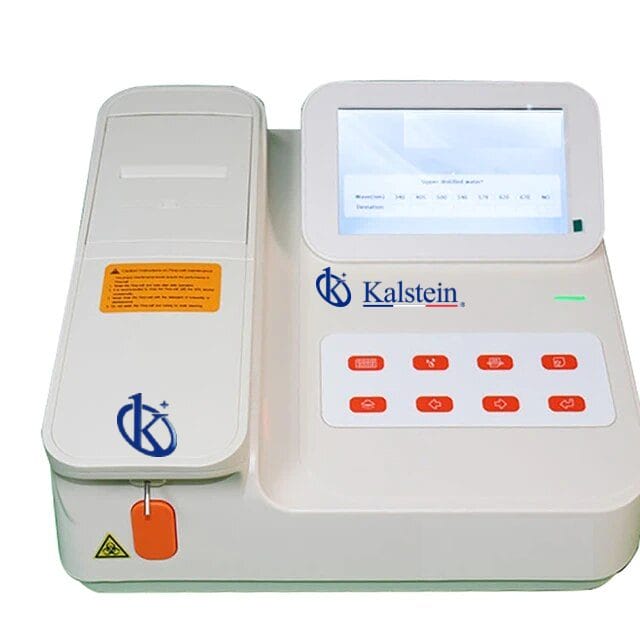

Semi-auto Chemistry Analyzer YR06078

ManufacturerKalstein

Description

The Semi-auto Chemistry Analyzer YR06078 is an advanced, compact device designed for accurate and efficient clinical chemistry analyses. Equipped with a filter system offering seven wavelengths ranging from 340nm to 800nm, plus an optional filter, this device ensures versatile applications. The analyzer features a 7-inch color LCD touch screen for easy navigation and operation, supporting a significant memory capacity that stores up to 10,000 results. With the ability to handle 75 parameters, including 47 default and 28 user-defined, it provides extensive diagnostic capabilities suitable for medium to high-throughput laboratories.

Market Price Range

The Semi-auto Chemistry Analyzer YR06078 is competitively priced within the market. The average price for such sophisticated equipment typically ranges from approximately $2,500 to $3,300. This strategic pricing ensures you receive exceptional value without compromising on the quality and performance you expect from a top-tier chemistry analyzer.

Frequently Asked Questions

What types of tests can be performed with this analyzer? The YR06078 can handle a wide array of clinical chemistry tests, making it versatile for various laboratory applications.

Is the touch screen easy to use? Yes, the 7-inch color touch screen is user-friendly and designed for intuitive navigation.

Advantages and Disadvantages

Advantages: High storage capacity for results, user-friendly interface, and flexibility with an optional wavelength filter.

Disadvantages: Being semi-automatic may require more manual intervention compared to fully automatic systems.

Product Use in the Field

This analyzer finds application in diverse clinical laboratory settings, offering precise measurement and analysis of biochemical parameters. It’s a vital tool for diagnostics, facilitating efficient patient management within hospitals and clinics.

Recommendations

To maximize the lifespan and performance of the YR06078, regular calibration and maintenance are recommended. Using the recommended power supply range and keeping the device in controlled environments can prevent technical issues.

Features

  • Filter system with 7 wavelengths, 1 optional
  • Compact design with a user-friendly LCD touch screen
  • Capable of processing 75 parameters
  • Large memory capacity for up to 10,000 results

Technical Specifications

Model YR06078
Photometric Range 0.000-3.000Abs
Resolution 0.001Abs(displayed), 0.0001Abs(calculated)
Light Source Tungsten halogen lamp, 6V/10W
Wavelengths 340, 405, 500, 546, 578, 620, 670(nm),
1 more optional filter
Wavelength Accuracy ±2nm
Half brand width ≤10nm
Aspiration Volume 200-6000uL
Carryover ≤1%
Memory 75 test protocols, 10,000 test results
Interface RS-232, USB, LAN
Flow Cell 30uL metal flow cell
Cuvette Mode 12.5mm*12.5mm cuvette optional
Temperature Control 25°C, 30°C, 37°C ±0.5°C and
Ambient temperature
Display 7″ color touch screen LCD (800*480 pixels)
Input USB mouse & keyboard
Output Internal printer or external printer (optional)
Dimension L * W * H 350mm×362mm× 180mm
Power Supply AC100V-240V, 50Hz/60Hz

Additional information

Weight 12 kg
