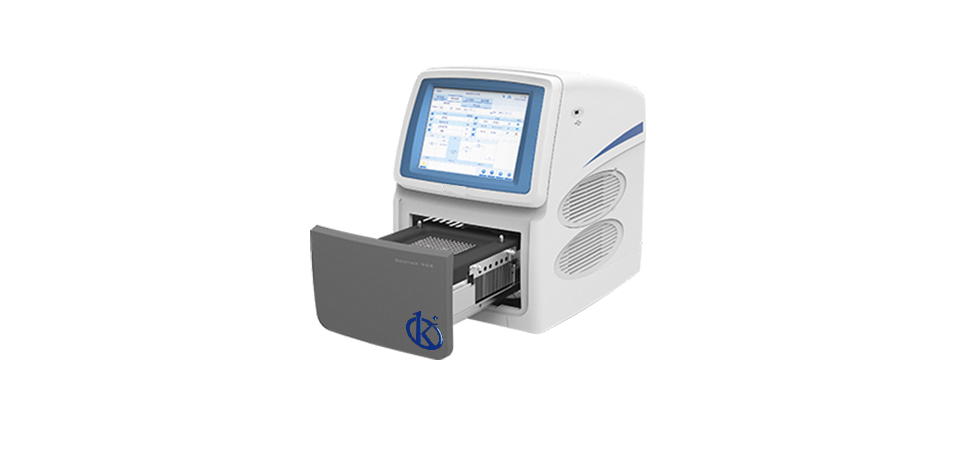

Real-time PCR System YR01869
Real-time PCR System YR01869 — equipo de laboratorio Kalstein con especificaciones técnicas, características avanzadas y soluciones profesionales certificadas para uso científico.
The Real-time PCR System YR01869 is the ultimate solution for high-end laboratories that require precision and efficiency in PCR assays. This state-of-the-art machine boasts five fluorescence channels, enabling it to process up to 96 samples simultaneously, significantly reducing the time needed for testing. Its robust temperature control system, based on the Peltier heating/cooling method, assures precise temperature management with ramp rates greater than 6.1℃/s for heating and 5.0℃/s for cooling. With a user-friendly interface and powerful analysis software, the YR01869 provides maximum reliability for all your real-time PCR needs, ensuring accurate results for a wide range of applications.
Market Price
When considering the acquisition of a high-quality real-time PCR system, budget considerations are crucial. The Real-time PCR System YR01869 is competitively priced within the market, generally found in the range of $8500 to $9500 USD. This range reflects its advanced features and the benefits it provides to laboratory environments looking for dependable solutions.
Frequently Asked Questions
- What dye compatibility does the system support? The system supports various dyes across its six channels, including FAM, SYBR Green I, and others.
- Is the device easy to operate? Yes, it features user-friendly software and a 10.4-inch touchscreen for easy control.
Advantages and Disadvantages
Among the numerous advantages of the YR01869 system are its swift processing times and robust software for data analysis. However, due to its advanced features, there may be a learning curve for new users. Ensuring operators are adequately trained can mitigate this issue efficiently.
Using the Product in the Field
The Real-time PCR System YR01869 is expertly designed for practical laboratory applications, where precision and quick processing times are paramount. Its reliable performance even during power failures ensures uninterrupted operations in critical research or clinical settings.
Recommendations
For optimal performance, it is recommended to regularly update the software and conduct routine maintenance checks. Users should ensure the system is placed on a stable surface to prevent vibrations that might affect the results.
Key Features
- Processes 96 samples with just 7 seconds of scanning time.
- Efficient temperature control with high ramp rates.
- User-friendly with dual-control modes: touchscreen and PC control.
- Comprehensive data analysis supported by powerful software.
- Automatic recovery feature for power failures.
Technical Specifications
| Model | YR01869 |
| Throughput | 96 |
| Fluorescence Channels | 6 |
| Fluorescence Scanning Time | 7s |
| Dye Compatibility | Channel 1: FAM, SYBR Green I , SYTO 9, Eva Green, LC Green; Channel 2: HEX, VIC, TET, JOE; Channel 3: ROX, Texas Red; Channel 4: Cy5; Channel 5: Alexa Fluor 680; Channel 6: FRET |
| Optical System | |
| Light Source | High-brightness, long life and maintenance-free LED light source, excitation from the top |
| Detector | Photodiodes (PDs), top scanning |
| Excitation Range | CH1: 465nm CH2:527nm CH3:580nm CH4:632nm CH5:680nm CH6:465nm |
| Detection Range | CH1: 510nm CH2:563nm CH3:616nm CH4:664nm CH5:730nm CH6:616nm |
| Fluorescence Dynamic Range | Adjustable |
| Sample Dynamic Range | From 101 to 1010 copies |
| Thermal Black | |
| Heating Method | Peltier |
| Heating Rate | >6.1 ℃/s |
| Cooling Rate | >5.0 ℃/s |
| Temperature Uniformity | ±0.1 ℃ |
| Temperature Accuracy | ≤0.1 ℃ |
| Gradient Range | 1℃-40 ℃ |
| Gradient Block | 12 row |
| Special Temperature Protocol | Thermal gradients PCR, long PCR, Touch Down PCR |
| Sample Testing Linearity and Repeatability | Linear correlation: /r/ ≥ 0.999; Repeatability: cycle threshold (Ct) value CV≤0 0.5% |
| Software Functions | |
| Control Modes | Model 1: 10.4 inch touch screen; Mode 2: PC direct control |
| Power Failure Protection | Automatically start running experiments after power supply, no need to wait PC software |
| Data Storage and Transmission | Upload and download through USB disk. 1000 results can be stored in machine |
| Reporting Function | Templates reserved; customized experiment report |
| Key Applications | Relative quantification, absolute quantification, melting curve analysis, SNP analysis |
| Operating System for PC | Win7/Win10/Win11 |
| Power Supply and Power Consumption | AC 100-240V,50-60HZ, 900VA |
| Weight | 30 Kg (net) |
| Instrument Dimension | 555*475*484mm (W*L*H) |
| Suitable Consumables | 0.2mL 96-well plates, 8-tube strips, single tubes (clear, frosted and white). |
Technical specifications
| Weight | 38 kg |
|---|---|
| Manufacturer | Kalstein |
