Description

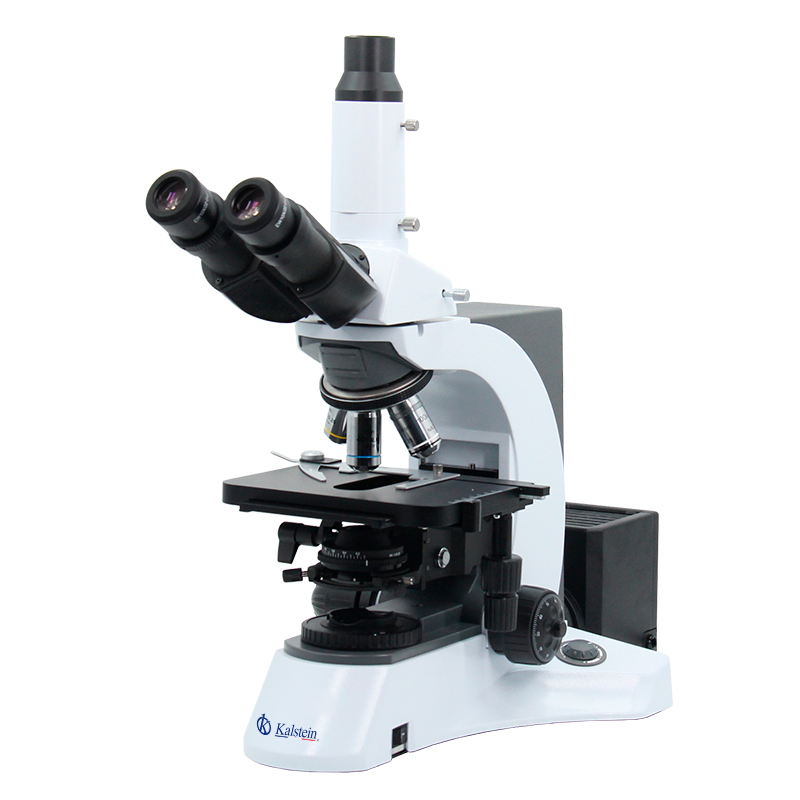

The Trinocular Laboratory Microscope YR0231 is an advanced optical instrument designed to meet the demanding needs of research and laboratory environments. It features a Seidentopf trinocular head, inclined at 30° and rotatable 360°, with adjustable interpupillary distance for optimal viewing comfort. The infinity plan achromatic objectives (4x, 10x, 40x, 100x) ensure superior resolution and clarity, essential for detailed observations. With the double-layer mechanical stage and smooth coaxial focusing system, users can effortlessly examine samples with precision. The built-in halogen lamp with Kohler illumination offers adjustable brightness, ideal for diverse lighting conditions. Whether you’re conducting routine analyses or involved in complex research, this microscope stands as a dependable choice.
Market Price
The pricing for advanced trinocular microscopes like the YR0231 typically ranges from $1,000 to $5,000 depending on the specifications and the brand. The YR0231 is competitively priced within this range, offering excellent value for the features it includes. For a precise quote, we invite you to generate a quote automatically through our platform, Kalstein Plus.
Frequently Asked Questions
What type of lighting does the YR0231 use?
The microscope is equipped with a 6V30W halogen lamp and offers external Kohler illumination for superior light control.
Can the trinocular head be adjusted?
Yes, the trinocular head is 30° inclined and can be rotated 360°, with adjustable interpupillary distance from 48mm to 75mm.
Is this microscope suitable for dark field microscopy?
Yes, the YR0231 supports optional dark field, polarizing, phase contrast, and fluorescent functionalities.
Advantages and Disadvantages
One of the primary advantages of the Trinocular Laboratory Microscope YR0231 is its versatility, accommodating a range of techniques such as bright field, dark field, and phase contrast. The infinity plan optics deliver high-quality image clarity and detail. However, it may require users to purchase additional accessories for specific applications, which could increase the overall cost. Despite this, the modular nature ensures it can be tailored to specific research needs.
Product Usage in the Field
The YR0231 finds its application in diverse fields, from academic research to clinical diagnostics. Its adaptability allows researchers to perform detailed examinations of biological specimens, aiding in accurate analysis and reporting. The robust construction and reliable optical performance make it a favored choice in laboratory environments.
Recommendations
To maximize the effectiveness of the Trinocular Laboratory Microscope YR0231, regular maintenance and cleaning of the lenses are recommended. Additionally, calibrating the microscope periodically ensures continued precision. Users are also encouraged to explore the range of optional accessories to expand the microscope’s capabilities for specific research applications. For customized solutions, consider consulting with our technical team via our platform, Kalstein Plus.
Features
- Seidentopf Trinocular Head, 30° Inclined, 360° Rotatable
- Infinity Plan Achromatic Objectives: 4x, 10x, 40x, 100x
- Double Layer Mechanical Stage with Moving Range 55*75mm
- Swing Out Condenser N.A.0.9/0.25
- Halogen Lamp 6V30W with Adjustable Brightness
- Coaxial Coarse & Fine Adjustment Focusing System
Technical Specifications
| Model | YR0231 | |
| Optical System | Infinity Plan Optical System | |
| Function | Bright Field, Optional Dark Field, Polarizing, Phase Contrast, Fluorescent | |
| Head | Seidentopf Trinocular Head, 30° Inclined, 360° Rotatable, Interpupillary 48~75mm, Left Eyepiece Tube Diopter Adjustable | |
| Eyepiece | Extra Wide Field Eyepiece EW10x/22mm, Eyepiece Tube Dia.30mm | |
| Nosepiece | Backward Quintuple Nosepiece, With Slide Slot | |
| Objective | Infinity Plan Achromatic Objective 4x,10x,40x,100x | |
| Focusing | Coaxial Coarse & Fine Adjustment, Focusing Range 24mm, Fine Division 0.001mm, Coarse Stroke 37.7mm | |
| Working Stage | Double Layer Mechanical Stage, 185*142mm, Moving Range 55*75mm | |
| Condenser | Swing Out Condenser N.A.0.9/0.25 | |
| Illumination | Halogen Lamp 6V30W, External Kohler Illumination, With Asperical Collector, Brightness Adjustable | |
| Filter | Green, Blue | |
| Adapter | Trinocular Adapter + Eyepiece Tube Photo Adapter Dia.23.2mm | |
| Optional Accessories | ||
| Head | Seidentopf Binocular Head, 30° Inclined, Interpupillary 48~75mm | YR0231-op1 |
| Upgrade to Tilting Binocular Head 5°~35° | YR0231-op2 | |
| Upgrade to Tilting Trinocular Head 5°~35° | YR0231-op3 | |
| Eyepiece | Extra Wide Field Eyepiece EW10x/20mm, Eyepiece Tube Dia.30mm | YR0231-op4 |
| Extra Wide Field Eyepiece EW20x/12mm, Eyepiece Tube Dia.30mm | YR0231-op5 | |
| Extra Wide Field Eyepiece EW15x/16mm, Eyepiece Tube Dia.30mm | YR0231-op6 | |
| Objective | Infinity Plan Achromatic Objective 20x | YR0231-op7 |
| Infinity Plan Achromatic Objective 60x | YR0231-op8 | |
| Nosepiece | Sextuple Nosepiece | YR0231-op9 |
| Illumination | Upgrade To Halogen Lamp 24V50W, For Better Dark View | YR0231-op10 |
| Upgrade To Halogen Lamp 24V100W, For Better Dark View | YR0231-op11 | |
| Adapter | 0.45x C-Mount | YR0231-op12 |
| Dark Field | Dark Field Condenser, N.A. 0.7~0.9, Dry, | YR0231-op13 |
| Use With 40x Or Lower Magnification Objective | ||
| Dark Field Condenser, N.A. 1.25~1.36, Immersion, | YR0231-op14 | |
| Use With 100x Objective | ||
| Dark Field Objective, Infinity Plan 100x(Oil) | YR0231-op15 | |
| Dark Field Objective, Infinity Plan 100x(Oil), With Iris Diaphragm | YR0231-op16 | |
| Phase Contrast | Infinity Plan Turret Phase Contrast Set | YR0231-op16 |
| –Infinity Plan Turret Phase Contrast Condenser | ||
| –Infinity Plan Phase Contrast Objective 4x,10x,40x,100x | ||
| –Centering Telescope 10x | ||
| –Green Filter | ||
| Infinity Achromatic Turret Phase Contrast Set | YR0231-op17 | |
| –Infinity Achromatic Turret Phase Contrast Condenser | ||
| –Infinity Achromatic Phase Contrast Objective 4x,10x,40x,100x | ||
| –Centering Telescope 10x | ||
| –Green Filter | ||
| Fluorescent | EPI-Fluorescent Kit, Upgrade to A16.1028 | YR0231-op18 |
| –Power Supplier 220V/110V Interchangeable, Digital Display | ||
| –100WHBO Ultra Hi-Voltage Spherical Mercury Lamp | ||
| –Barrier To Resist Ultraviolet Light | ||
| –Fluorescence Free Oil | ||
| –Excitation Filter B/G | ||
| EPI-Fluorescent Kit, Upgrade to A16.1028 | YR0231-op19 | |
| –Power Supplier 220V/110V Interchangeable, Digital Display | ||
| –100WHBO Ultra Hi-Voltage Spherical Mercury Lamp | ||
| –Barrier To Resist Ultraviolet Light | ||
| –Fluorescence Free Oil | ||
| –Excitation Filter B/G/V/U | ||
| EPI LED Fluorescent Kit, Upgrade To A16.1029 | YR0231-op20 | |
| EPI Light 3W LED 465~475nm, B Excite Filter BP460~490, | ||
| EPI Light 3W LED 525~530nm, G Excite Filter BP510~550 | YR0231-op21 | |
| Polarizing | Polarizing Attachment, Polarizer, Analyzer, Integrate Device | YR0231-op22 |
