Veterinary Digital X-Ray (DR) YR06162

SKU:YR06162 · By Kalstein

Category:Veterinary X-Ray

Veterinary Digital X-Ray (DR) YR06162

Veterinary Digital X-Ray (DR) YR06162 — equipo de laboratorio Kalstein con especificaciones técnicas, características avanzadas y soluciones profesionales certificadas para uso científico.

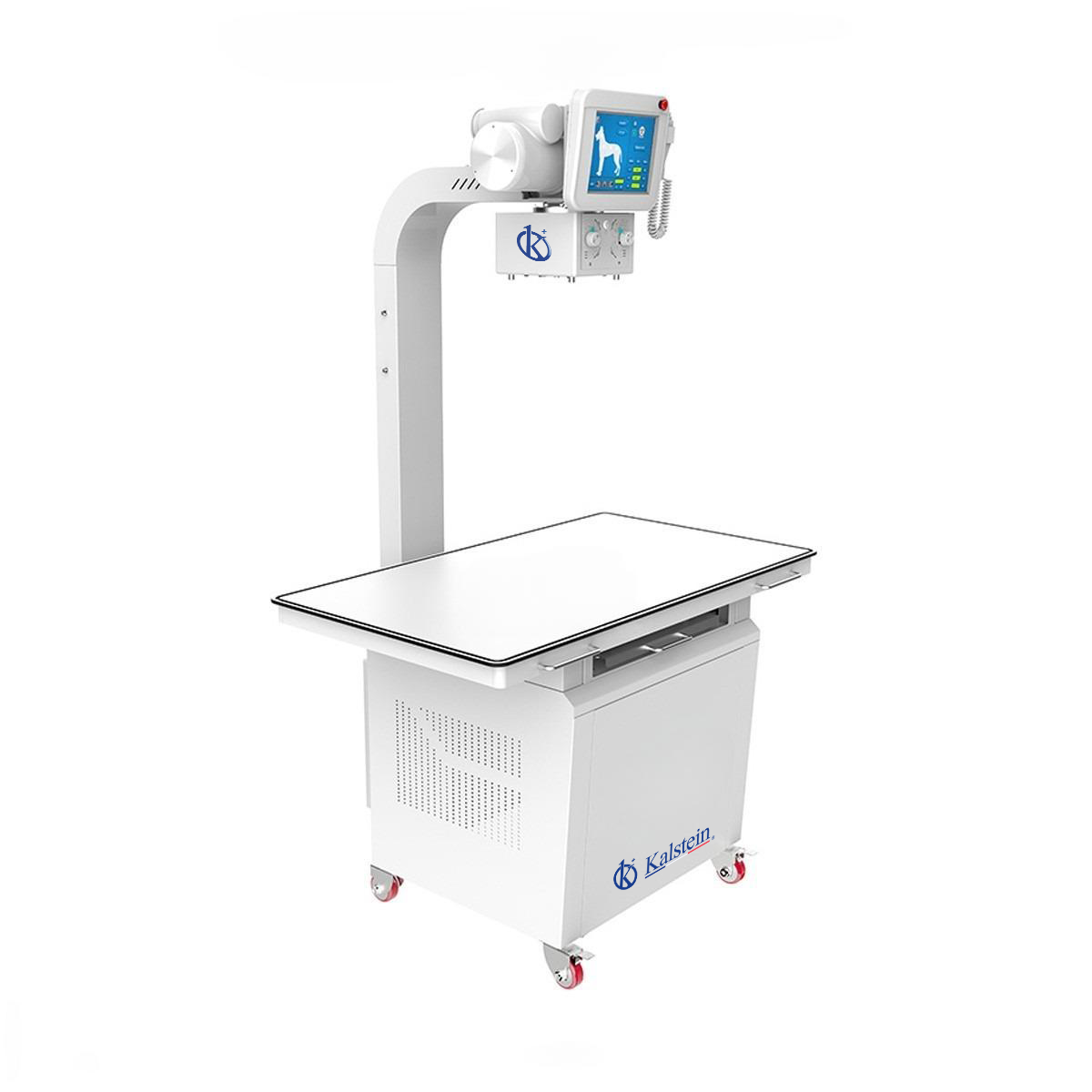

The Veterinary Digital X-Ray (DR) YR06162 is a cutting-edge digital radiography solution designed specifically for veterinary applications. This system offers a powerful 200mA HF generator and console, ensuring high-frequency performance with maximum output power of 16kW. Equipped with a Toshiba 7239 X-ray tube, a JPI grid, a reliable flat panel detector, and an intuitive computer with an LCD screen, this device facilitates accurate and detailed imaging of animals. The pet-friendly table allows easy positioning of animals, making procedures efficient and stress-free for both veterinarians and pets. Additionally, automated features like capacity lock, fault diagnosis, and self-protection ensure safe and smooth operation.

Price In The Market

The Veterinary Digital X-Ray (DR) YR06162 is competitively priced in the market, with prices typically ranging between $34,000 and $36,000 USD. This broad range ensures you can find an option that fits your budget while still obtaining a top-quality radiography system.

Frequently Asked Questions

What is the maximum tube voltage of the system? The system offers a maximum tube voltage of 125kV, providing flexibility for a variety of imaging requirements. Is this system suitable for larger animals? Yes, it is designed to accommodate both small and large animals, thanks to its adjustable pet table and range of tube currents. How does the automatic fault diagnosis work? The automatic fault diagnosis function continuously monitors the system for errors and alerts the user to ensure uninterrupted service.

Advantages and Disadvantages

Advantages: - High-resolution imaging capabilities improve diagnostic accuracy. - Specialized design for veterinary use simplifies animal positioning. - Automatic features enhance operational safety and efficiency. Disadvantages: - Initial cost is high compared to conventional systems. - Requires a specific power supply of AC 220V±22V for optimal operation.

Use of the Product in the Field

The Veterinary Digital X-Ray (DR) YR06162 is ideal for everyday use in veterinary clinics and hospitals. It efficiently handles a broad spectrum of imaging needs, from diagnosing fractures to detecting internal anomalies. Its reliable performance ensures that veterinarians can depend on clear images for better diagnosis.

Recommendations

To get the most out of your Veterinary Digital X-Ray (DR) YR06162, it is recommended to conduct regular maintenance checks as advised by the manufacturer. Keeping the software updated and calibrating the system regularly will ensure its longevity and performance. Consider exploring the Kalstein Plus platform to request a quote or generate one instantly for convenience.

Features

  • 200mA HF generator and console.
  • Toshiba 7239 X-ray tube.
  • Pet-friendly table design.
  • Flat panel detector with high resolution.
  • Automated fault diagnosis and capacity lock.

Technical Specifications

ModelYR06162
Maximum output power16kW
Input voltage rangeAC 220V±22V
Applicable supportRadiography
Inverter frequency≥30kHz
Tube voltage range of radiography40kv~125kv
Range of tube current16~200mA
Range of exposure time0.0025s~6.4s
mAs range0.5mAs~320mAs
Communication interfaceRS-232
OtherCapacity lock automatically, fault diagnosis automatically, self-protection
Max. Tube voltage125kV
FocusSmall focus:1.0mm Large focus:2.0mm
Anode input powerSmall focus:20KW Large focus:40KW
Anode speed2800 R/M
Target angle17.5°
Anode heat content100kJ(140kHU)

Technical specifications

DimensionsL 55 × W 48 × H 80 cm
Weight105 kg
ManufacturerKalstein
