Description

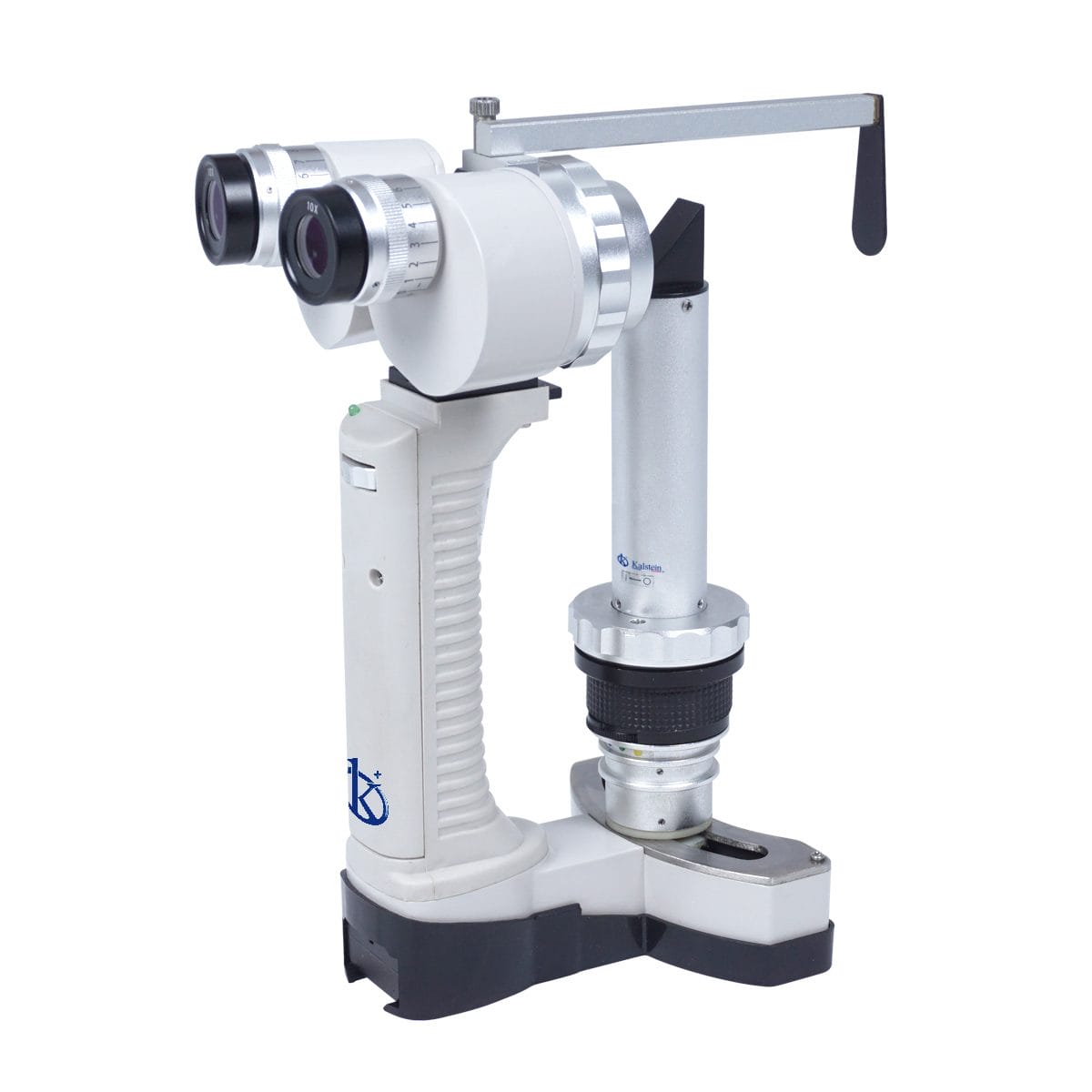

The Veterinary Handheld Slit Lamp (2-Magnification) YR06199 is an indispensable tool for veterinarians seeking portable and precise ophthalmic examination. With a high-brightness LED providing up to 30,000 Lux, this device ensures clear and sharp observations under various conditions. Its compact and lightweight design, at only 700 grams including the battery, allows for easy handling during field operations. Equipped with adjustable magnification of 10X and 16X, interchangeable filters, and a battery life of 5 to 6 hours, this slit lamp offers adaptability and efficiency for comprehensive veterinary eye examinations.
Price in the Market
The Veterinary Handheld Slit Lamp YR06199 typically ranges in price from $3,000 to $3,800 USD in the market, offering competitive value considering its advanced features and portability. Although prices may vary based on the supplier and region, investing in this high-precision instrument promises enhanced diagnostic capabilities for veterinary professionals.
Frequently Asked Questions
What Are the Main Features of the Veterinary Handheld Slit Lamp?
This slit lamp includes a high-brightness LED light, two magnification settings (10X and 16X), adjustable slit width and height, and multiple filter options.
Is It Suitable for Field Use?
Yes, its light weight and portability make it ideal for field use, making it easier to perform ophthalmic exams in diverse environments.
Advantages and Disadvantages
The primary advantages of the Veterinary Handheld Slit Lamp YR06199 include its portability, high brightness, and precise optical features, which allow for detailed eye examinations. However, due to its reliance on battery power, regular charging is necessary to maintain uninterrupted use.
Use of the Product in the Field
In practical settings, this handheld slit lamp allows veterinarians to conduct thorough eye exams on animals of varying sizes. Its telescopic forehead-rest and adjustable diopter make it easy to adapt to different inspection scenarios, whether in the clinic or outdoors.
Recommendations
To maximize the lifespan and performance of your Veterinary Handheld Slit Lamp, it is recommended to charge the device fully before use and keep it clean and free of dust. Regularly checking and replacing filters when necessary will also ensure optimal functionality.
Features
– High-brightness LED lights with up to 30,000 Lux
– Two magnification settings: 10X and 16X
– Lightweight design at 700g
– Adjustable slit width and height
– Multiple filters: heat absorption, yellow, red-free (green), cobalt blue
– 5-6 hours of battery life
Technical Specifications
Model Item | YR06199 | |
Microscope
|
Microscope Type | Converging |
Objective Lens | 1.0X、1.6X | |
Eyepiece | 10X | |
Total Magnifications | 10X、16X | |
Working Distance | 81mm | |
Intraocular Distance | 45mm―78mm | |
Diopter Adjustment | -8D―+8D | |
Illumination
|
Slit Width | 0―12mm Continuous |
Slit Height | 1-12mm | |
Slit Angle | ф0.2mm,ф1mm,ф5mm,ф12mm | |
Filters | Heat Absorption; Yellow; Redfree(Green); Cobalt Blue | |
Illumination Bulb | High-Brightness White LED | |
Brightness | ≥30000Lux | |
Power
|
LED Working Voltage | d. c. 3 V |
Battery | Li-ion Battery; 7.4V, 680mAh. Full Battery can supply 5-6 hours continuously | |
Weight and Dimension
|
Dimension | 169.5mm×109.5mm×228.5mm |
Weight | ≤4kg (Including Battery) |
