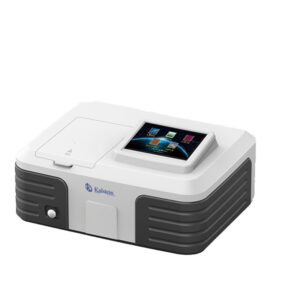

Visible Spectrophotometer – YR01847

FabricantKalstein





Description

Visible Spectrophotometer – YR01847 is designed to enhance performance with its superior wavelength accuracy and resolution. This is achieved through its innovative lead screw structure. Its auto-setting wavelength feature allows users to adjust the wavelength effortlessly using arrow keys, minimizing operational errors. Furthermore, the device is equipped with a microprocessor that facilitates easy parameter configuration through numerical keys. The spectrophotometer also includes a USB port, enabling seamless data output for spectrum scanning and multi-wavelength testing.

Market Price

The Visible Spectrophotometer – YR01847 holds a competitive position in the market, with prices typically ranging from $1900 to $2700 USD. This average covers the standard cost for high-quality spectrophotometers of its kind, ensuring laboratories can make a worthwhile investment with guaranteed value.

Frequently Asked Questions

Q: How is the wavelength accuracy ensured?
A: The instrument uses a lead screw structure which significantly improves wavelength accuracy and resolution.

Q: Can the device connect to a computer?
A: Yes, it features a USB port for data connectivity, allowing for extensive photometric analysis on a computer.

Advantages and Disadvantages

Advantages: The primary benefit of the Visible Spectrophotometer – YR01847 is its precision in wavelength settings and stabilization ensured by its thick optical aluminum base. Additionally, the automatic wavelength setting and data output capabilities via USB make it user-friendly and efficient for complex tests.

Disadvantages: Its sophisticated technology may require a learning curve for new users unfamiliar with advanced spectrophotometric equipment.

Field Use

In practical applications, the Visible Spectrophotometer – YR01847 is frequently used in biochemical, pharmaceutical, and chemical analysis settings. It’s utilized for determining the concentration of substances via its capability to establish standard curves and perform kinetic analysis, making it an essential tool in research and laboratory environments.

Recommendations

To maximize efficiency, it’s recommended to regularly calibrate the spectrophotometer according to standard procedures and ensure the USB software is updated for optimal data management. Including regular maintenance checks will significantly prolong the life and accuracy of the instrument.

Features

The instrument offers advanced features such as:

  • Easy-to-use numerical keys for quick setup.
  • Optional software for data output enables versatile applications.
  • Sturdy design with an 8mm die-cast aluminum base for improved stability and reliability.

Technical Specifications

Model YR01847
Wavelength Range 320-1100nm
Bandwidth 2nm
Wavelength Accuracy ±0.5nm
Wavelength Repeatability ≤0.2nm
Wavelength Setting Auto
Photometric Accuracy ±0.2%T
Photometric Repeatability 0.2%T
Photometric Range -0.3-3A, 0-200%T, 0-9999C
Stability ± 0.001A/h @ 500nm
Stray Light ≤0.05%T@220nm, 360nm
Data Output Port USB Port
Printer Port Parallel Port
Display 128*64 Dots LCD
Lamps Tungsten Lamp
Detector Silicon Photodiode
Power Requirements AC 220V/50Hz or AC 110V/60Hz
Dimension 460*360*225mm
Weight 16kg

Additional information

Weight 17 kg
Variaciones

(YR01847) W/O PC (YR01849) With PC
