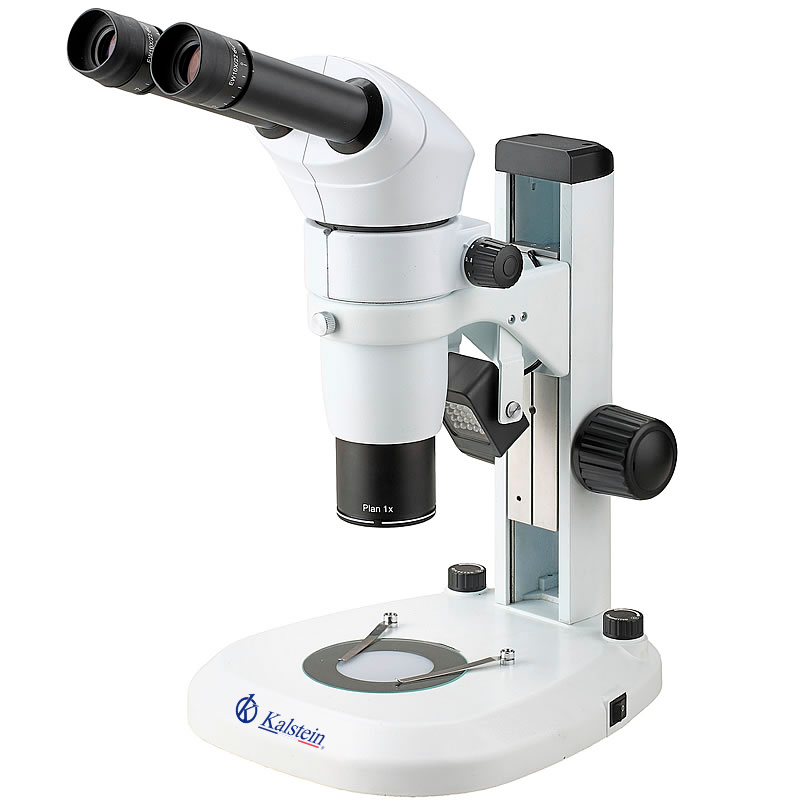

Zoom Stereo Microscope YR0246 // YR0248
Zoom Stereo Microscope YR0246 // YR0248 — Kalstein laboratory equipment with technical specifications, advanced features, and certified professional solutions for scientific use.
The Zoom Stereo Microscope YR0246 // YR0248 offers cutting-edge microscopy solutions with advanced features like a parallel optical system designed for modular functionality, and a significant zoom ratio of up to 1:10 with an adjustable tilting head for user comfort. This microscope model provides dual LED illumination for both transmitted and reflected lighting, ensuring a bright and long-lasting performance for up to 6000 hours. Complete with a range of accessories including polarizing, dark field, and fluorescent attachments, this microscope adapts to diverse research needs.
Market Price Overview
The typical price range for high-end stereo microscopes like the Zoom Stereo Microscope YR0246 // YR0248 starts around $3400 and can go up to $4200, depending on customizations and supplier. This competitive range underscores the value of precision, durability, and versatility that comes with this model.
Frequently Asked Questions
What is the zoom capability of the microscope? The YR0248 model offers a zoom range of 0.8~8.0x, with a zoom ratio of 1:10, which is ideal for detailed observation.
Is the illumination adjustable? Yes, the LED illumination is adjustable, allowing for optimal lighting in various observation conditions.
Advantages and Disadvantages
Advantages: The microscope is highly modular, providing a flexible design for various scientific needs. Its extensive range of accessories enhances its versatility across different applications.
Disadvantages: Although feature-rich, the cost may be a consideration for those on a tight budget or needing fewer functionalities.
Product Use in the Field
The Zoom Stereo Microscope is ideal for laboratory environments that demand precision and adaptability, such as biological research, material science, and educational settings. Its easy adjustment features and robust construction make it reliable for regular use in professional settings.
Recommendations
For optimal performance and longevity, it is recommended to regularly clean the lenses and ensure proper storage when not in use. Additionally, joining the Kalstein Plus platform allows for streamlined procurement and access to technical support.
Features
- Parallel optical system with modular design
- Zoom ratio up to 1:10 with adjustable tilting head
- Dual LED illumination for transmitted and reflected light

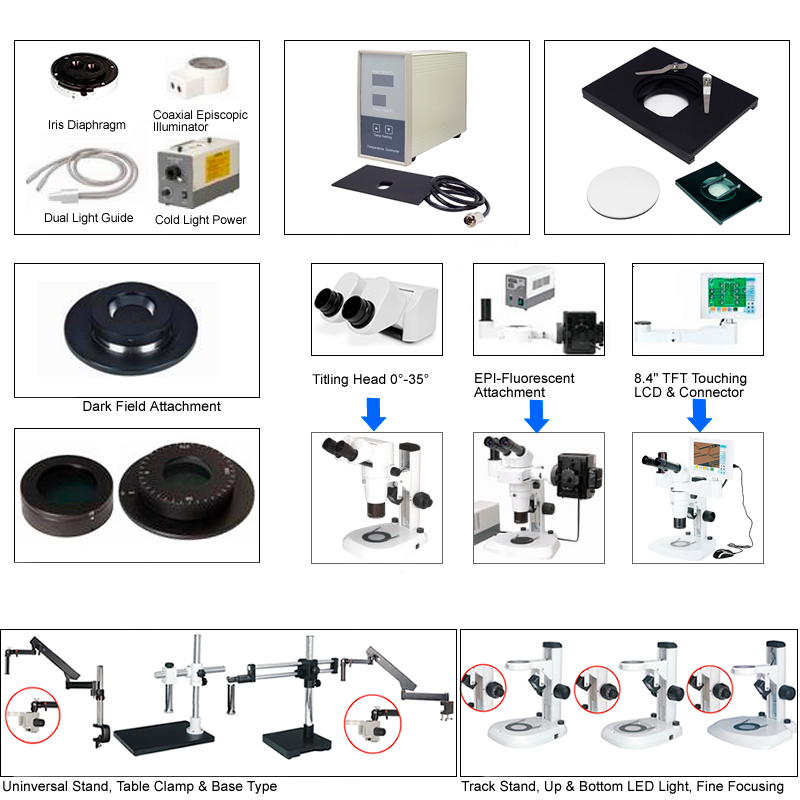

- Includes polarizing, dark field, and fluorescent attachments
- Optional plan apochromatic objective 0.5x
Technical Specifications
| Model | YR0246 | YR0247 | YR0248 | |

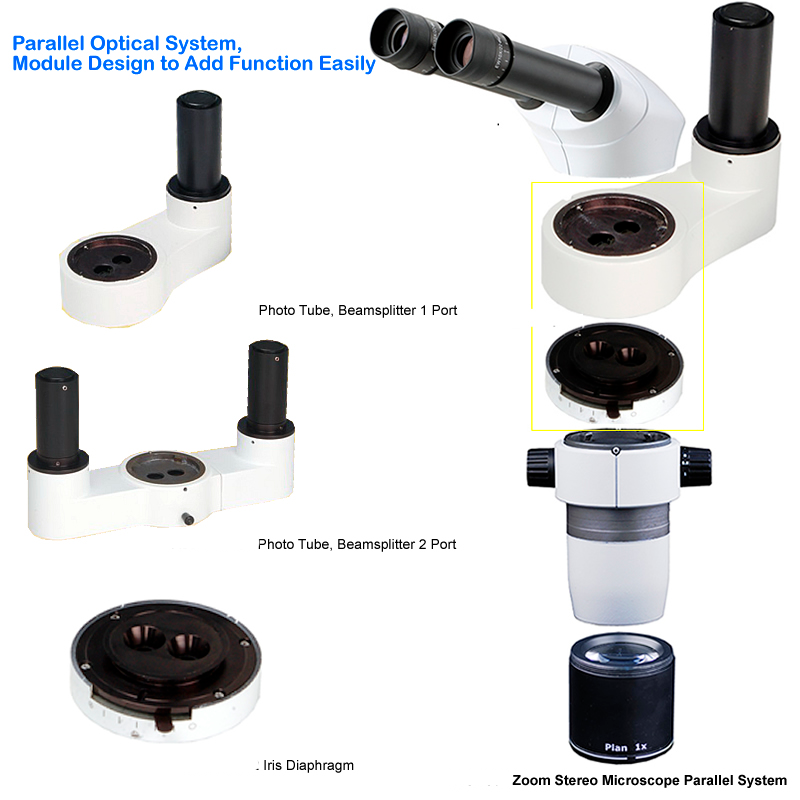

| Optical System | Parallel Optical System, Module Design to Add Function Easily | ● | ● | ● |

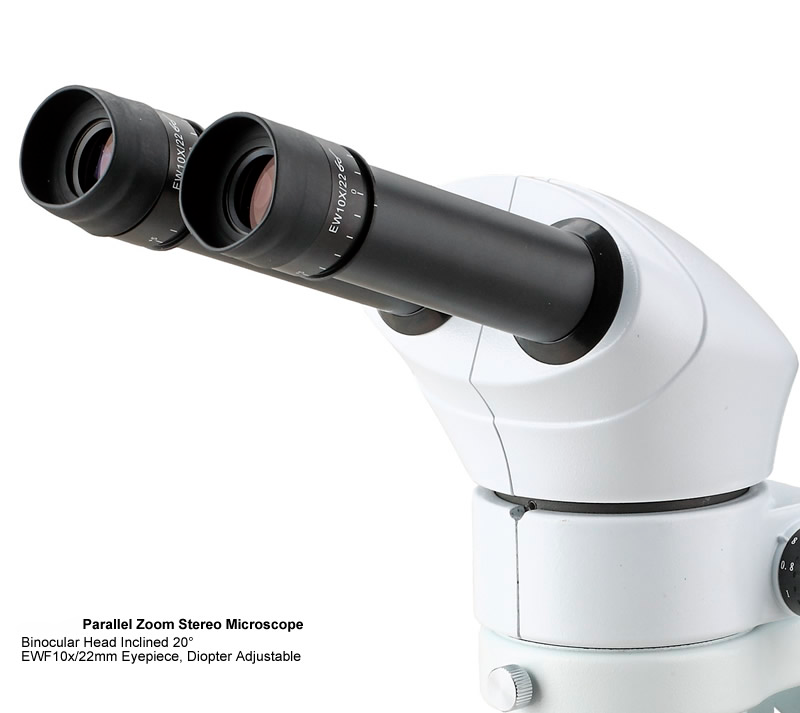

| Head | Binocular Head 20° Inclined | ● | ● | ● |
| Titling Head 0°-35° Viewing Angle Adjustable for User | o | o | o | |
| Eyepiece | Extra Wide Field Eyepiece EWF10x/22mm，Diopter Adjustable,Interpupillary 55-75mm | ● | ● | ● |
| Zoom Body | 0.8~5.0x, Zoom Ratio 1:6 | ● | - | - |
| 0.8~6.4x, Zoom Ratio 1:8 | - | ● | - | |
| 0.8~8.0x, Zoom Ratio 1:10 | - | - | ● | |

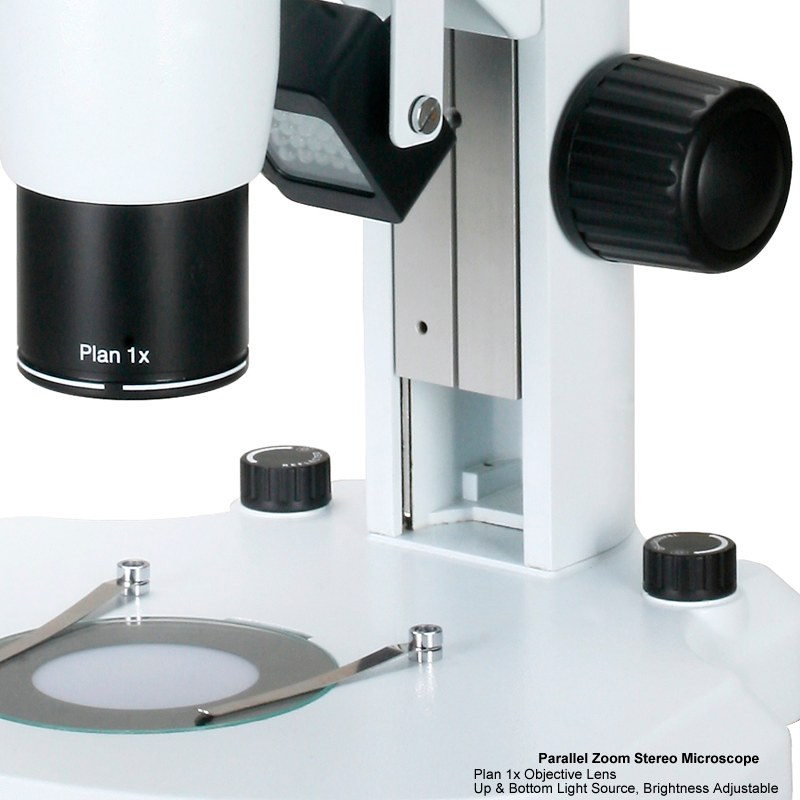

| Auxiliary Lens | Plan Achromatic Lens 1.0x | ● | ● | ● |
| Working Distance | 78mm | ● | ● | ● |
| Focusing | Coarse Focusing Konb, Range 105mm | ● | ● | |
| Coaxial Coarse & Fine Focusing Knob, Fine Division 0.015mm, Coarse Stroke 38.4mm/Rotation, Fine Stroke 1.5mm/Rotation, Moving Range 105mm , Focusing Mount Inner Dia. 76mm | ● | |||
| Illumination | Transmit & Reflect LED Illumination, Brightness Adjustable, Working Life 6000 Hours | |||
| Model | Cata. No. | |||
| Head | Titling Head 0°-35° Viewing Angle Adjustable for User | YR0248-op1 | ||
| Model Change to A23.1005 | ||||
| Eyepiece | WF15x/16mm | YR0248-op2 | ||
| WF20x/12mm | YR0248-op3 | |||
| WF30x | YR0248-op4 | |||
| Auxiliary Lens | Plan Apochromatic Lens 0.5x | YR0248-op5 | ||
| Plan Achromatic Lens 1.0x | YR0248-op6 | |||
| Plan Achromatic Lens 2.0x | YR0248-op7 | |||
| Achromatic Lens 0.3x | YR0248-op8 | |||
| Achromatic Lens 0.5x | YR0248-op9 | |||
| Illumination | Coaxial Illumination Set: | YR0248-op4 | ||
| --Cold Light Power Supplier, | ||||
| --Dual Light Guide, | ||||
| --Coaxial Episcopic Illuminator, | ||||
| --Iris Diaphragm | ||||
| Iris Diaphragm | YR0248-op5 | |||

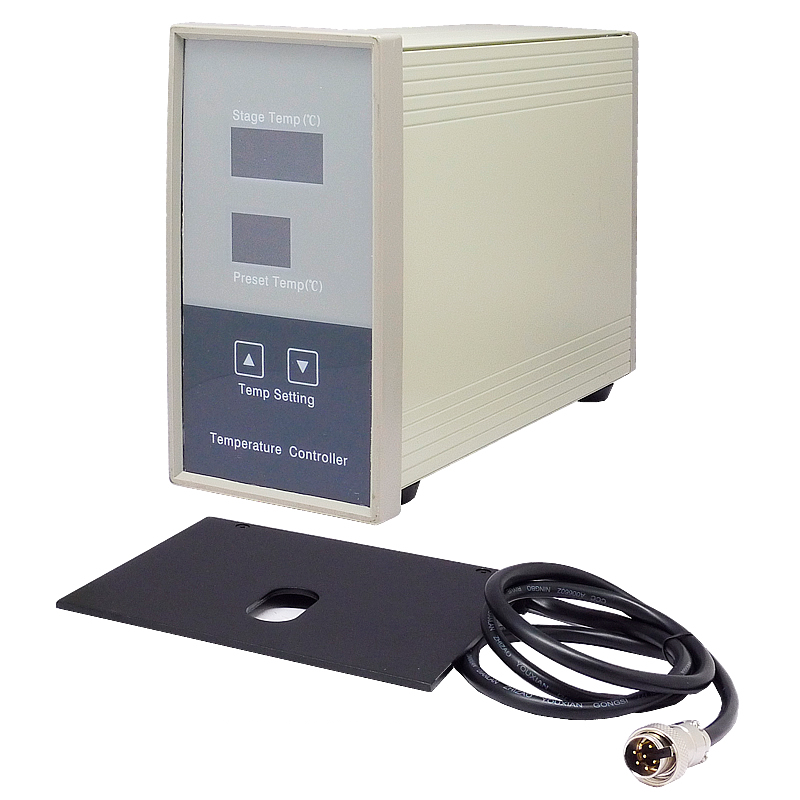

| Working Stage | Temperature Control Stage | YR0248-op6 | ||

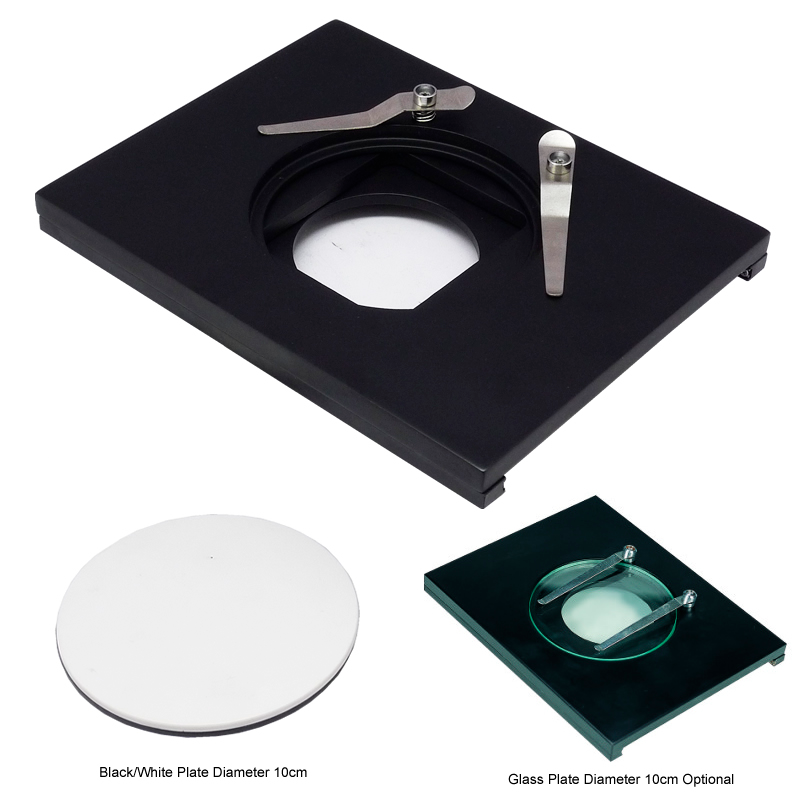

| Movable Working Stage | YR0248-op7 | |||
| StandClick to See | Universal Table Stand | YR0248-op8 | ||
| YR0248-op9 | ||||
| Track Stand, Transmit & Reflect Light Source | YR0248-op10 | |||
| With Coarse & Fine Focusing Optional, Model -F, Like A54.1019-F | YR0248-op11 | |||
| YR0248-op12 | ||||
| YR0248-op13 | ||||
| YR0248-op14 | ||||

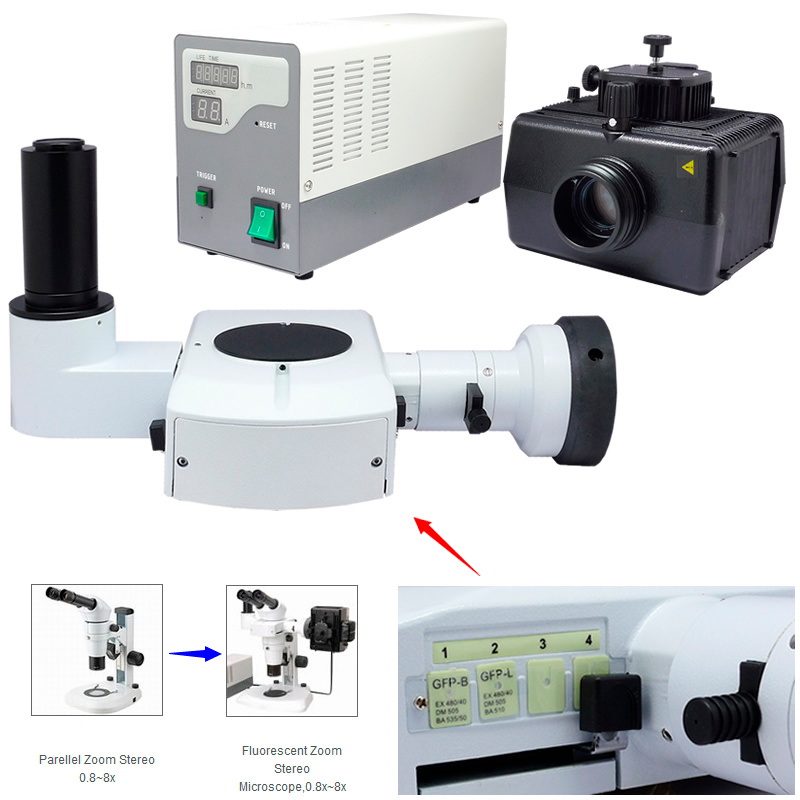

| Fluorescent | EPI-Fluorescent Attachment For Stereo Microscope | YR0248-op15 | ||
| Dark Field | Dark Field Attachment For Stereo Microscope | YR0248-op16 | ||
| Polarizing | Simple Polarizing Attachment For Stereo Microscope | YR0248-op17 | ||
| LCD Monitor | 8.4"TFT Touch Screen LCD Monitor & Connector | YR0248-op18 | ||
| Adapter | Photo Tube, Beamsplitter 1 Port | YR0248-op19 | ||
| Photo Tube, Beamsplitter 2 Port | YR0248-op20 | |||
| Photo Adapter, 2.0x, For Nikon or Canon DIgital SLR Camera | YR0248-op21 | |||
| C-mount 0.5x | YR0248-op22 | |||
| C-mount 1.0x | YR0248-op23 | |||
Technical specifications
| Weight | 9.5 kg |
|---|---|
| Manufacturer | Kalstein |
