Recirculating Chiller
Recirculating chillers are essential temperature control devices used in various industrial, laboratory, and medical applications to maintain precise cooling for equipment and processes. By circulating a coolant through a closed loop, these chillers provide effective thermal management, preventing overheating and ensuring optimal performance of sensitive instruments and machinery.
These chillers are versatile, widely used in laboratories, clinics, and veterinary settings for cooling analytical instruments, medical devices, or supporting research processes. Their ability to offer stable temperature control improves accuracy, enhances equipment longevity, and supports compliance with strict operational standards.
What You Should Know Before Selecting a Recirculating Chiller and Making an Investment
Key Factors to Consider
When selecting a recirculating chiller, consider its cooling capacity to ensure it meets the specific demands of your clinic equipment. Additionally, temperature stability is vital to maintain consistent performance during sensitive procedures, avoiding fluctuations that can affect results or device operation.
Other factors include the chiller’s compatibility with the equipment, its footprint to fit the available space, energy efficiency to minimize operational costs, as well as ease of maintenance and availability of technical support to ensure long-term reliability.
Price Range in the Market
Recirculating chillers vary in price depending on their capacity, features, and brand reputation. Entry-level models suitable for small clinics may start from moderate price points, while high-capacity, precision chillers with advanced control systems can reach premium price ranges.
Market prices are also influenced by additional services like warranty terms, post-sale support, and availability of spare parts. Customization options or integration with existing systems might increase initial investment but improve overall value.

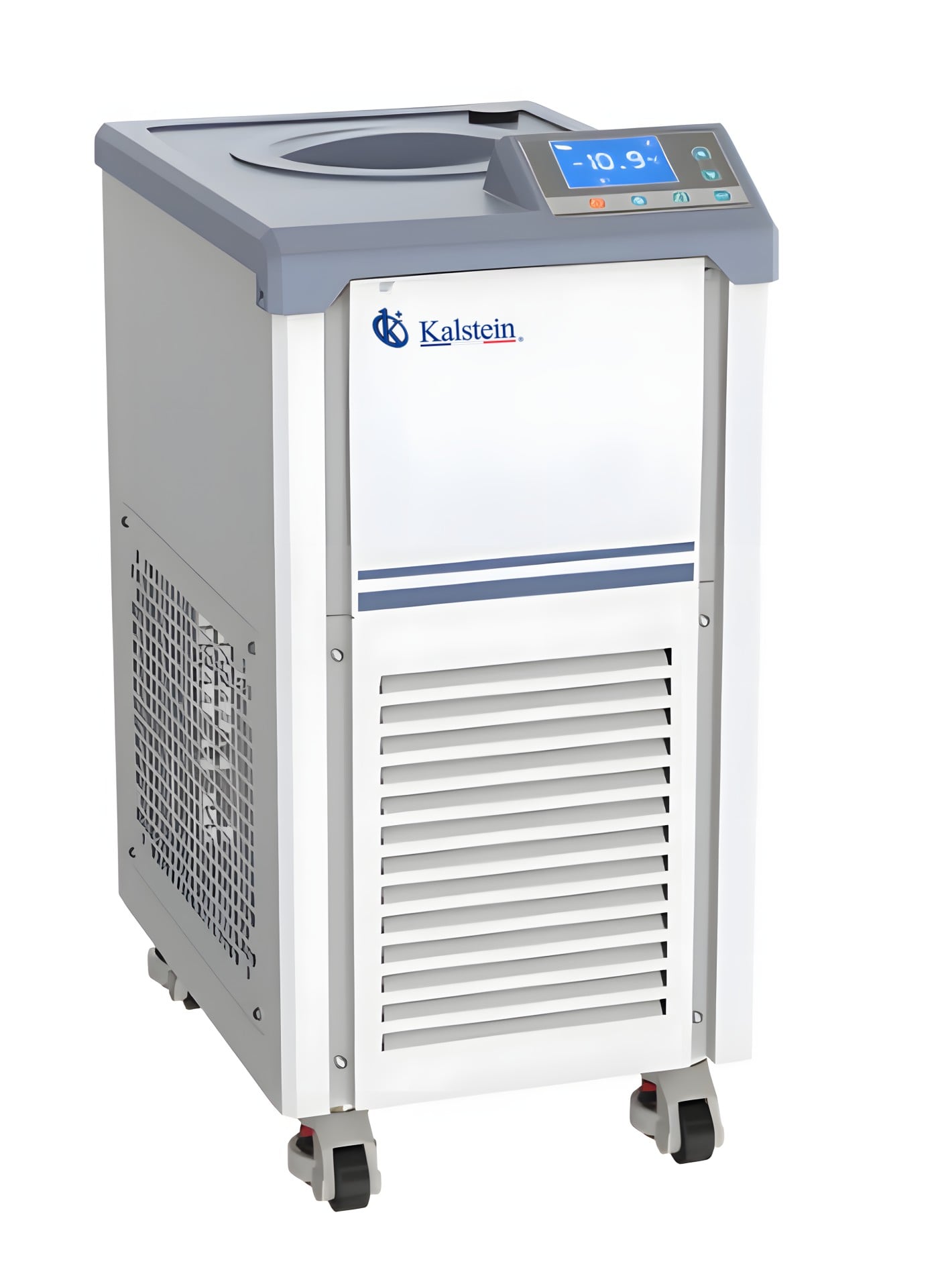

Quality-Price Ratio
The quality-price ratio of a recirculating chiller is determined not just by upfront cost but also by its efficiency, durability, and technological features. Opting for a well-engineered model can reduce energy consumption, maintenance needs, and downtime, ultimately providing better return on investment.
A reliable chiller from a reputable manufacturer like Kalstein typically offers excellent lifespan supported by proper maintenance, such as routine cleaning, fluid replacement, and periodic inspections. Investing in quality equipment ensures your clinical environment maintains optimal function without frequent replacements.
Expected Lifespan Based on Use and Maintenance
The lifespan expectancy of a recirculating chiller depends heavily on its usage intensity and maintenance routines. Regular servicing extends operational life by preventing component wear, corrosion, and efficiency loss, making it critical for clinic managers to follow manufacturer guidelines diligently.
Neglecting maintenance schedules or operating the chiller outside recommended parameters can lead to early failure or costly repairs. Therefore, education on appropriate use and timely interventions is essential to maximize durability and performance continuity.
KALSTEIN RECIRCULATING CHILLER
Among many products, at Kalstein you can find the ideal recirculating chiller for your Clinic
If you don’t know which recirculating chiller to buy, consider factors such as cooling capacity, temperature stability, energy efficiency, and maintenance requirements to ensure the best match for your clinical environment and budget. Kalstein offers a wide range of models that adapt to diverse needs and specifications.
YR06705 Recirculating Chiller
The YR06705 Recirculating Chiller is a robust and highly efficient solution for processes requiring rigorous thermal con…

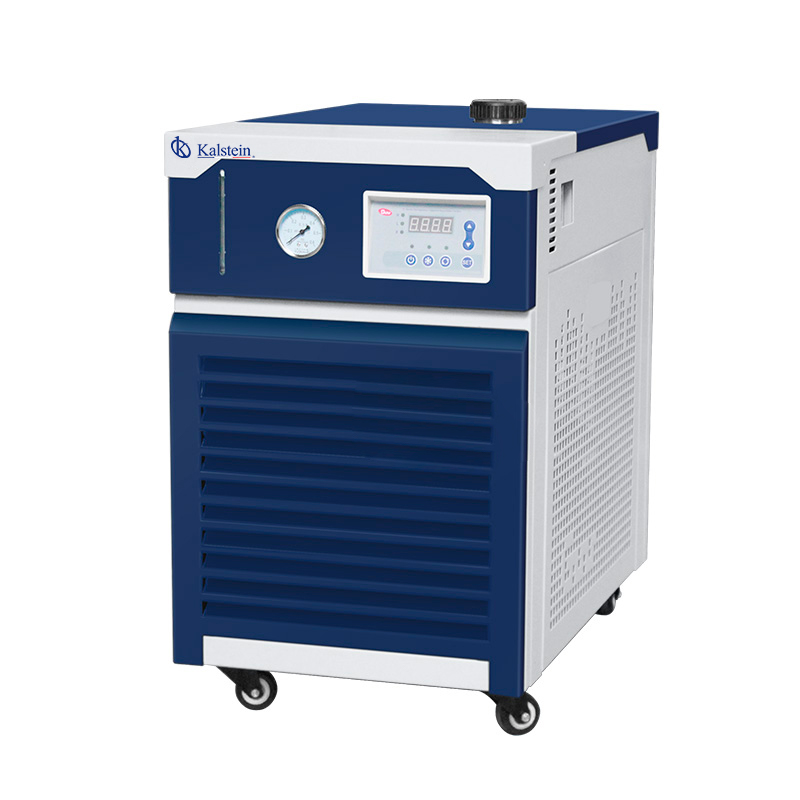

Recirculating Chiller YR02293 – YR02296
The Recirculating Chiller YR02293 – YR02296 is an essential tool designed to provide consistent low temperatures for a w…
Recirculating Chiller YR02302 // YR02305
The Recirculating Chiller YR02302 // YR02305 is a compact and efficient cooling solution essential for laboratory-scale…
Recirculating Chiller YR02301
The Recirculating Chiller YR02301 is a compact, efficient solution tailor-made for laboratory-scale rotary evaporators….
Our recirculating chiller best seller
The YR06705 Recirculating Chiller is a robust and highly efficient solution for processes requiring rigorous thermal control. Designed with a forced-air cooling system and using the environmentally friendly refrigerant R410A , this unit guarantees a cooling capacity of 1500 W. Its architecture is designed for integration into environments where stability is critical, offering an adjustable range of 5 °C to 40 °C with exceptional accuracy of ±0.2 °C .
The YR06705 stands out for its high-performance pump capable of delivering a maximum flow rate of 40 L/min and a pressure of 0.14 MPa, ensuring smooth recirculation even in circuits with some resistance. Its 5-liter tank is designed to work with water or 15% ethylene glycol mixtures, preventing freezing in low-temperature applications.
| Model | YR06705 |
| Cooling Mode | Forced air (Air Cooling) |
| Refrigerant | R410A |
| Temperature Control | PID Control |
| Temperature Adjustment Range | 5°C to 40°C |
| Temperature Stability | ±0.2°C |
| Cooling Capacity | 1500 W |
| Circulation System | Water / 15% Glycol Solution |
| Maximum Pump Pressure | 0.14 MPa |
| Maximum Pump Flow Rate | 40 L/Min |
| Tank Volume | 5 Liters |
| Inlet/Outlet Diameter | Rc 1/2 |
| Electrical and Operational Data | |
| Parameter | Worth |
| Power Supply | 220-240V~, 50Hz |
| Total Power | 1160 W |
| Total Current | 6.2 A |
| Noise Level | 68 dB |
| Security Protections | Overload, overcurrent, overheating, pressure and liquid level. |
Analyze critical features before choosing a chiller system
The Ultimate Guide to Kalstein’s Recirculating Chillers: Efficiency at Your Fingertips
When it comes to innovative laboratory equipment, Kalstein’s Recirculating Chiller stands out among its peers. Designed with precision and efficiency in m…
Unlocking the Potential of Recirculating Chillers: A Deep Dive into Kalstein’s Cutting-Edge Models
In the arena of laboratory and industrial cooling solutions, the recirculating chiller stands out as a crucial component, offering precise temperature control f…
Unveiling the Power and Versatility of Recirculating Chillers by Kalstein
When it comes to laboratory equipment designed to enhance precision and efficiency, Kalstein stands out as a top contender. Their Recirculating Chillers are ren…

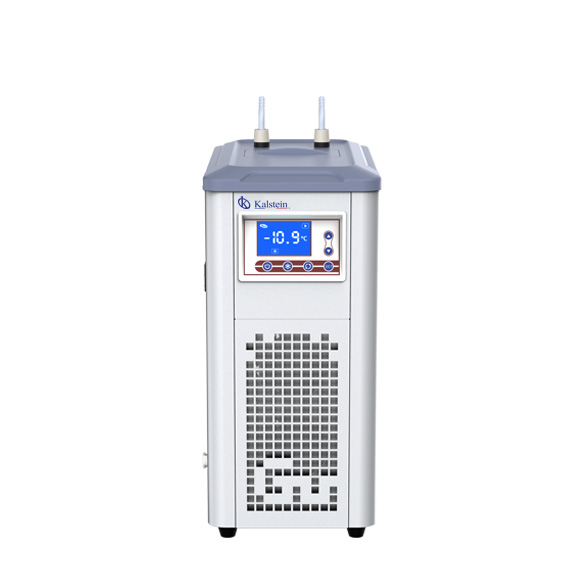

Efficient Recirculating Chillers for Temperature Control in Laboratories
