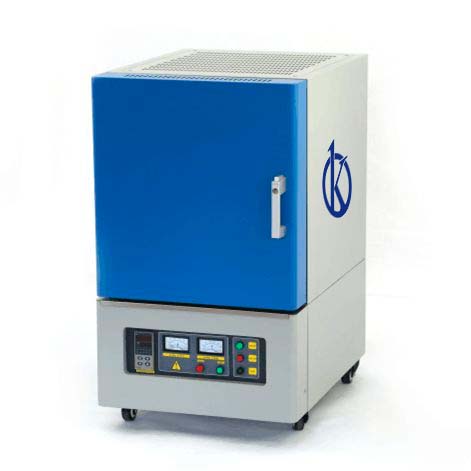

Technical Glossary and Key Terminology for the YR05273 Muffle Furnace
The YR05273 Muffle Furnace is a sophisticated piece of laboratory equipment, designed for high-temperature applications such as annealing, sintering, and material composition analysis. Understanding the technical terminology associated with this equipment is crucial for effective operation and maintenance. This article will provide a comprehensive glossary and explain important terms relevant to the YR05273, facilitating better understanding and usage.
Understanding the YR05273 Muffle Furnace
The YR05273 Muffle Furnace features a box structure that allows convenient loading and unloading of materials. With a maximum temperature of up to 1700°C and customizable configurations, it is ideal for various applications in educational institutions, research institutes, and quality testing. This section outlines the importance of specific terms related to its design and functionality.
Technical Specifications of the YR05273
| Model | Chamber Size (DxWxH) (cm) | Capacity | Max Temperature | Continuous Operating Temperature | Thermocouple Type | Voltage | Max Power | Weight |
|---|---|---|---|---|---|---|---|---|
| YR05273 | 20x15x15 | 4.5 | 1700°C | ≦1600°C | Type K | 220-380V | 1-16KW | 93kg |
Glossary of Key Terms
| Term | Definition |
|---|---|
| Muffle Furnace | A type of furnace used for high-temperature applications where the material is insulated from direct contact with the flame or heating element. |
| PID Control | A control loop feedback mechanism widely used in industrial control systems to maintain the desired output by adjusting input variables. |
| Chamber Size | The internal dimensions of the furnace where materials are placed for heating. |
| Maximum Temperature | The highest temperature the furnace can achieve during operation. |
| Continuous Operating Temperature | The temperature at which the furnace can operate continuously without damage to its components. |
| Thermocouple | A sensor used to measure temperature, consisting of two different types of metal joined at one end. |
| Cooling System | A mechanism that helps dissipate heat from the furnace’s outer surface, ensuring safe handling. |
| Heating Element | The component responsible for generating heat within the furnace, typically made from high-quality materials for durability. |
| Insulation | Materials used to prevent heat loss and protect the outer casing from high temperatures. |
| Safety Lock | A feature that automatically shuts off the furnace when the door is opened, preventing accidents. |
| Air Cooling | The process of cooling down the furnace using an air circulation fan. |
| Control Panel | The interface used to operate and set the parameters of the furnace. |
| Calibration | The process of adjusting the accuracy of the furnace’s readings to ensure precise measurements. |
| Accessories | Additional tools like thermal gloves and crucibles that enhance the use and safety of the furnace. |
| Customization | Options available to modify the standard features of the furnace according to specific user requirements. |
| Voltage Rating | The voltage at which the furnace operates effectively. |
| Power Rating | The maximum electrical power the furnace can consume during operation. |
| Weight | The overall mass of the furnace, which can impact installation and mobility. |
Frequently Asked Questions
What safety features does the YR05273 Muffle Furnace include?
The YR05273 Muffle Furnace is equipped with several safety features, including a safety lock that automatically shuts down the furnace when the door is opened and a dual-layer steel housing with an air cooling system to prevent overheating of the outer surface.
How can I customize the YR05273 Muffle Furnace?
Customization options for the YR05273 include different chamber sizes, touch screen control options, and software programs to connect to a computer. Users can specify these options at the time of ordering.
What is the maximum temperature capability of the YR05273 Muffle Furnace?
The YR05273 Muffle Furnace can reach a maximum temperature of 1700°C, making it suitable for various high-temperature applications.
What are common accessories for the YR05273 Muffle Furnace?
Common accessories include thermal gloves, crucible tongs, thermocouples, crucibles, and door blocks, which enhance safety and usability during operation.
How do I maintain the YR05273 Muffle Furnace for optimal performance?
Regular maintenance involves checking the heating elements, calibrating the thermocouple, ensuring proper insulation is intact, and keeping the exterior and ventilation systems clean to promote airflow and cooling.
What should I do if the YR05273 Muffle Furnace displays an error code?
Refer to the user manual for troubleshooting steps related to specific error codes. Common actions include checking power connections, inspecting the control panel, and ensuring the furnace is properly calibrated.
