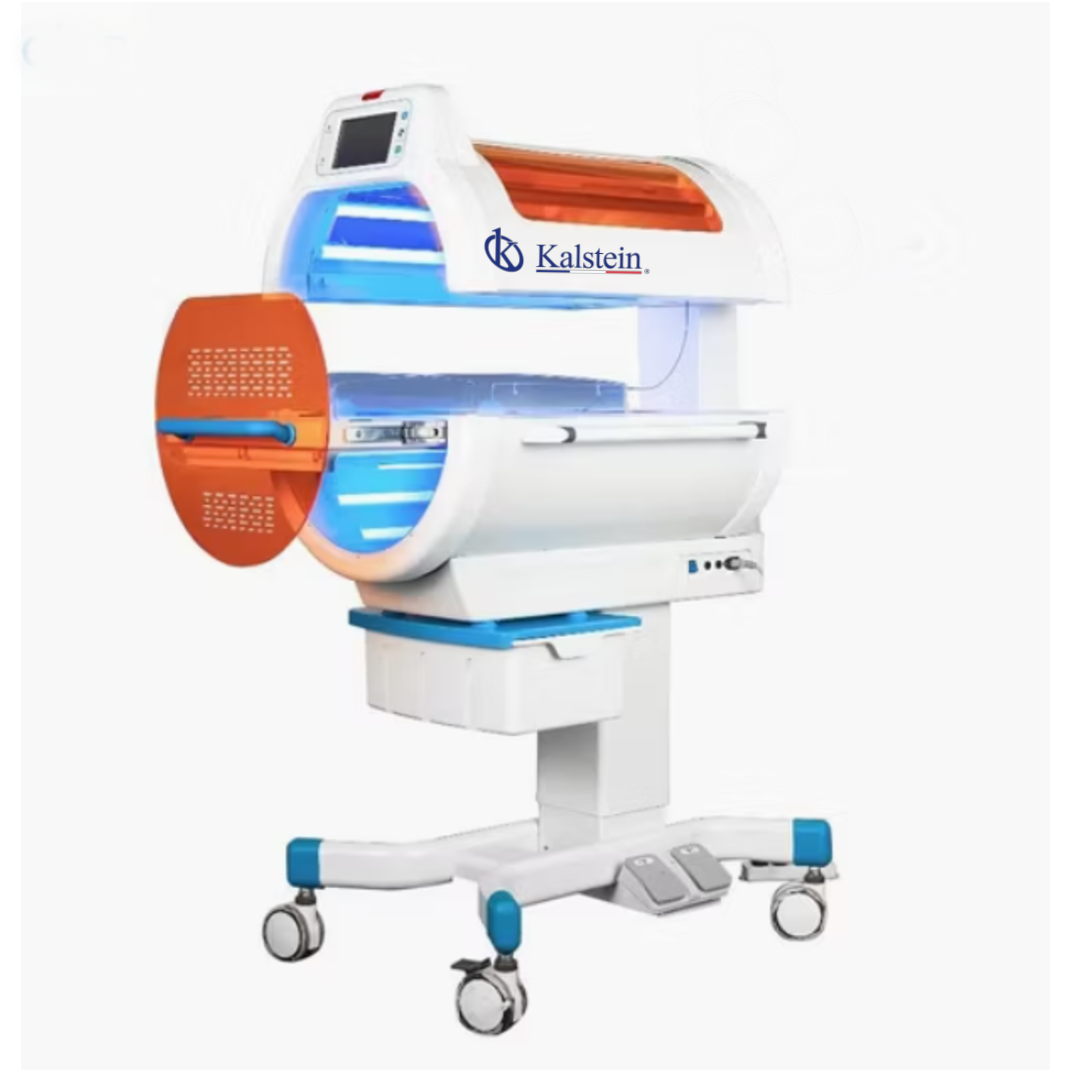

Understanding the Operating Principle and Scientific Foundation of the YR06671 Tunnel Phototherapy System
The YR06671 Tunnel Phototherapy System is an advanced medical device specially designed for the effective treatment of neonatal jaundice. This article explores the scientific principles behind the system's operation, detailing how it efficiently reduces bilirubin levels in newborns and ensures high therapeutic efficacy. The focus will also cover the technological innovations that enhance its performance, making it a vital tool in neonatal intensive care units (NICUs) and pediatric departments.
Scientific Principles of Phototherapy
Phototherapy operates on the principle of photodegradation, wherein light exposure induces a chemical change in bilirubin. Bilirubin is a yellow pigment formed from the breakdown of hemoglobin, and its accumulation in newborns can lead to jaundice. The YR06671 utilizes specific wavelengths of light to facilitate the conversion of toxic unconjugated bilirubin into water-soluble isomers that can be easily excreted by the liver and kidneys.
The absorption spectrum of bilirubin is crucial for effective phototherapy. The YR06671 emits light in the blue spectrum, specifically within the range of 400 nm to 550 nm, which is optimal for bilirubin absorption. As such, the system significantly accelerates the process of bilirubin elimination, effectively shortening the duration of jaundice symptoms in neonates.
Design and Technology Features of the YR06671
The YR06671 is engineered for maximum efficacy and patient safety, featuring a 360° irradiation design that ensures uniform coverage across the infant's body. This design choice minimizes untreated areas, enhancing overall treatment effectiveness. The system incorporates an adjustable LED light source that allows clinicians to select from three levels of irradiance—33%, 66%, and 100%—depending on the severity of the jaundice.
Another notable feature of the YR06671 is its automatic temperature adjustment system, which maintains an optimal thermal environment for the patient throughout the treatment process. The apparatus is also equipped with a visual and operational safety alarm, alerting operators to critical changes in treatment status. This is particularly important in a busy NICU setting where quick responses are vital.
Technical Specifications of the YR06671
| Specification | Features |
|---|---|
| Model | YR06671 |
| Light Source | LED (Light Emitting Diode) |
| Effective Wavelength | 400 nm - 550 nm |
| Adjustable Irradiance | (33%, 66%, 100%) |
| Maximum Irradiance (Upper) | 3600 μw/cm² |
| Maximum Irradiance (Lower) | 3200 μw/cm² |
| Effective Irradiation Area | 400mm x 250mm |
| Irradiation Uniformity | > 0.4 |
| Lifting Range | 0 - 200mm |
| Power Supply | AC 100V - 240V |
| Power Consumption | ≤ 250VA |
| Safety Alarms | Temperature, End of treatment, Bed extraction |
| Packing Dimensions | 98 x 65 x 115 cm (Approx. according to industrial standard) |
| Equipment Weight | Approx. 65 kg (Net) / 85 kg (Gross with packaging) |
Advantages and Disadvantages of the YR06671
Advantages
- Comprehensive Treatment: The 360° irradiation ensures uniform exposure, accelerating bilirubin decomposition.
- Intensity Control: Adjustable irradiance levels cater to varying severity of jaundice.
- Simple Maintenance: The baby enclosure is designed for easy cleaning and disinfection.
- Smart Alerts: Includes end-of-treatment reminders via voice and text notifications.
Disadvantages
- Power Consumption: Requires power input of ≤250VA, which must be considered during electrical planning.
- Size Limitation: The effective irradiation area of 400mm x 250mm is suitable for standard neonates only.
Usage Recommendations for the YR06671
The YR06671 is ideally suited for use in specialized clinics, mother-infant hospitals, and high-complexity health centers. Operation is recommended by trained personnel who can monitor skin temperature ranges (33°C to 38.5°C) and box temperatures (16°C to 42°C) as established by the device. For optimal operation, ensure that the temperature sensor is correctly placed and that the enclosure is properly sealed for precise functioning of the automatic temperature adjustment system.
Frequently Asked Questions
What is the expected lifespan of the YR06671 light system?
The light system of the YR06671 has an operational lifespan of up to 49,999 hours, ensuring long-term durability and reliability in medical settings.
What happens if the bed is extracted during treatment?
The YR06671 is equipped with an automatic detection system that pauses treatment when the bed is extracted, ensuring patient safety throughout the procedure.
Is the YR06671 compatible with different voltage levels?
Yes, the YR06671 operates on a wide range of power supply from AC 100V to 240V, making it versatile for different electrical standards worldwide.
What types of facilities should use the YR06671?
The YR06671 is recommended for use in specialized neonatal clinics, maternal-infant hospitals, and advanced health care centers where effective management of neonatal jaundice is critical.
How does the smart alert system work in the YR06671?
The smart alert system in the YR06671 provides audible and visual notifications for end-of-treatment and safety alerts, ensuring that medical personnel can respond instantaneously to changes in treatment status.
