Description

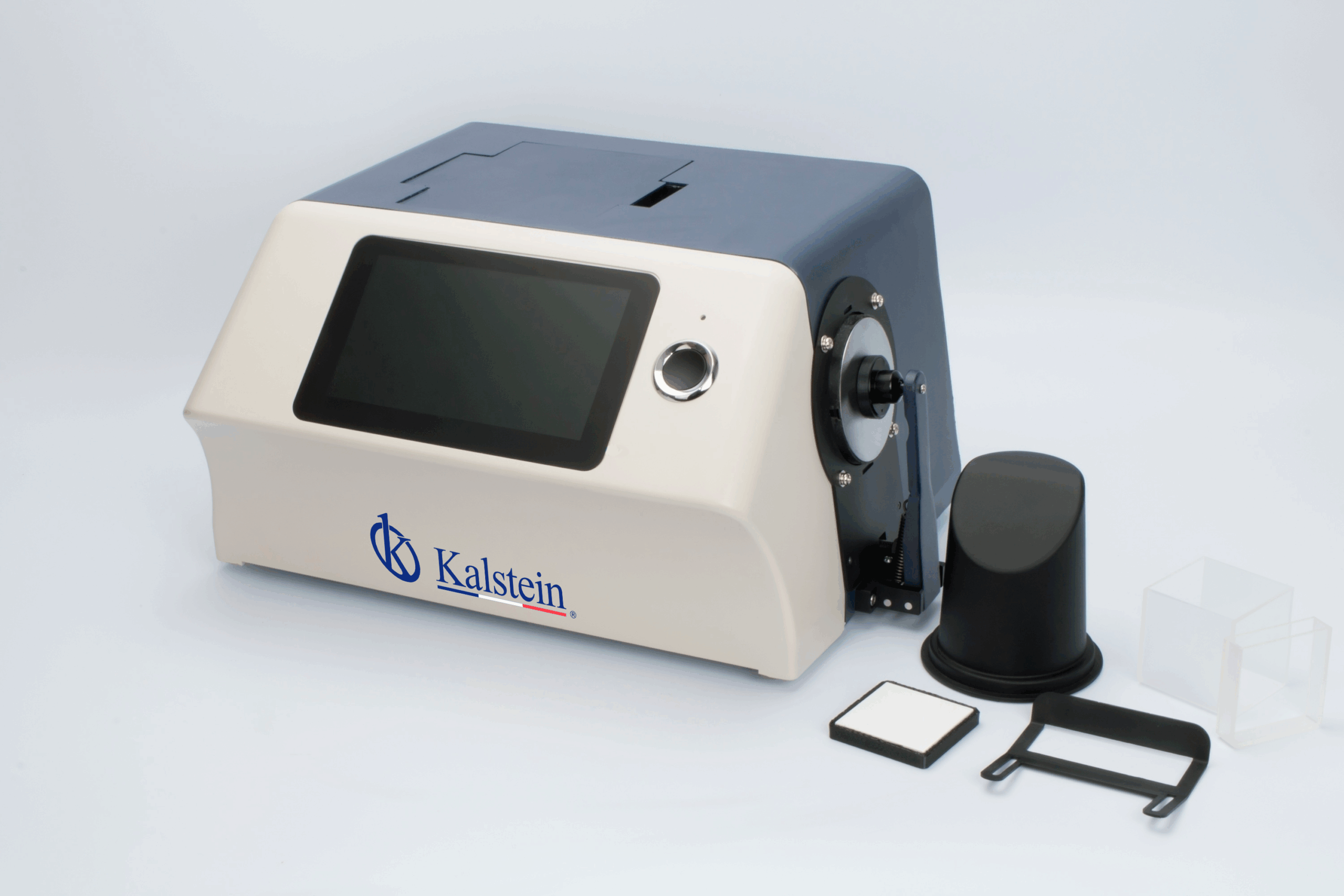

The Benchtop Spectrophotometer YR05478 is a versatile and precise tool designed for accurate color analysis and quality control across a wide range of industries, including plastics, electronics, paint, textiles, and printing. Featuring a 7-inch TFT color capacitive touchscreen display and an advanced double array 256 image element CMOS sensor, this spectrophotometer ensures precise color measurements with a wavelength range of 360 nm to 780 nm. Its built-in temperature sensor and concave grating provide consistent results by compensating for environmental factors. With multiple aperture sizes and measurement modes, it caters to various user requirements, making it an essential instrument for laboratories and production facilities. Whether testing reflective or transmissive samples, this device delivers accurate Lab values and color formulas, enhancing the efficiency of color transfer processes.
Market Price
The Benchtop Spectrophotometer YR05478 typically falls within the price range of $9,500 to $10,600, reflecting the high-quality engineering and extensive capabilities it offers. If you’re interested in acquiring this advanced spectrophotometer, consider requesting a personalized quote through the Kalstein Plus platform to discover the best price and options tailored to your needs.
Frequently Asked Questions
- What industries can benefit from using the YR05478 spectrophotometer? Industries such as plastics, paint, textiles, and printing can significantly enhance their color quality control and color transfer processes using this spectrophotometer.
- What languages are supported by the user interface? The YR05478 spectrophotometer supports Simplified Chinese, Traditional Chinese, and English.
- How does the built-in temperature sensor enhance measurement accuracy? The temperature sensor monitors and compensates for the measuring environment’s temperature, ensuring more accurate data.
Advantages and Disadvantages
The YR05478 offers numerous advantages, such as precise color measurement, versatile application in various industries, and user-friendly operation with a capacitive touchscreen. It also features extensive data storage for 20,000 test results and multiple measurement modes. However, the complexity of its advanced features may require adequate training for first-time users to fully utilize its capabilities. Additionally, while robust, it represents a significant investment, which some smaller operations might find sizeable.
Product Use in the Field
In practical scenarios, the YR05478 spectrophotometer is employed for both reflective and transmissive sample testing. Its portability and ease of use make it suitable for fieldwork as well as laboratory settings. Quality control managers rely on its accurate Lab values to ensure consistent product color standards during manufacturing, minimizing deviations in color batches.
Recommendations
For optimal performance, it’s recommended to routinely calibrate the spectrophotometer using the standard calibration board provided. Familiarize yourself with its extended PC software functions, which can enhance data management. Regular maintenance and following environmental storage guidelines will prolong the device’s lifespan. If possible, use the Kalstein Plus platform to generate automatic quotes and ensure timely access to spare parts and accessories.
Features
- 7-inch TFT color capacitive touchscreen display
- Double array 256 image element CMOS sensor
- Wavelength range: 360 nm – 780 nm
- Reflective and transmissive spectrum measurements
- Built-in camera locating and temperature sensor
- Multiple measurement modes: Quality Management Mode, Sample Mode
- Auto aperture identification and multiple apertures
- Extensive data storage capacity
Technical Specifications
| Model | YR05478 |
| Optical Geometry | Reflect: di:8°, de:8°(diffused illumination, 8-degree viewing angle) ;
SCI (specular component included)/SCE (specular component excluded) ; Include UV / excluded UV light source Transmittance: di:0°, de:0° (diffuse illumination: 0° viewing) SCI (specular component included)/SCE (specular component excluded) Haze(ASTM D1003), Conforms to CIE No.15，GB/T 3978,GB 2893,GB/T 18833, ISO7724/1, ASTM E1164, DIN5033 Teil7 |
| Application | It is used for accurate analysis and transmission of laboratory color. Apply in paints, inks, textiles, garments, printing and dyeing, printing etc industries for color transfer and quality control. |
| Integrating Sphere Size | Φ154mm |
| Light Source | 360 nm to 780 nm, Combined LED Light (5 million life span) |
| Spectrophotometric Mode | Concave Grating |
| Sensor | 256 Image Element Double Array CMOS Image Sensor |
| Wavelength Range | 360-780nm |
| Wavelength Interval | 10nm |
| Semiband Width | 10nm |
| Measured Reflectance Range | 0-200% |
| Measuring Aperture | Reflective : Φ30mm/Φ25.4mm, Φ10mm/Φ8mm, Φ6mm/Φ4mm; |
| Transmissive : Φ30mm/Φ25mm; | |
| Remark: 1. Automatic identification of switch caliber 2. Customized Configuration caliber and lens position | |
| Specular Component | Reflectance: SCI&SCE / Transmittance: SCI&SCE |
| Color Space | CIE LAB,XYZ,Yxy,LCh,CIE LUV,Musell,s-RGB,HunterLab,βxy,DIN Lab99 |
| Color Difference Formula | ΔE*ab,ΔE*uv,ΔE*94,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*00, DINΔE99,ΔE(Hunter) |
| Other Colorimetric Index | WI (ASTM E313, CIE/ISO, AATCC, Hunter), |
| YI (ASTM D1925, ASTM 313), | |
| MI (Metamerism Index), | |
| Staining Fastness, Color Fastness, Color Strength, Opacity, | |
| 8° Glossiness,Gardner Index, Pt-Co Index, 555 Index, Haze(ASTM D1003) | |
| Observer Angle | 2°/10° |
| Illuminant | D65,A,C,D50,D55,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12 |
| Displayed Data | Spectrogram/Values, Samples Chromaticity Values, Color Difference Values/Graph, PASS/FAIL Result, Color Offset |
| Measuring Time | About 2.4s (Measure SCI & SCE about 5s) |
| Repeatability | Spectral reflectance: Φ25.4mm/SCI, Standard deviation within 0.06% (400 nm to 700 nm: within 0.05%) |
| Chromaticity value:Φ25.4mm/SCI, Standard deviation within ΔE*ab 0.01 ( When a white calibration plate is measured 30 times at 5 second intervals after white calibration) Spectral Transmittance: Φ25.4mm/SCI, Standard deviation within 0.06% (400 nm to 700 nm: within 0.06%) | |
| Chromaticity value:Φ25.4mm/SCI, Standard deviation within ΔE*ab 0.015 ( When a white calibration plate is measured 30 times at 5 second intervals after white calibration) | |
| Inter-instrument Error | Φ25.4mm/SCI, Within ΔE*ab 0.15 (Average for 12 BCRA Series II color tiles) |
| Dimension | L*W*H=370x300x200mm |
| Weight | Approx. 9.6kg |
| Power | AC 24V, 3A Power adapter power supply |
| Illuminant Life Span | 5 years, more than 3 million times measurements |
| Display | 7-inch TFT color LCD, Capacitive Touch Screen |
| Data Port | USB & Print serial port |
| Data Storage | Standard 1000 Pcs, Sample 20000 Pcs |
| Language | Simplified Chinese, Traditional Chinese, English, |
| Operating Environment | 0~40℃, 0~85%RH (no condensing), Altitude < 2000m |
| Storage Environment | -20~50℃, 0~85%RH (no condensing) |
| Standard Accessory | Power Adapter, User Guide, CD Disk(PC Software), USB cable, Standard Calibration Board, Black Calibration Cavity, Transmission black baffle, Sample holder, 25.4 caliber, 8 caliber, 4 caliber |
| Optional Accessory | Micro-printer, Transmissive Test Component, Micro Aperture(4mm) transmission test clamp component, Instrument inversion components |
| Notes: The specifications are subject to change without notice. YS6003 quality management software can only be used for data management | |
