Description

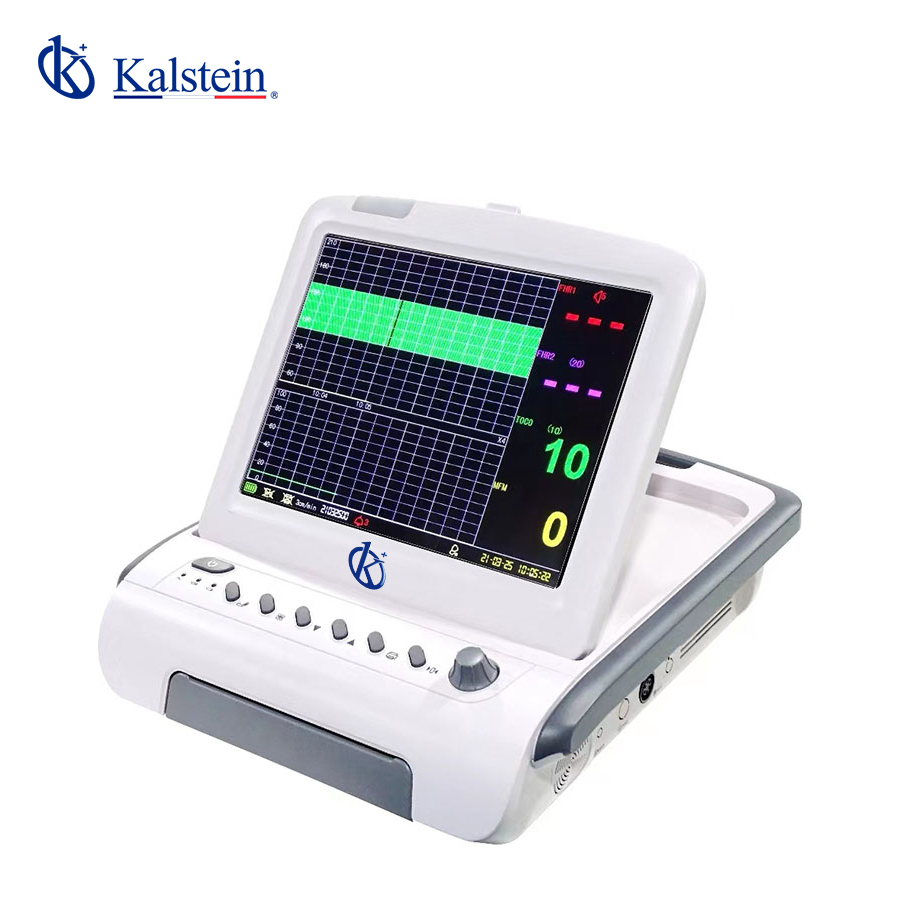

The Fetal Monitor YR02190A is an advanced device designed to provide comprehensive monitoring of fetal and maternal health parameters. Featuring a 12.1-inch color TFT screen that folds up to 90 degrees for convenience, this monitor stands out with its high resolution of 800×600. It supports up to 6 waveforms, offering a detailed display of various health indicators. It comes standard with configurations such as SpO2, MHR, NIBP, TEMP, ECG, RESP, TOCO, FHR, FM, and Recorder. With optional features like a fetal stimulator, FHR2, and a trolley, it caters to diverse healthcare needs. If you’re looking for precision and reliability in fetal monitoring, request a quote today via Kalstein Plus.
Market Price
For advanced medical equipment like the Fetal Monitor YR02190A, prices can vary widely in the market. Generally, the price range for such equipment can fall between $2,000 and $3,000 USD. These figures can vary based on the provider and additional configurations. To get the best deal, we recommend leveraging the Kalstein Plus platform for an accurate and competitive quote tailored to your specific needs.
Frequently Asked Questions
What does FHR monitoring include? The FHR (Fetal Heart Rate) monitoring includes strength measurement, working frequency, signal processing, and provides alarms for predefined ranges.
Can the monitor be integrated into a trolley? Yes, the monitor’s optional configuration offers a trolley integration for increased mobility and ease of use.
Does the device require specific environmental conditions? Yes, it operates best at temperatures between +5°C and +40°C with an atmospheric pressure range of 86kPa to 106kPa.
Advantages and Disadvantages
The Fetal Monitor YR02190A offers a multitude of benefits such as high precision in readings, customizable alarm settings, and the flexibility of optional features. However, its complexity might require specialized training for effective operation, and its mobility can depend on optional trolley availability.
Product Use in the Field
In practical scenarios, the Fetal Monitor YR02190A is used in maternity wards and clinics to monitor the health of both the mother and fetus during pregnancy. Its comprehensive configuration allows healthcare professionals to track multiple parameters simultaneously, ensuring a high standard of prenatal care.
Recommendations
To maximize the effectiveness of the Fetal Monitor YR02190A, ensure it is used by trained healthcare professionals familiar with its functions and controls. Regular maintenance and calibration can help maintain its accuracy and prolong its lifespan. Utilize the Kalstein Plus platform for automatic quote generation and updates on product maintenance.
Features
- 12.1 inches color TFT screen with 90-degree folding.
- High Resolution: 800 x 600 pixels.
- Supports up to 6 waveforms (max) simultaneously.
- Comprehensive standard configuration including vital parameters like SpO2, MHR, and more.
- Optional configurations for enhanced functionality.
Technical Specifications
| Model | YR02190A |
| FHR | |
| Strength | < 5mW/cm2 |
| Working Frequency | 1.0MHz |
| Signal Processing | Special DSP system and modern recognition |
| Measurement Range | 50～240bpm |
| Alarm Range | High Limit: 160, 170, 180, 190 bpm Low Limit: 90, 100, 110, 120 bpm |
| Maximum Audio Output Power | 1.5 Watt |
| TOCO | |
| Measurement Range | 0-100 units |
| SpO2 | |
| Measurement Range | 70%～99% |
| Measure Accuracy | ±3% error |
| HR | |
| Measurement Range | 30bpm～240bpm |
| Measure Accuracy | ±2 bpm |
| NIBP | |
| Measurement Range | SYS 6.7～32.0kPa(50～240mmHg) MEAN: 3.4～26.6kPa(25～200mmHg) DIA: 2.0～24.0ka(15～180mmHg) |
| NIBP Accuracy | ±1.1kPa（±8mmHg）or ±5% of results, taking the bigger one |
| HR Measurement Range | 40bpm～240bpm |
| HR Measure Accuracy | ±2 bpm or ±5% of the results, taking the bigger one. |
| Measure Mode | Manual to start/stop NIBP measurement |
| Temperature | |
| Arrange | 0~50 ℃ |
| Resolution | 0.1 ℃ |
| Accuracy | 0.1 ℃( excluded the error caused by transducer) |
| Environment | |
| Working Environment | Temperature: +5℃ ～ +40℃ |
| Atmospheric Pressure | 86kPa ～ 106kPa |
| Transport and Storage Temperature | Humidity: < 93％ Atmospheric Pressure: 86kPa ～ 106kPa |
