Description

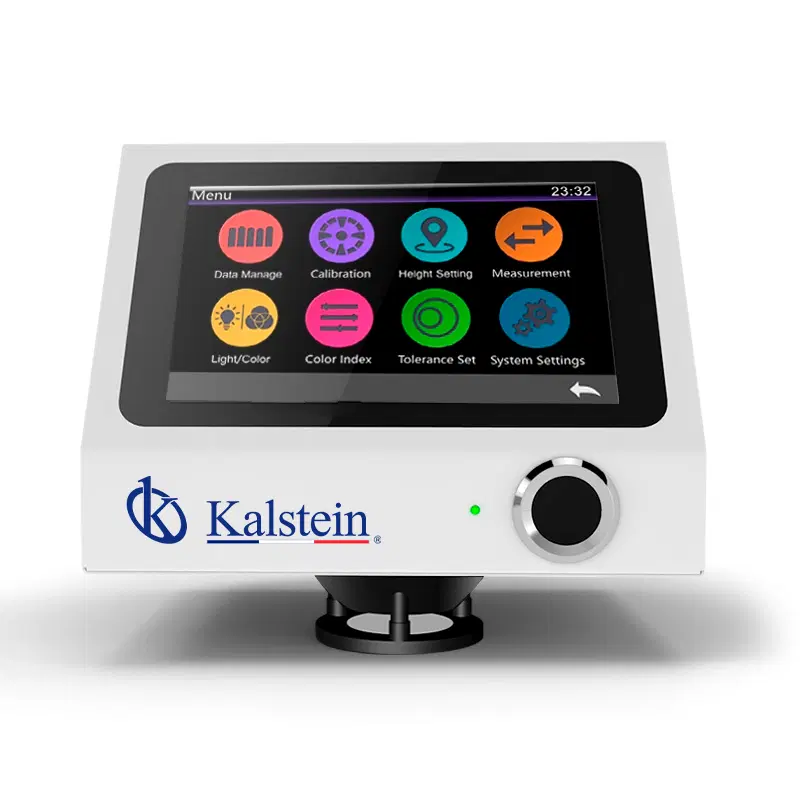

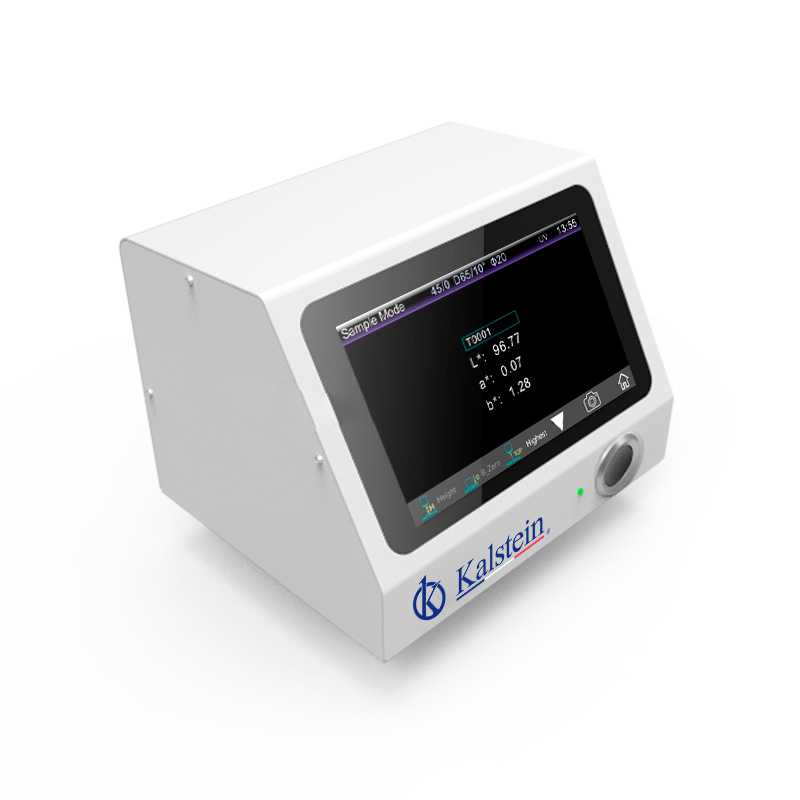

The Non-contact Benchtop Spectrophotometer YR05480 is an advanced color measuring device designed for precision and versatility. This instrument uses a D/8 standard color measurement (diffuse illumination, reception at 8°, SCI including specular reflection light), enabling non-contact testing of various samples including liquids, sauces, and powders. With its 256-pixel dual-matrix CMOS image sensor and full-spectrum LED light source, it ensures superior color measurement accuracy, consistency, and efficiency. Perfectly crafted for quality control in automated production lines, the YR05480 offers customizable software functions to meet specific industry needs.
Market Price
The Non-contact Benchtop Spectrophotometer YR05480 is positioned in the market with a price range typically between 11,500 USD and 12,000 USD. Offering exceptional value for its advanced capabilities, this spectrophotometer represents a sound investment for businesses focused on maintaining stringent quality control across various materials and products. For precise pricing tailored to your needs, please don’t hesitate to request a quote or create one automatically through our Kalstein Plus platform.
Frequently Asked Questions
What makes the YR05480 spectrophotometer non-contact? The non-contact feature means there is no physical contact between the test probe and the sample, which is ideal for measuring liquids, sauces, and powders without contamination or disturbance.
Can the measurement time be adjusted? Yes, the YR05480 allows the measurement time to be adjusted between 0.2 to 1.5 seconds according to the user’s requirements. This flexibility enhances its application scope in different production environments.
Advantages and Disadvantages
Advantages: The YR05480 offers rapid measurement cycles in just 200 milliseconds, delivering results with unmatched speed. Its compatibility with multiple color spaces and light sources adds value across diverse industries. Disadvantages: The initial investment may be significant for smaller enterprises, and any deep customization in functions may incur additional costs.
Field Use
The YR05480 spectrophotometer is extensively used in sectors where precise color measurement is crucial, such as pharmaceuticals, food and beverage, and plastics manufacturing. Its non-contact nature ensures that the integrity of the test sample is preserved, which is of paramount importance when dealing with sensitive substances or where hygiene is critical.
Recommendations
To optimize the use of the YR05480 spectrophotometer, users should ensure regular calibration with the provided standard calibration plate. Additionally, storing the device in the recommended environmental conditions will prolong its operational life and reliability.
Features
- 256-pixel dual-matrix CMOS sensor
- Full-spectrum LED light source
- Concave grating spectroscopy technology
- Bluetooth 5.0 stable transmission
- Multiple color spaces and observation light sources
- Efficient with over 400,000 samples measured per day
Technical Specifications
| Model | YR05480 |
| Optical geometry | D/8 (diffuse illumination, reception at 8°, SCI includes specular reflection light); |
| Complies with CIE standard No.15, GB/T 3978, GB 2893, GB/T 18833, ISO7724-1, ASTM E1164, DIN5033 Teil7, GB 2893, GB/T 18833 | |
| Features | Non-contact test between the test probe and the tested sample, to achieve accurate non-contact color measurement of liquids, sauces, powders, etc. Mainly used for accurate color measurement and quality control of automated production lines; the measurement time can be adjusted from 0.2 to 1.5 seconds, and the software functions can be customized (additional customization function needs to be evaluated). |
| Light source | Full-spectrum LED light source, UV light source |
| Spectrophotometric mode | concave grid |
| Sensor | 256-pixel dual-matrix CMOS image sensor |
| Wave range | 400~700nm, 10nm output |
| Measured reflectance range | 0-200% |
| Measuring aperture | Φ20mm (Φ10mm can be customized) |
| Non-contact distance | 3.0 mm (±0.2 mm) |
| Sample height | Unlimited thickness, only test probes are used |
| Distance adjustment method | Fixed height according to actual sample |
| Measuring mode | Software customization function (additional customization function to be evaluated) |
| Locating | camera location |
| Color space | Laboratory CIE,XYZ,Yxy,LCh,LUV CIE,Musell,s-RGB,HunterLab,βxy,DIN Lab99 |
| Color difference formula | ΔE*ab,ΔE*94,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*00,ΔE(Hunter),DINΔE99. |
| Other colorimetric index | WI (ASTM E313, CIE/ISO, AATCC, Hunter), |
| YI(ASTM D1925，ASTM 313), | |
| Index of metamerism MI, | |
| Stain resistance, color fastness, strength, opacity, opacity | |
| Observer angle | 2°/10° |
| Illuminant | D65,A,C,D50,D55,D75,F1,F2(CWF),F3,F4,F5,F6,F7(DLF),F8,F9,F10(TPL5),F11(TL84),F12(TL83/ U30) |
| Data shown | Spectrogram/values, sample chromaticity values, color difference/graphic values, color simulation, pass/fail result, display tolerance can be configured |
| Measuring time | As fast as 0.2 seconds |
| Data storage | Sample mode + Quality control mode 18,000 |
| Continuous statistical mode 30,000, for a total of not more than 48,000 | |
| Repeatability | In the optimal measurement mode (when the time of a single measurement is 1.5 seconds): |
| Spectral reflectance: within 0.1% of standard deviation: | |
| Chromaticity value: ΔE*ab within 0.03 (after warming up and calibrating the instrument, measure the average value of the slate 30 times within 5 s). | |
| Error between instruments | Within ΔE*ab 0.2 (Average value measured from 12 mosaics of BCRA series Ⅱ). |
| Method of measurement | Single measurement, average measurement (2~99 times) |
| Dimension | 200*200*160mm (test probe) |
| Weight | Approx. 3 kg (test probe only) |
| Energy | AC 24V, power adapter power supply 3A |
| Illuminating life | 5 years, more than 3 million times measurements |
| Monitor | 7-inch TFT color LCD, capacitive touch screen |
| Data port | USB, Bluetooth®5.0 |
| Language | Simplified Chinese, Traditional Chinese, English |
| Operating environment | 0~40 ℃, 0~85 % RH (non-condensing), altitude: less than 2000 m |
| Storage environment | -20~50℃, 0~85%RH (no condensation) |
| Standard accessory | Power adaptor, manual, data cable, standard calibration plate, black calibration box |
| Notes | This model is especially suitable for optimized production lines, deep customization of functions will incur additional customization costs. |
