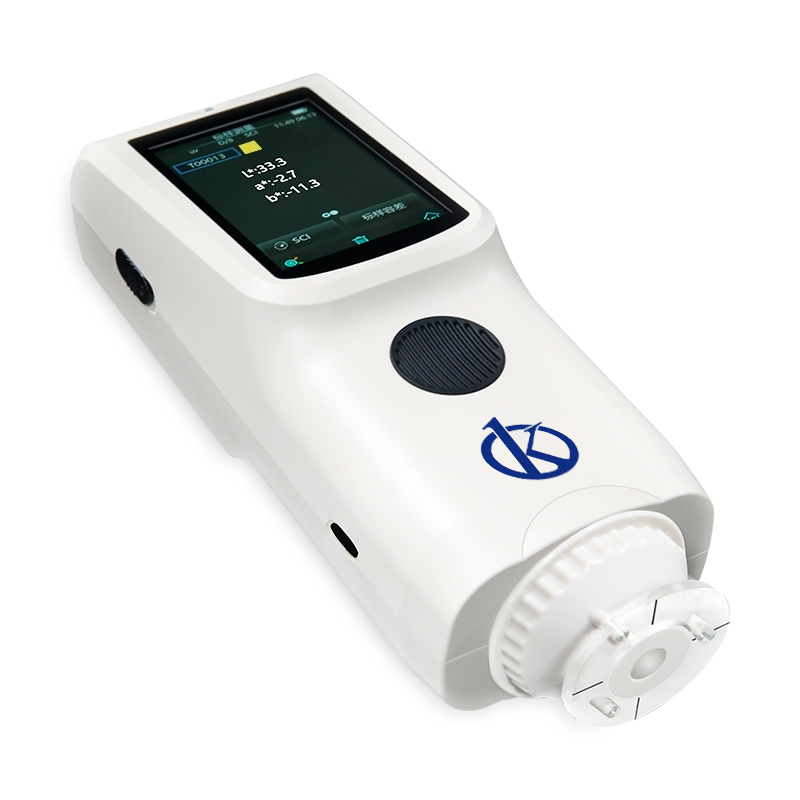

Spectrocolorimeter YR05518 – YR05519

ManufacturerKalstein

Description

The Spectrocolorimeter YR05518 – YR05519 is a top-tier portable light color difference instrument developed by Kalstein. This advanced device boasts high spectral architecture, ensuring precise relative ΔE accuracy alongside outstanding absolute L, A, and B values for extended periods. Equipped with a silicon photodiode array (double row 24) sensor and full-spectrum LED light source, it facilitates quick and independent color difference analysis without needing a computer. With an 8 mm diameter aperture, it caters to various industries like plastics, electronics, paint and ink, textile printing, ceramics, among others, supporting effective production quality control.

Market Price

The Spectrocolorimeter YR05518 – YR05519 typically falls within a competitive price range in the market. Generally, similar devices are available from around $1400 to $2250, reflecting the cutting-edge technology and capabilities this model offers. Please contact us for an exact quote or use our Kalstein Plus platform to generate a precise quotation quickly.

Frequently Asked Questions

Q: Is the YR05518 – YR05519 suitable for outdoor use?
A: Yes, the device is designed for versatile use, meeting various environmental standards, and is perfectly suited for both indoor and outdoor applications.

Q: How long does the battery last on a single charge?
A: The lithium-ion battery can support up to 6000 measurements within an 8-hour period on a single charge, and can be conveniently recharged for continuous use.

Advantages and Disadvantages

One of the main advantages of the Spectrocolorimeter YR05518 – YR05519 is its high precision and repeatability, making it an excellent tool for industries requiring stringent color measurement and quality control. The device’s independence from PC connections adds to its operational convenience. However, its sophisticated technology might present a learning curve for new users, and ongoing calibration is necessary to maintain enhanced performance.

Product Use in the Field

In practical scenarios, the Spectrocolorimeter YR05518 – YR05519 is invaluable for professionals in the plastics, textiles, and paint production sectors. It ensures that color consistency and quality meet international standards through rapid and efficient measurements. Its robust design allows it to withstand industrial environments, providing reliable performance across diverse applications.

Recommendations

To maximize the Spectrocolorimeter’s efficacy, calibrate the device regularly using the white and black calibration cavities provided. Use the protective cover and wrist strap to avoid accidental damages when in use. Employ the quick data search and analysis functions to validate measurement results promptly.

Features

  • 8 mm diameter measurement with a 10° observer angle
  • Full-spectrum LED light source and capacitive touch screen
  • Silicon photodiode array ensures excellent display precision and repeatability
  • 3 million measurement capacity over 5 years of light source life
  • Data storage capacity for 500 standards and 10,000 samples

Technical Specifications

Model YR05518 YR05519
Optical Geometry D/8(diffused illumination, 8-degree viewing angle) D/8(diffused illumination, 8-degree viewing angle)
SCI Mode SCI Mode
Comply to CIE No.15,GB/T 3978,GB 2893,GB/T 18833,ISO7724-1,ASTM E1164,DIN5033 Teil7 Comply to CIE No.15,GB/T 3978,GB 2893,GB/T 18833,ISO7724-1,ASTM E1164,DIN5033 Teil7
Characteristic Φ8mm apertures, Used for accurate color measurement and quality control in plastic electronics, paint and ink, textile and garment printing and dyeing, printing, ceramics and other industries Φ8mm apertures, Used for accurate color measurement and quality control in plastic electronics, paint and ink, textile and garment printing and dyeing, printing, ceramics and other industries
Integrating Sphere Size Φ40mm Φ40mm
Light Source Combined full spectrum LED light source Combined full spectrum LED light source
Spectrophotometric Mode Flat Grating Flat Grating
Senso Silicon photodiode array (double row 24 groups) Silicon photodiode array (double row 24 groups)
Wavelength Range 400~700nm 400~700nm
Wavelength Interval / /
Semiband Width 10nm 10nm
Measured Reflectance Range L:0~100; reflectivity:The reflectivity can be measured at 3 specific wavelengths specified by the user (default: 440nm, 550nm, 600nm) L:0~100; reflectivity:The reflectivity can be measured at 1 specific wavelengths specified by the user (default: 550nm)
Measuring Aperture Φ8mm Φ8mm
Specular Component SCI SCI
Color Space CIE LAB,XYZ,Yxy,LCh CIE LAB,XYZ,Yxy,LCh
Color Difference Formula ΔE*ab,ΔE*00 ΔE*ab,ΔE*00
Other Colorimetric Index / /
Observer Angle 10° 10°
Illuminant D65,A,F2(CWF) D65,A,F2(CWF)
Displayed Data Reflectivity (the user specifies the reflectivity at 3 specific wavelengths), Samples Chromaticity Values, Color Difference Values/Graph, PASS/FAIL Result, Color Simulation, Color Offset Reflectivity (the user specifies the reflectivity at 1 specific wavelengths), Samples Chromaticity Values, Color Difference Values/Graph, PASS/FAIL Result, Color Simulation, Color Offset
Displayed Accuracy Display 0.1, storage 0.01 0.1
Measuring Time About 1.5s About 1.5s
Repeatability Chromaticity value: MAV/SCI, within ΔE*ab 0.08 ( When a white calibration plate is measured 30 times at 5 second intervals after white calibration) Chromaticity value: MAV/SCI, within ΔE*ab 0.1 ( When a white calibration plate is measured 30 times at 5 second intervals after white calibration)
Inter-instrument Error MAV/SCI, Within ΔE*ab 0.4 MAV/SCI, Within ΔE*ab 0.4
(Average for 12 BCRA Series II color tiles) (Average for 12 BCRA Series II color tiles)
Measurement Mode Single Measurement, Average Measurement(2-99times) Single Measurement, Average Measurement(2-99times)
Locating Method Stabilizer cross position Stabilizer cross position
Dimension L*W*H=81X71X214mm L*W*H=81X71X214mm
Weight About 460g About 460g
Battery Li-ion battery, 6000 measurements within 8 hours Li-ion battery, 6000 measurements within 8 hours
Illuminant Life Span 5 years, more than 3 million times measurements 5 years, more than 3 million times measurements
Display 3.5-inch TFT color LCD, Capacitive Touch Screen 3.5-inch TFT color LCD, Capacitive Touch Screen
Data Port USB USB
Data Storage Standard 500 Pcs, Sample 10000 Pcs Standard 500 Pcs, Sample 10000 Pcs
Language Simplified Chinese, English, Traditional Chinese Simplified Chinese, English, Traditional Chinese
Operating Environment 0~40℃, 0~85%RH (no condensing), Altitude < 2000m 0~40℃, 0~85%RH (no condensing), Altitude < 2000m
Storage Environment -20~50℃, 0~85%RH (no condensing) -20~50℃, 0~85%RH (no condensing)
Standard Accessory Power Adapter, USB Cable, User Guide, SQCX Software(Download from office website), White and Black Calibration Cavity, Protective Cover, Wrist strap, 8mm flat aperture Power Adapter, USB Cable, User Guide, White and Black Calibration Cavity, Protective Cover, Wrist strap, 8mm flat aperture
Optional Accessory USB Micro Printer, Powder Test Box USB Micro Printer, Powder Test Box
Notes Technical parameters are only for reference, subject to the actual sale of the product Technical parameters are only for reference, subject to the actual sale of the product

Additional information

Weight 2 kg
Model

YR05518, YR05519
