Description

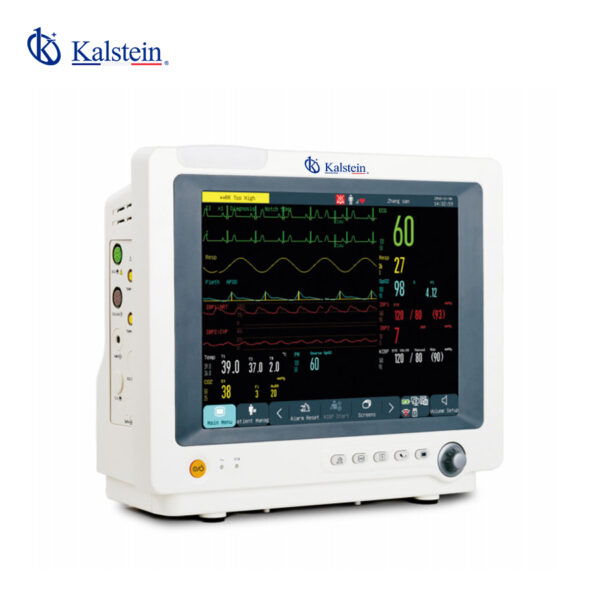

The Bedside Monitor YR02173 is an advanced medical device designed to provide comprehensive monitoring for patients in critical conditions. This device is equipped with a 12.1-inch touch screen display and features a 5-lead ECG, Comen SpO2, NIBP, and heart rate monitoring. Additionally, it supports dual-IBP, EtCO2, AG, ICG, cardiac output, BIS, Nellcor/Masimo SpO2, 3/12-lead ECG, and a thermal recorder. The YR02173 is compatible with both trolley and wall mount installation, making it versatile for various clinical settings.
Price in the Market
The average market price for products similar to the Bedside Monitor YR02173 ranges from $2000 to $2800. This range reflects its advanced features and durable design, ensuring reliable performance and long-term usage.
Frequently Asked Questions
What types of patients can be monitored with the YR02173?
This monitor is suitable for adult, neonatal, and pediatric patients, offering accurate and reliable readings across these categories.
Is the device portable?
Yes, the YR02173 is designed to be portable, allowing it to be used in different settings with the help of its trolley or wall mount options.
Advantages and Disadvantages
Advantages: The Bedside Monitor YR02173 offers a comprehensive range of monitoring capabilities, customizable alarms, and a user-friendly interface. Its portability and dual setup options provide flexibility in placement.
Disadvantages: While feature-rich, the learning curve may be steep for users unfamiliar with advanced monitoring systems.
Use of the Product in the Field
The Bedside Monitor YR02173 is widely used in intensive care units, operating rooms, and emergency departments for continuous monitoring of vital signs. Its ability to record and analyze multiple parameters simultaneously supports clinicians in making informed decisions in critical situations.
Recommendations
To maximize the efficiency of the YR02173, ensure regular calibration and maintenance checks. Familiarize yourself with the device manual to optimize its settings according to patient needs. For purchasing, consider generating an automatic quote through the Kalstein Plus platform for the best deals and support services.
Features
- 12.1 inch touch screen
- 5-lead ECG, RESP, Temp (Single Channel), COMEN SpO2, NIBP, HR
- Dual-IBP, EtCO2, AG, ICG, C.O., BIS, Nellcor/Masimo SpO2, 3/12-lead ECG, Thermal Recorder, Dual-Temp, Suntech NIBP
- Trolley and wall mount compatible
Technical Specifications
Model | YR02173 | |
ECG
|
Lead mode | 5 Leads(RA,LA,LL,RL,V) |
Connection method | I, II, III,AVR,AVL,AVF,V | |
Lead Mode | 3 Leads (RA,LA,LL) | |
Connection method | I, II,III | |
Waveform | 1ch | |
Gain | 1.25, 2.5, 5.0, 10, 20, 40mm/mV, Auto. | |
HR Range | Adult: 15~300bpm | |
Neo/Ped | 15~350bpm | |
Accuracy | ±1% or ±1bpm | |
Resolution | 1bpm | |
Sensitivity | >200(uVp-p) | |
Differential input impedance | ≥5MΩ | |
ST segment Monitoring Range | ||
Measure Range | -2.0~+2.0mV | |
Measure Accuracy | -0.8mV~+0.8mV | |
Heart Rate
|
Measuring range | 15~300bpm |
Accuracy | ±1bpm | |
Resolution | 1bpm | |
Sensitivity | >200UVp-p | |
Respiration
|
Method | Impedance between R-F(RA-LL) |
Differential Input Impedance | >2.5MΩ | |
Measuring Impedance Range | 0.3~3.0 MΩ | |
Base line Impedance Range | 200~4000Ω | |
Bandwidth | 0.1~2.5Hz | |
Respiration Rate | Adult: 2~120BrPM | |
Neo/Ped | 0~150BrPM | |
Resolution | 1 BrPM | |
Accuracy | ±2 BrPM | |
Alarm | 10~40S | |
NIBP
|
Method | Oscillometric |
Mode | Manual/Auto/STAT | |
Measuring Interval in AUTO Mode | 1,2,3,4,5,10,15,30,60,90,120,180,240,480(Min) | |
Measuring Period in STAT Mode | 5 Min | |
Pulse Rate Range | 40~240bpm | |
Alarm Type | SYS, DIA, MEAN | |
Resolution | ||
Pressure | 1mmHg | |
Accuracy | Maximum Mean error: 5mmHg | |
Maximum Standard deviation | 8mmHg | |
SPO2
|
Display | Number of SPO2,waveform of capacity,Pulse |
Measuring range | 0~100% | |
Resolution | 1% | |
Accuracy | 60~100% (±2%) | |
Alarm system | Audio-video alarm | |
Pulse rate range | 0~300bpm | |
TEMP
|
Channel | 2 |
Measuring and Alarm Range | 0~50ºC | |
Resolution | 0.1ºC | |
Accuracy | 0.1ºC | |
Actualization interval | About 1 Second. | |
Average Time Constant | <10 Second. |
