Description

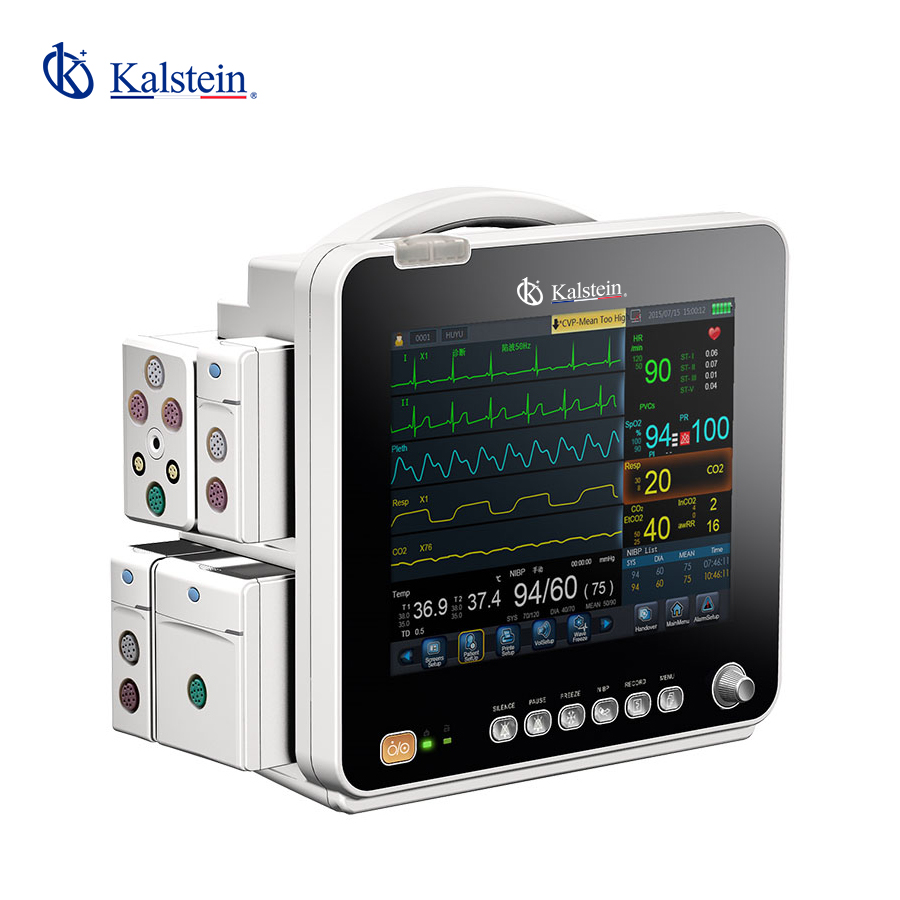

The Patient Monitor YR02175 is a state-of-the-art medical device equipped with a 12.1-inch LCD screen designed for use in Operating Theaters (OT) and Intensive Care Units (ICU). This modular patient monitor provides comprehensive monitoring with standard parameters including ECG, SPO2, TEMP, NIBP, RESP, and PR/HR. It features a 5-lead ECG configuration, dual temperature channels, and advanced measurement capabilities, ensuring accurate health monitoring in critical care settings.
Market Price
In the competitive landscape of patient monitors, the average market price ranges from $3900 to $4500. This pricing reflects the high precision and reliability that the Patient Monitor YR02175 offers to healthcare providers. However, prices may vary based on supplier and any additional features or extended service packages offered. Request a quote today via our Kalstein Plus platform for more precise pricing tailored to your needs.
Frequently Asked Questions
What is the typical use environment for the Patient Monitor YR02175? This patient monitor is ideal for use in both Operating Theaters and Intensive Care Units due to its comprehensive monitoring capabilities.
How often does the monitor need calibration? Regular calibration is advised annually to ensure continued accuracy.
Advantages and Disadvantages
The Patient Monitor YR02175 offers several advantages, including its modular configuration, which allows customizable monitoring settings and its high-resolution display, ensuring clear visibility of patient data. However, its advanced features may require additional staff training for optimal use.
Product Usage in the Field
In real-world scenarios, the Patient Monitor YR02175 offers invaluable support in intensive care by providing real-time monitoring of crucial physiological parameters. It empowers healthcare providers to make timely and informed decisions, improving patient outcomes significantly. Its portable design also adds to its versatility in various clinical settings.
Recommendations
For best performance, it is recommended to regularly update the software of the Patient Monitor YR02175 and adhere to maintenance schedules provided by the manufacturer. Additionally, ensure all staff are properly trained to utilize all features effectively.
Features
- 12.1 inch LCD screen
- Full Modular Parameter
- Suitable for OT and ICU
- 5-lead ECG configuration
- Dual-Temp
- Comprehensive monitoring parameters: ECG, SPO2, TEMP, NIBP, RESP, PR/HR
Technical Specifications
Model | YR02175 | |
ECG | Lead mode | 5 Leads(RA,LA,LL,RL,V) |
Connection method | I, II, III,AVR,AVL,AVF,V | |
Lead Mode | 3 Leads (RA,LA,LL) | |
Connection method | I, II,III | |
Waveform | 1ch | |
Gain | x250, x500, x1000, x2000 | |
HR Range | Adult: 15~300bpm | |
Neo/Ped | 15~350bpm | |
Accuracy | ±1% or ±1bpm | |
Resolution | 1bpm | |
Sensitivity | >200(uVp-p) | |
Differential input impedance | ≥5MΩ | |
ST segment Monitoring Range | ||
Measure Range | -2.0~+2.0mV | |
Measure Accuracy | -0.8mV~+0.8mV | |
Heart Rate | Measuring range | 25~300bpm |
Accuracy | ±1bpm | |
Resolution | 1bpm | |
Sensitivity | >200UVp-p | |
Respiration | Method | Impedance between R-F(RA-LL) |
Differential Input Impedance | >2.0MΩ | |
Measuring Impedance Range | 0.3~3.0 MΩ | |
Base line Impedance Range | 200~4000Ω | |
Bandwidth | 0.1~2.5Hz | |
Resp. Rate | Adult: 2~120BrPM | |
Neo/Ped | 0~150BrPM | |
Resolution | 1 BrPM | |
Accuracy | ±2 BrPM | |
Alarm | 10~40S | |
NIBP | Method | Oscillometric |
Mode | Manual/Auto/STAT | |
Measuring Interval in AUTO Mode | 1,2,3,4,5,10,15,30,60,90,120,180,240,480(Min) | |
Measuring Period in STAT Mode | 5 Min | |
Pulse Rate Range | 40~240bpm | |
Alarm Type | SYS, DIA, MEAN | |
Resolution | ||
Pressure | 1mmHg | |
Accuracy | Maximum Mean error: 5mmHg | |
Maximum Standard deviation | 8mmHg | |
SPO2 | Display | Number of SPO2,waveform of capacity,Pulse |
Measuring range | 0~100% | |
Resolution | 1% | |
Accuracy | 60~100% (±2%) | |
Alarm system | Audio-video alarm | |
Pulse rate range | 0~300bpm | |
TEMP | Channel | 2 |
Measuring and Alarm Range | 0~50ºC | |
Resolution | 0.1ºC | |
Accuracy | 0.1ºC | |
Actualization interval | about 1 Second | |
Average Time Constant | <10 Second |
