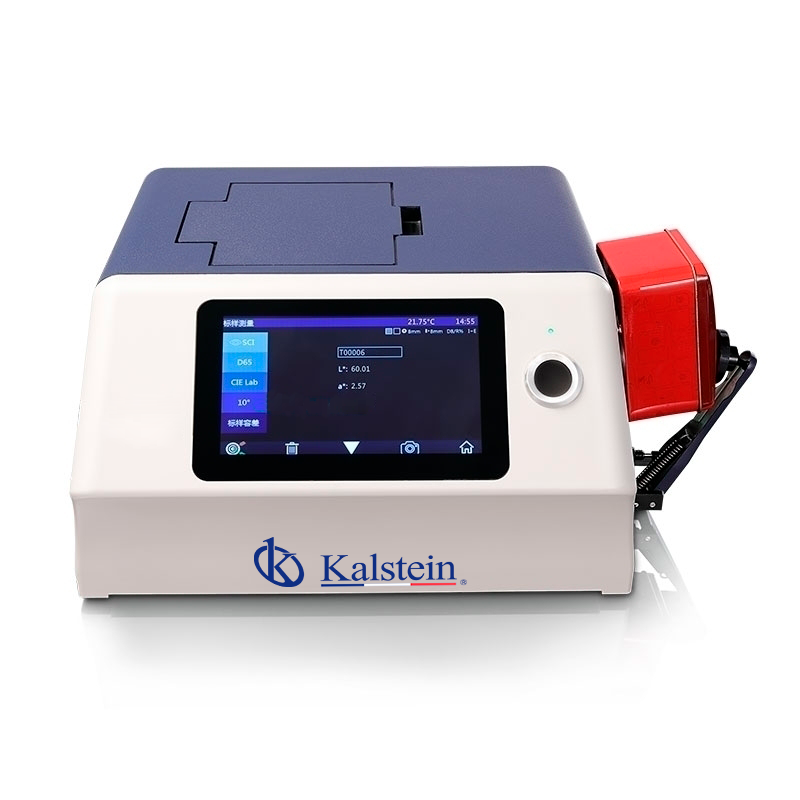

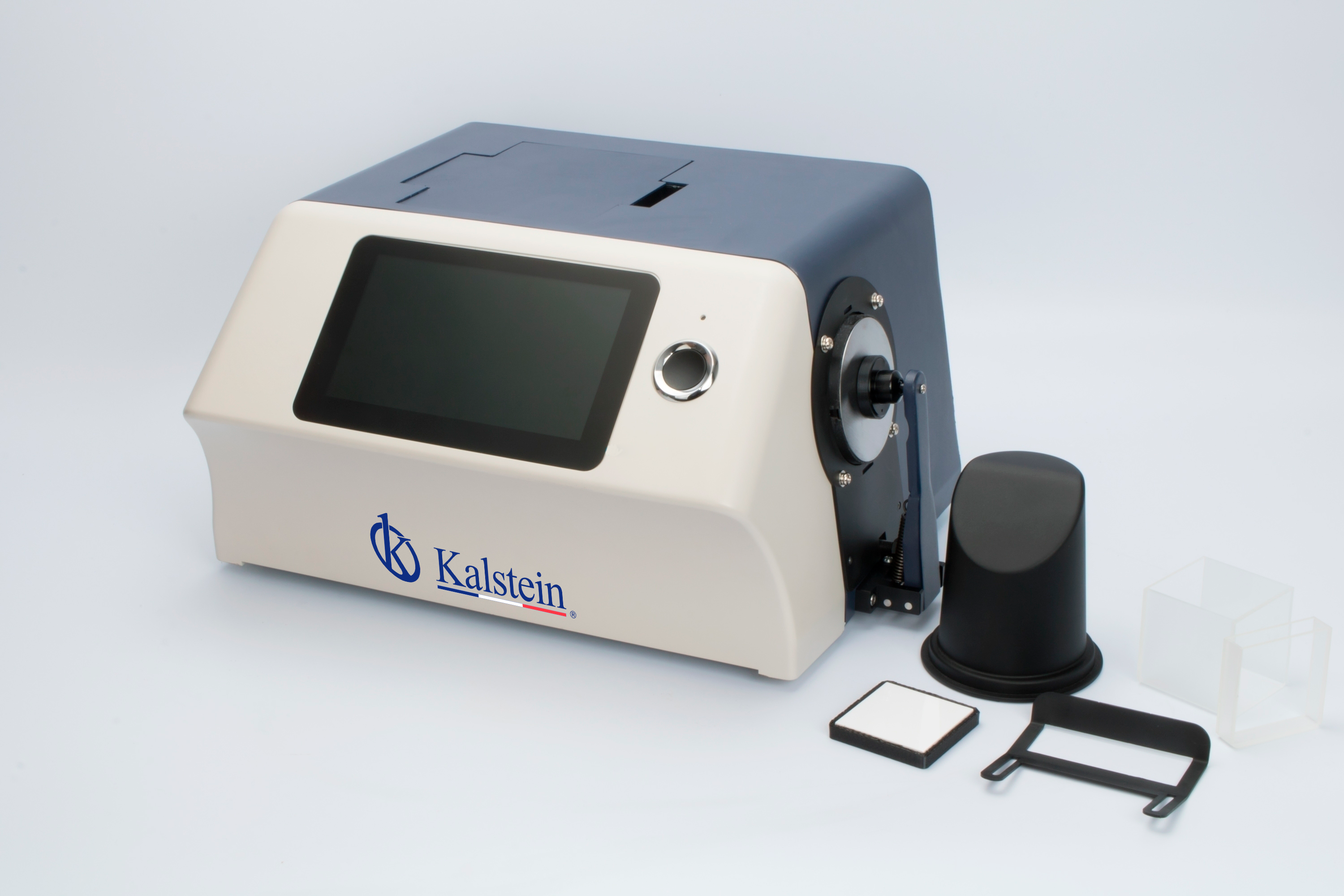

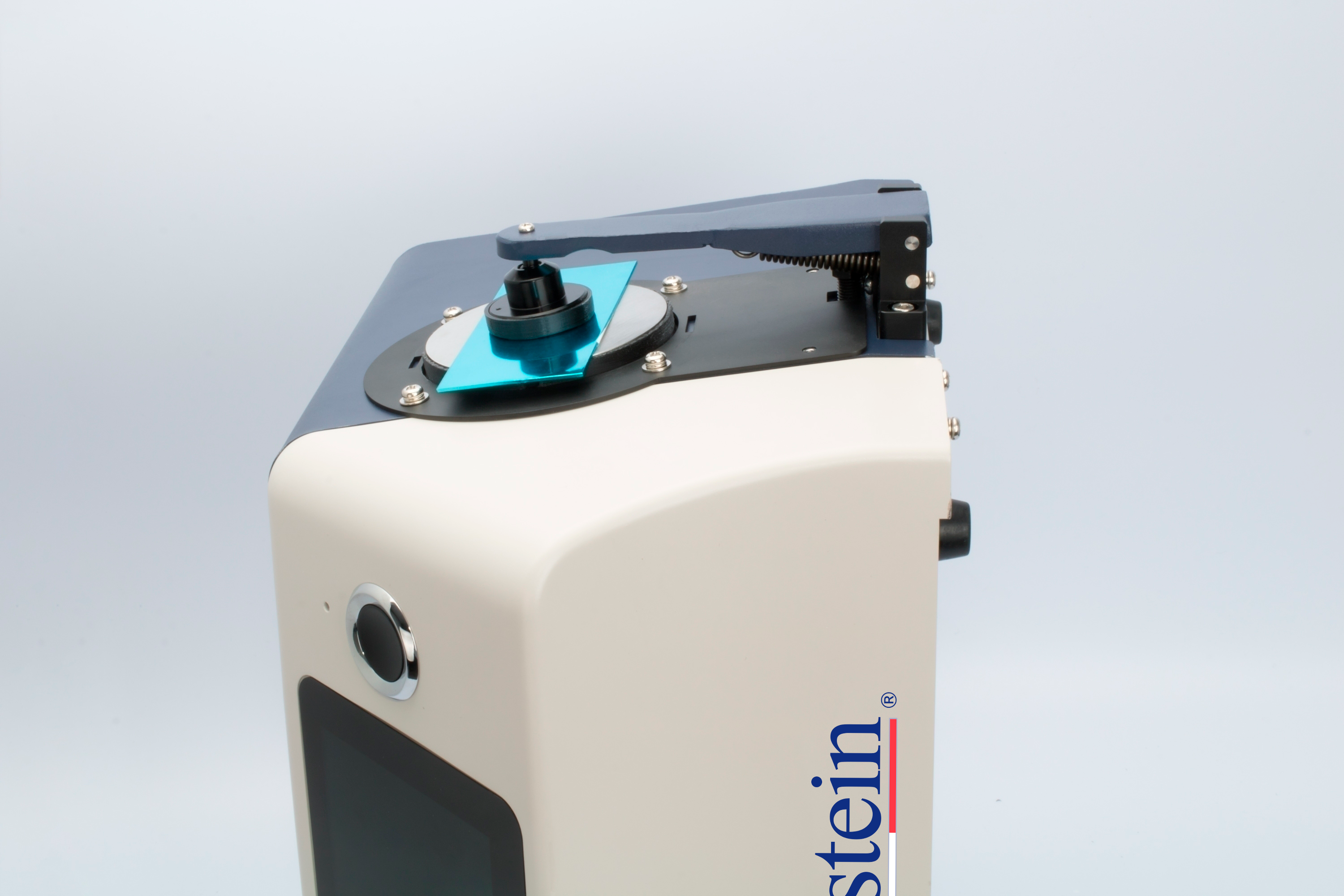

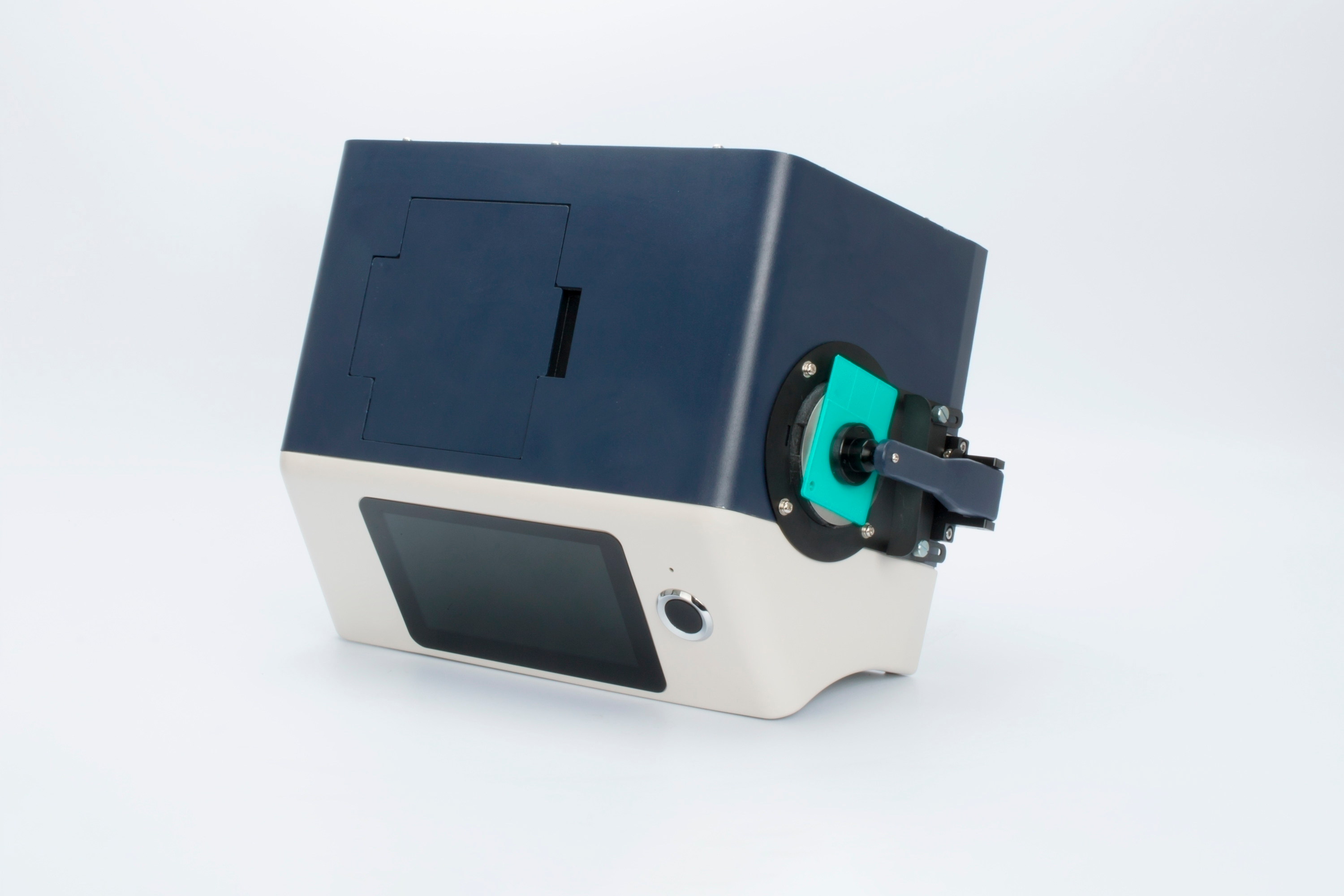

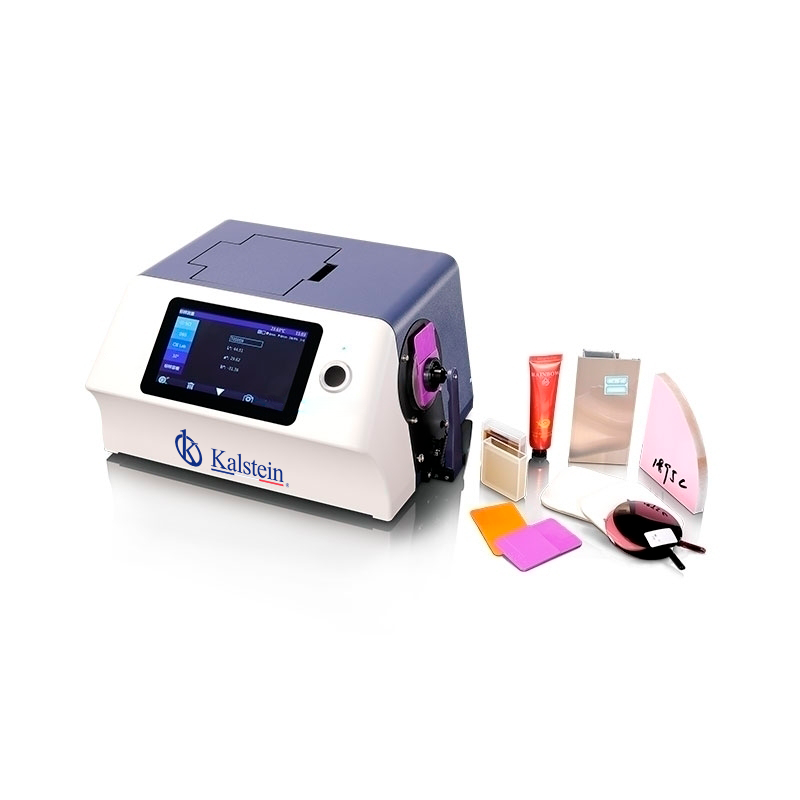

Pulsed Xenon lamp Benchtop Spectrophotometer YR05474

The Pulsed Xenon Lamp Benchtop Spectrophotometer YR05474 is a cutting-edge device developed by Kalstein, designed to offer unrivaled precision in color analysis. It features a 7-inch TFT capacitive touchscreen that facilitates seamless interaction and boasts an independent intellectual property development. This spectrophotometer is equipped with high-quality hardware including a concave grating and a robust xenon lamp that ensures long-lasting performance. Whether for reflective or transmissive spectrum analysis, the YR05474 provides accurate Lab values, ideal for crafting precise color formulas essential in various R&D and laboratory settings. The versatility in measuring apertures and the built-in temperature sensor enhance its accuracy, making it an indispensable tool for industries ranging from plastics to cosmetics.

Market Price

In the realm of colorimetric analysis, the Pulsed Xenon Lamp Benchtop Spectrophotometer YR05474 stands as a premium choice, with market prices for such advanced technology generally ranging from $14,500 to $15,000. This price range reflects the combination of high-performance features and the reliability that it offers for precise color measurement in various industrial applications.

Frequently Asked Questions

• What industries benefit the most from the YR05474? This spectrophotometer is versatile, serving sectors like plastics, electronics, printing, and automotive among others.
• Is there any specialized software required? Yes, it comes with powerful PC software that enhances its functionality for detailed analysis and reporting.
• What type of maintenance is required? Regular calibration and proper storage conditions are recommended to maintain its precision and longevity.

Advantages and Disadvantages

This spectrophotometer offers numerous advantages such as high precision, versatility in application, and a user-friendly interface. Additionally, its compatibility with various illuminants and measurement modes makes it adaptable to different needs. However, its primary disadvantage could be the initial investment cost, which might be a consideration for smaller enterprises.

Product Use in the Field

In practical scenarios, the YR05474 is highly effective in performing color quality control tests, ensuring consistency and accuracy in product hues. It is extensively used in labs for developing color formulations, ensuring quality assurance in production lines, and conducting research that requires meticulous colorimetric readings.

Recommendations

To optimize the use of the YR05474, regularly update its software and perform timely calibrations to maintain its precision. It is also advisable to store the spectrophotometer in environments with controlled temperature and humidity to prolong its operational life. For businesses aiming to elevate their color quality control, investing in training for the team on device usage maximizes the potential of this spectrophotometer.

Features

• 7" TFT Color Capacitive Touchscreen Display
• Bluetooth 2.1; Concave Grating
• Double Array 256 Image Element CMOS Sensor
• Accurate Lab Value Calculation
• Customizable Measurement Apertures
• Built-in Temperature Sensor
• Wavelength Range of 360nm – 780nm
• Multiple Measurement Modes
• Large Data Storage Capacity
• Integrated Camera for Locating

Technical Specifications

Model	YR05474
Optical Geometry	Reflectance: d/8 (SCI⪰ Include UV/Exclude UV)
	Transmittance: d/0 (SCI⪰ Include UV/Exclude UV); Haze(ASTM D1003)
	Conforms to CIE No.15, GB/T 3978, GB 2893, GB/T 18833, ISO7724/1, ASTM E1164, DIN5033 Teil7
Integrating Sphere Size	Φ 154mm
Light Source Device	360nm-780nm Xenon Lamp, 400nm cut-off Xenon Lamp,420nm cut-off Xenon Lamp,460nm cut-off Xenon Lamp
Spectrophotometric Mode	Concave Grating
Sensor	256 Image Element Double Array CMOS Image Sensor
Wavelength Range	360-780nm
Wavelength Pitch	10nm
Semiband Width	5nm
Reflectance Range	0~200%
Measuring Aperture	Reflective: Φ30mm/Φ25.4mm, Φ18mm/Φ15mm, Φ10mm/Φ8mm, Φ6mm/Φ4mm;
	Transmissive: Φ30mm/Φ25mm; Remark: 1. Automatic identification of switch caliber 2. Customized Configuration caliber and lens position
Specular Component	Reflectance: SCI&SCE
	Transmittance: SCI&SCE
Color Space	CIE Lab, XYZ, Yxy, LCh, CIE LUV, Hunter LAB, Munsell, s-RGB, HunterLab, DIN, βxy
Color Difference Formula	ΔE*ab, ΔE*uv, ΔE*94, ΔE*cmc(2:1), ΔE*cmc(1:1), ΔE*00v, ΔE(Hunter), DIN ΔE99
Colorimetric Index	WI (ASTM E313, CIE/ISO, AATCC, Hunter),
	YI (ASTM D1925, ASTM 313),
	MI (Metamerism Index),
	Staining Fastness, Color Fastness, Color Strength, Opacity,
	Gardner Index, Pt-Co Index, 555 Index, Haze(ASTM D1003)
Observer Angle	2° & 10°
Illuminants	D65, A, C, UV, D50, D55, D75, F1, F2, F3, F4, F5, F6, F7, F8, F9, F10, F11, F12
Displayed Data	Spectrogram/Values, Chromaticity Values, Color Difference Values/Graph, Pass/Fail Result, Color Offset
Measuring Time	About 2.4s (Measure SCI & SCE about 5s)
Repeatability	Spectral reflectance: Φ25.4mm/SCI, Standard deviation within 0.06% (400 nm to 700 nm: within 0.05%)
	Chromaticity value: Φ25.4mm/SCI, Standard deviation within ΔE*ab 0.012 (When a white calibration plate is measured 30 times at 5 second intervals after white calibration)
	Spectral Transmittance: Φ25.4mm/SCI, Standard deviation within 0.06% (400 nm to 700 nm: within 0.06%)
	Chromaticity value: Φ25.4mm/SCI, Standard deviation within ΔE*ab 0.015 (When a white calibration plate is measured 30 times at 5 second intervals after white calibration)
Inter-instrument Error	Φ25.4mm/SCI, Within ΔE*ab 0.12
	(Average for 12 BCRA Series II color tiles)
Size	370×300×200mm
Weight	About 9.6kg
Power Supply	DC 24V, 3A Power Adapter
Light Source Device Life	5 years, more than 3 million times measurements.
Display	7" TFT Capacitive Screen-touch Display
Data Port	USB & Bluetooth & Print serial port
Data Storage	Standard 5000 Pcs, Sample 40000 Pcs
Language	Simplified Chinese, Traditional Chinese, English, (Optional Customized German, French and Spanish)
Working Environment	Temperature: 0~40℃; Humidity: 0~85% (No Condensation)
Storage Environment	Temperature: -20~50℃; Humidity: 0~85% (No Condensation)

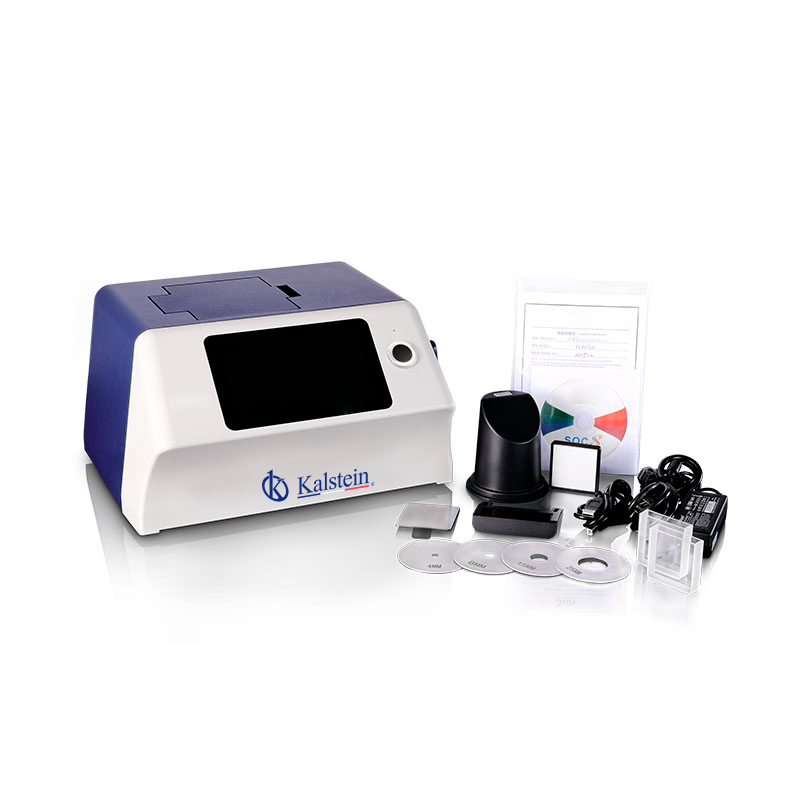

Standard Accessory	Power Adapter, User Guide, CD Disk(PC Software), USB cable, Standard Calibration Board, Black Calibration Cavity, Transmission black baffle, Sample holder, 25.4 caliber, 15 caliber, 8 caliber, 4 caliber,Transmissive Test Component
Optional Accessory	Micro-printer, Micro Aperture(4mm) transmission test clamp component, Instrument inversion components
Notes: The specifications are subject to change without notice.
